| Product ID | S310-11KS-C |
| CPU | Intel Celeron 3965U Processor 2.20 GHz 2 Cores / 2 Threads 14nm, 15w TDP, 2MB SmartCache |
| Chipset | SoC |
| Memory | 2 x DDR4 SODIMM Slots 2133/2400 MHz, Non-ECC Unbuffered Supports up to 32GB |
| Video | Intel HD Graphics 610 300 - 900 MHz DisplayPort, HDMI |
| Audio | Realtek ALC283 |
| Storage Technology | SATA3 6Gb/s |
| Connectivity | 1 x Intel I219LM GbE LAN 1 x Intel I211AT GBE LAN |
| Expansion Slots | 1 x Mini PCI-E slot (USB/PCIe/SATA) 1 x M.2 2230 E Key slot (PCIe/USB) |

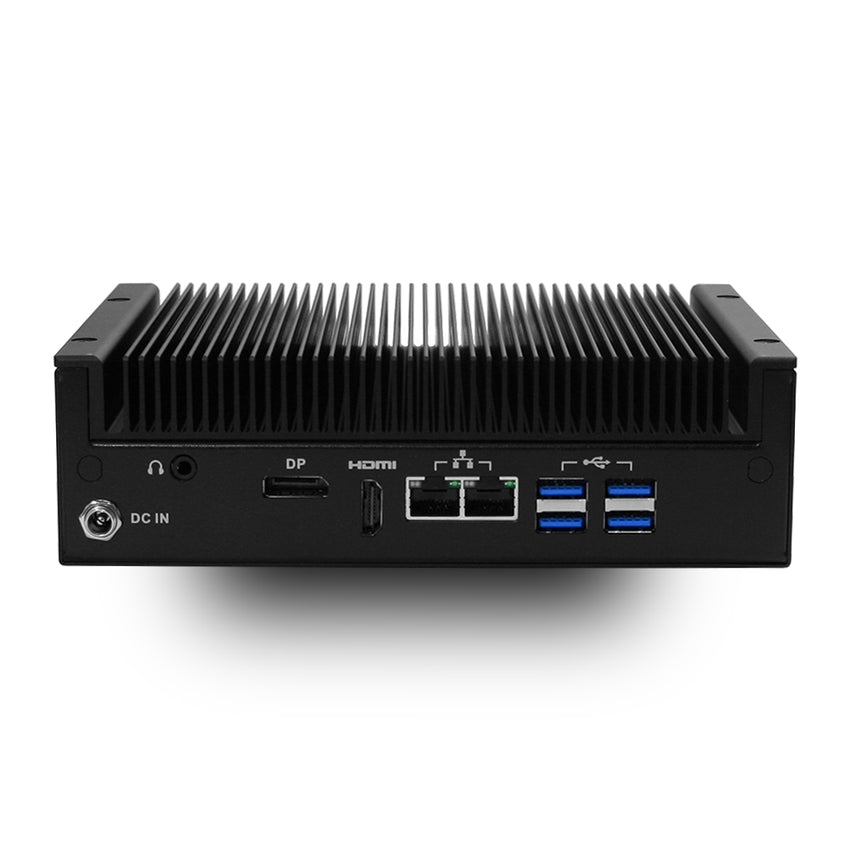

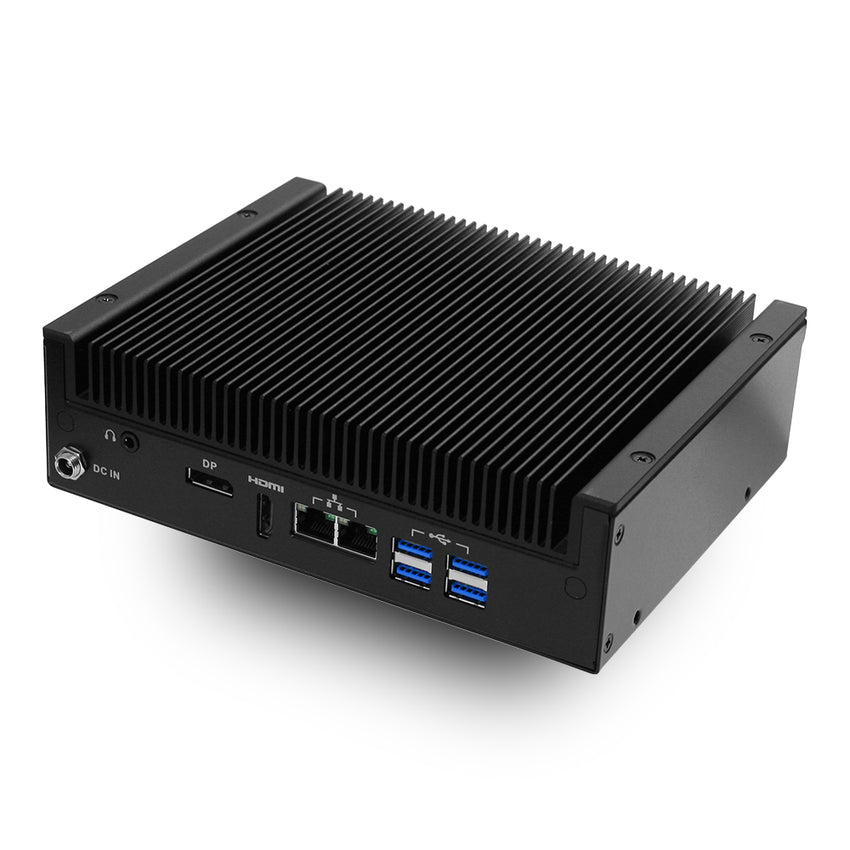

| Rear I/O | 1 x DC-IN 1 x Audio I/O 1 x DisplayPort 1 x HDMI 2 x RJ45 GbE LAN 4 x USB 3.0 |

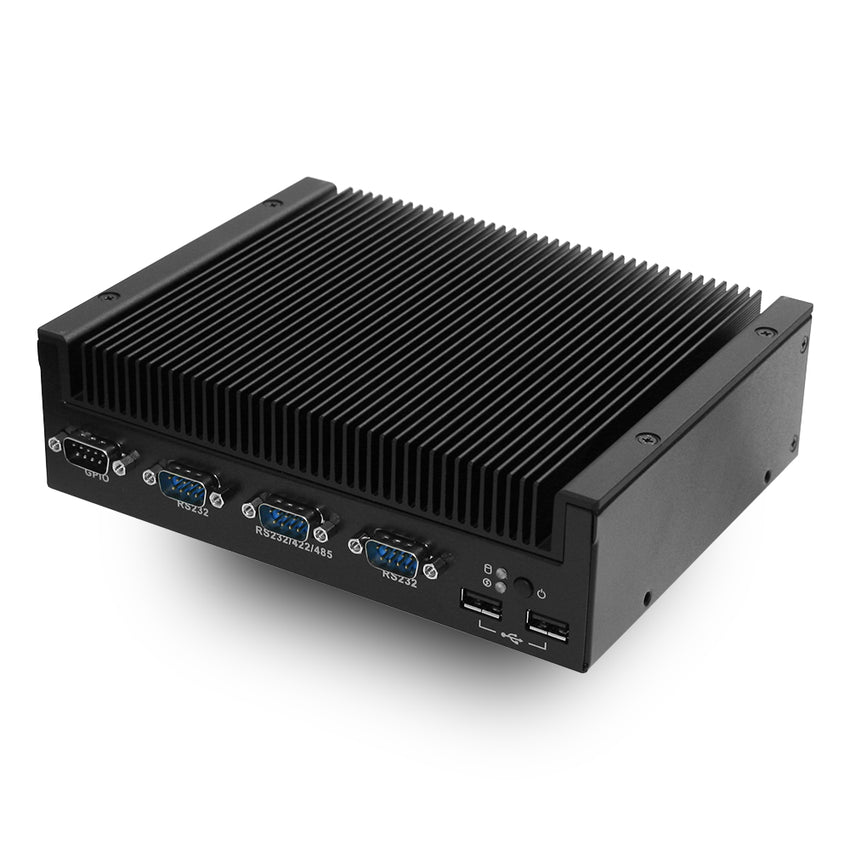

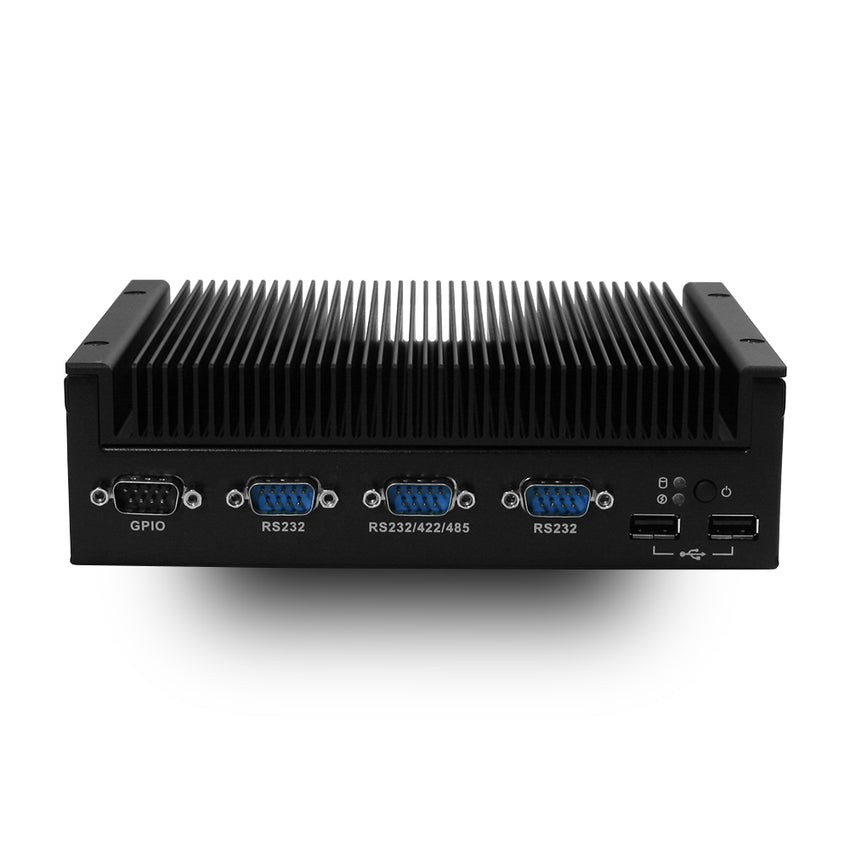

| Front Panel I/O | 1 x GPIO 2 x COM Ports (RS232) 1 x COM Port (RS232/422/485) 2 x Status LED (HDD, Power) 1 x Power Button 2 x USB 2.0 |
| Drive Support | 1 x 2.5" HDD/SSD 1 x mSATA |
| Power Supply | Wide Input 8-24V DC-IN Alternative 8-24V Terminal Block Connectivity 19V 65W AC-DC Adapter |
| Case Dimensions | 3.5" SBC Form Factor 189 x 147.4 x 55mm 7.4" x 5.8" x 2.2" (in inches) |
| Mounting | Wall mount/VESA Brackets |
| Environmental | Operating Temperature: 0 - 40°C with 0.7m/s Air Flow Operating Humidity: 10% - 90% (non-condensing) Vibration resistance: 5Hz - 500Hz/2Grms/3Axis (non-operating) Shock Resistance: 120G, 2ms Duration (non-operating) |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: S310-11KS-C
