Manufacturer	ASUS
Product ID
Model Name	RUC-1000G
CPU	Intel Core Ultra 9 285T 8 P-Cores / 16 E-Cores / 24 Threads 1.2 - 5.4GHz 35W - 112W TDP, 36 MB Intel Smart Cache Intel Deep Learning Boost
Chipset	Intel W880
Memory	2 x DDR5 SODIMM Memory ECC/Non-ECC Maximum 64 GB Capacity 6400 MHz
Video	Intel Graphics 300 MHz - 2 GHz 8 Peak TOPS (Int8) 4 Xe-Cores HDMI Max Resolution: 4096x2160@30Hz DisplayPort Max Resolution: 4096x2160@60Hz
Audio	1 x Mic-In 1 x Line Out
Storage Technology	2 x 2.5" SATA Drive Bays (Supports RAID 0/1) 1 x M.2 2280 slot (PCI-E 4.0 x4)
Connectivity	1 x Marvell AQC113 10G LAN 2 x Intel I226-IT 2.5GbE LAN (Supports Intel vPro/AMT)
Expansion Slots	2 x PCI-E 5.0 x16 slots (1 x PCIe x16 or 2 x PCIe x8 Signal, Supports up to 600 Watts)  1 x PCI-E 3.0 x4 slot 1 x M.2 2230 slot (PCI-E x1/USB 2.0) 1 x M.2 3042/3052 (PCIe x1/USB 3.2 Gen1/USB 2.0) with Dual Nano SIM slots  1 x M.2 3042/3052 slot (PCIe x1/USB 3.2 Gen1/USB 2.0)

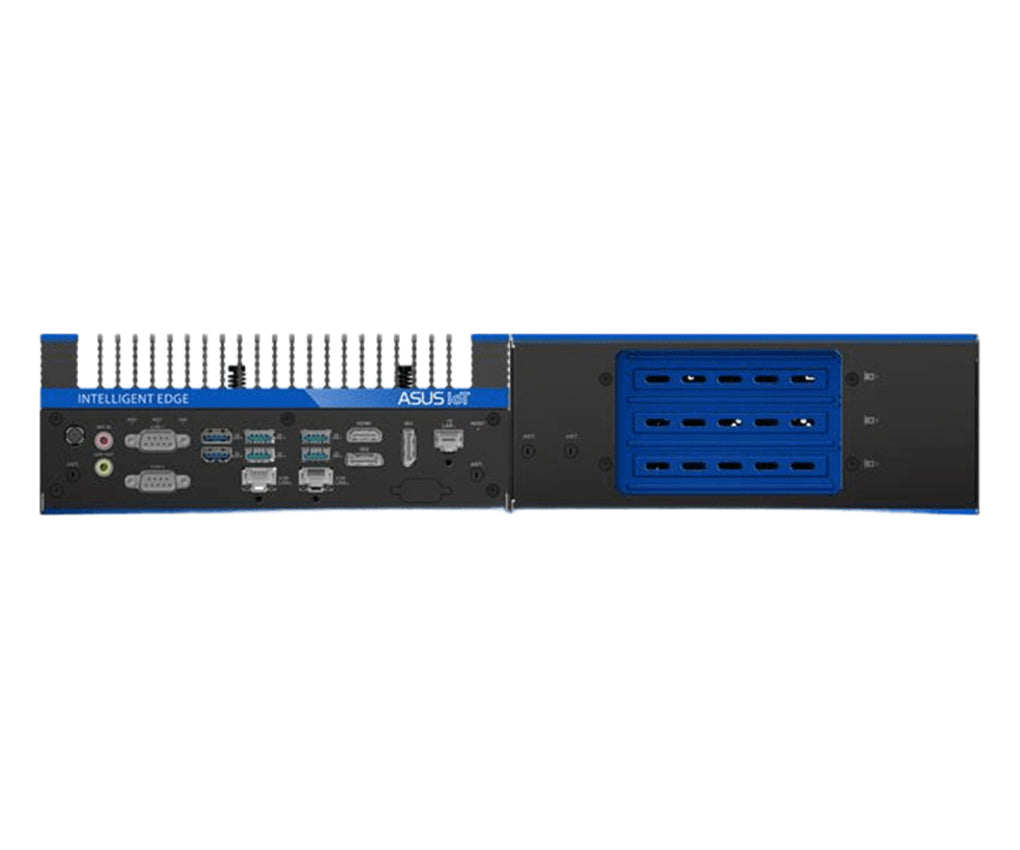

Rear Panel I/O	4 x COM (RS232) 4 x USB 3.2 (Gen2) 1 x Remote Switch 1 x 8V-48V DC-IN
Front Panel I/O	1 x Power Button with LED 2 x Audio I/O 1 x COM (RS232/422/485, 5V/12V Power Support) 1 x COM (RS232/422/485) 6 x USB 3.2 (Gen2) 2 x RJ45 2.5GbE LAN 1 x HDMI 2 x DisplayPort 1 x RJ45 10G LAN
Drive Support	1 x 2.5" SATA Drive Bay 1 x M.2 2280 slot (PCI-E 4.0 x4)
TPM	dTPM v2.0 (Onboard)
OS Support	Windows 11 Linux (Support by request)
Power Supply	8V - 48V DC-IN Built-In Ignition Power Control
Case Dimensions	440 x 488.9 x 85mm 17.3" x 19.25" x 3.3" (in inches)
Mounting	Wallmount
Environmental	Operating Temperature: -25°C to 60°C (-13°F to 140°F) Non-Operating Temperature: -40°C to 85°C (-4°F to 185°F) Operating Humidity: 10% to 95% (non-condensing) Vibration:MIL-STD 810H Method 514.8, Category 4 Shock: MIL-STD 810H Method 516.8, Procedure I, Table 516.6-ll; 20 G 11ms
Compliance	CE, FCC, BSMI CE-LVD, CB, BSMI
Warranty	1-Year Warranty on Parts and Labor
