| Manufacturer |
ASUS |
| Product ID |
RS720A-E11-WOCPU019Z |
| Model Name |

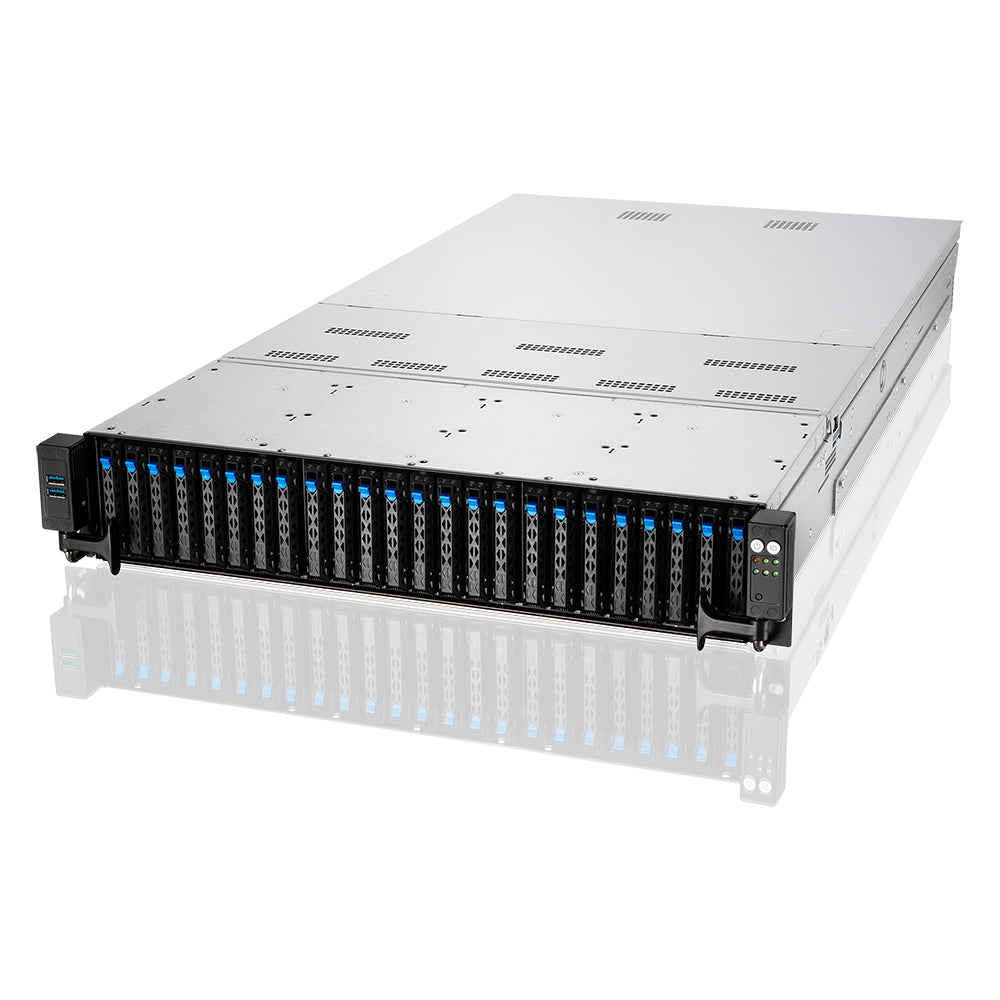

RS720A-E11-RS24U |
| CPU |
Supports 2 x AMD EPYC 7003 Series Processors
Socket SP3 (LGA 4094)
Max TDP 280W |
| Chipset |
SoC |
| Memory |
32 x DDR4 DIMM slots (16 per CPU)
Supports up to 2TB RDIMM
Supports up to 4TB LRDIMM
3200/2933 MHz
8-Channel Per CPU
|
| Video |
Aspeed AST2600 with 64MB VRAM |
| Storage Technology |
8 x SATA3 6Gb/s Ports
2 x M.2: SATA and PCIe Mode
|
| Connectivity |
4 x Intel i350-AM4 GbE LAN
1 x Management LAN (Onboard ASUS ASMB10-iKVM)
|
| Expansion |
1 x PCI-E 4.0 x16 slot (FHFL) or 2 x PCI-E 4.0 x8 slots
1 x PCI-E 4.0 x16 slot (FHFL) or OCP 3.0 or 2 x PCI-E 4.0 x8 slots
2 x PCI-E 4.0 x16 slots (FHFL) or 4 x PCI-E 4.0 x8 slots
1 x PCI-E 4.0 x16 slot (LP) (Shared with M.2 NVMe)
Note: Low Profile slot will operate at x8 speeds if M.2 NVMe (CPU2) is occupied |
| Rear I/O |
1 x Port 80 LED (Q-Code)
1 x VGA
1 x RJ45 Management LAN
2 x USB 3.2 (Gen1)
|
| Front Panel I/O |
2 x USB 3.2 (Gen1)
1 x Power Switch w/ LED
1 x Reset Switch
1 x Location Switch w/ LED
1 x HDD Access LED
1 x Message LED LAN 1-4 LED (on NIC Module)
|
| Drive Support |
24 x 2.5" NVMe/SATA Drive Bays
2 x M.2 22110/2280/2260 slots (SATA or NVMe)
|
| Power Supply |
1+1 Redundant 1600W 80 PLUS Platinum Power Supply
100-127/200-240Vac, 9.4A/4.72A, 50-60Hz Class I
240Vdc, 4.6A (Only for China)
|
| Cooling |
4 x Middle Cooling Fans
|
| Case Dimensions |
2U Form Factor
33.07" x 17.68" x 3.47"
840mm x 449mm x 88.1mm |
| Environmental |
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Non-operating Humidty: 20% to 95% (non-condensing) |
| Warranty |
1 Year Manufacturer's Limited Warranty |
