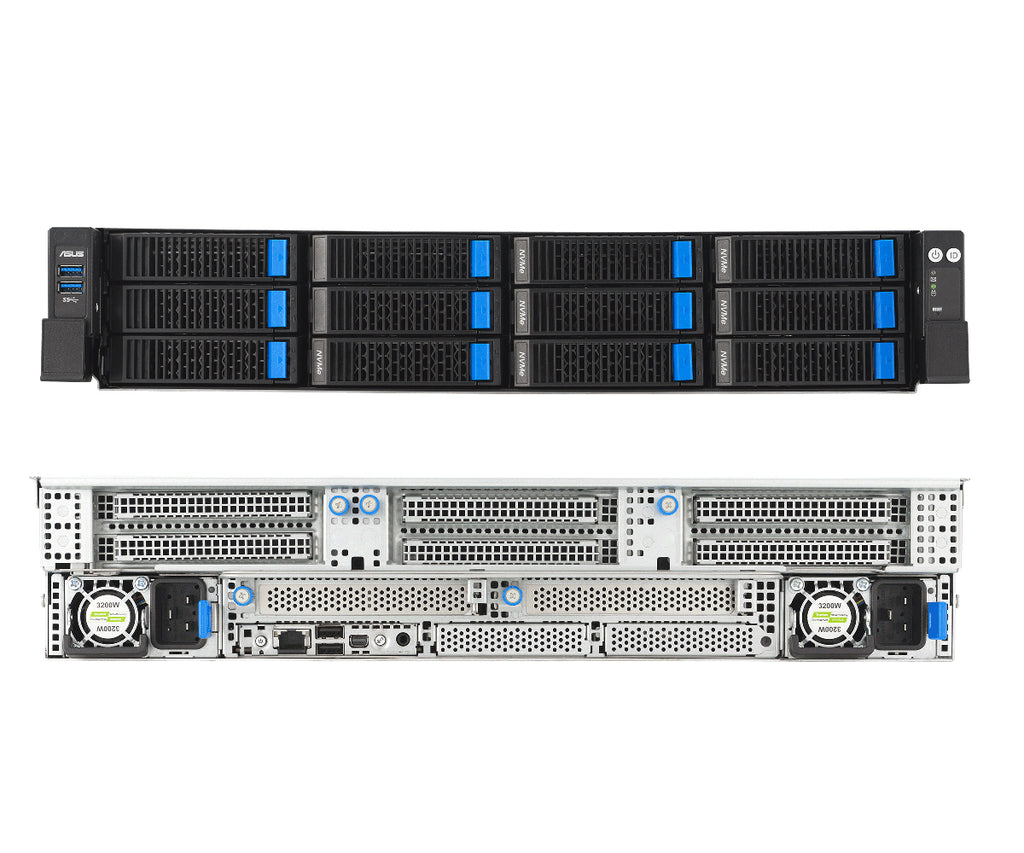

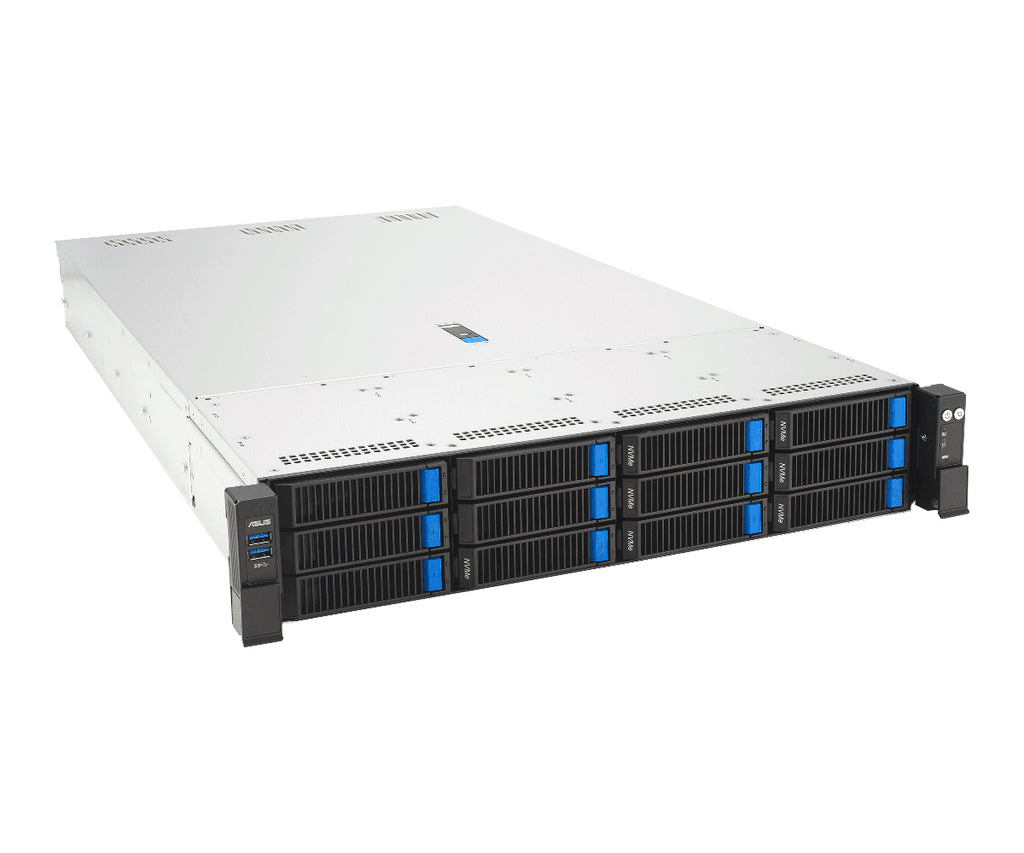

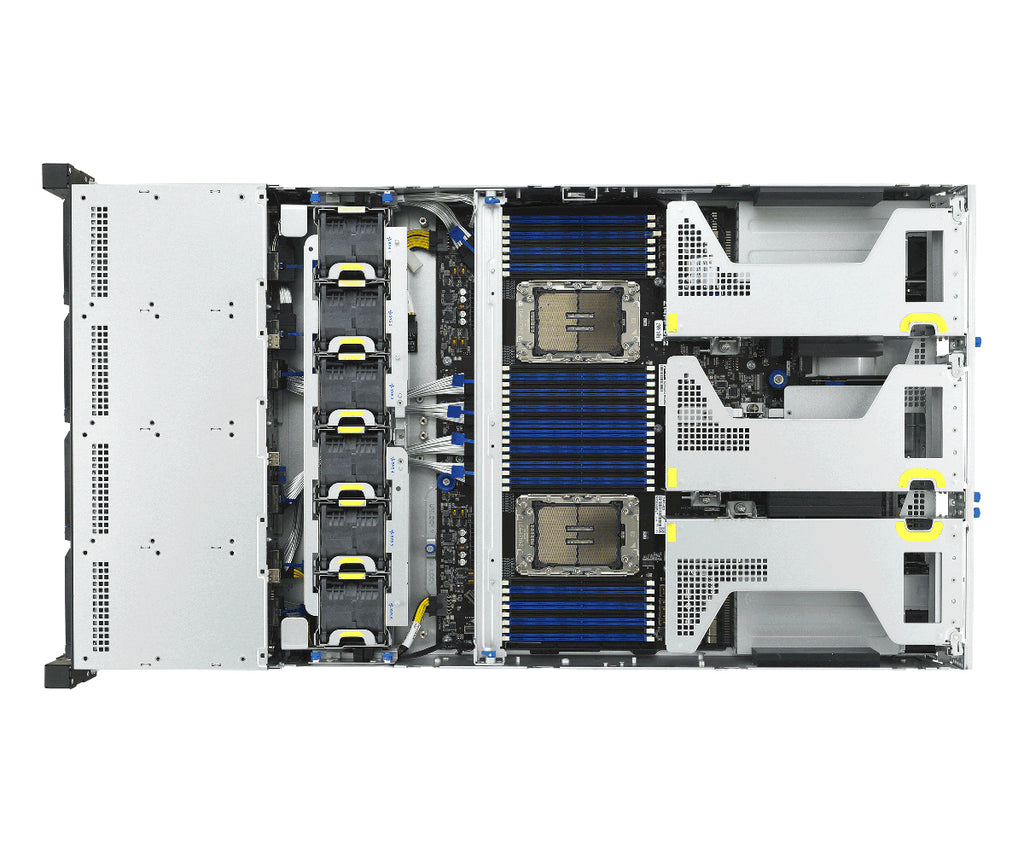

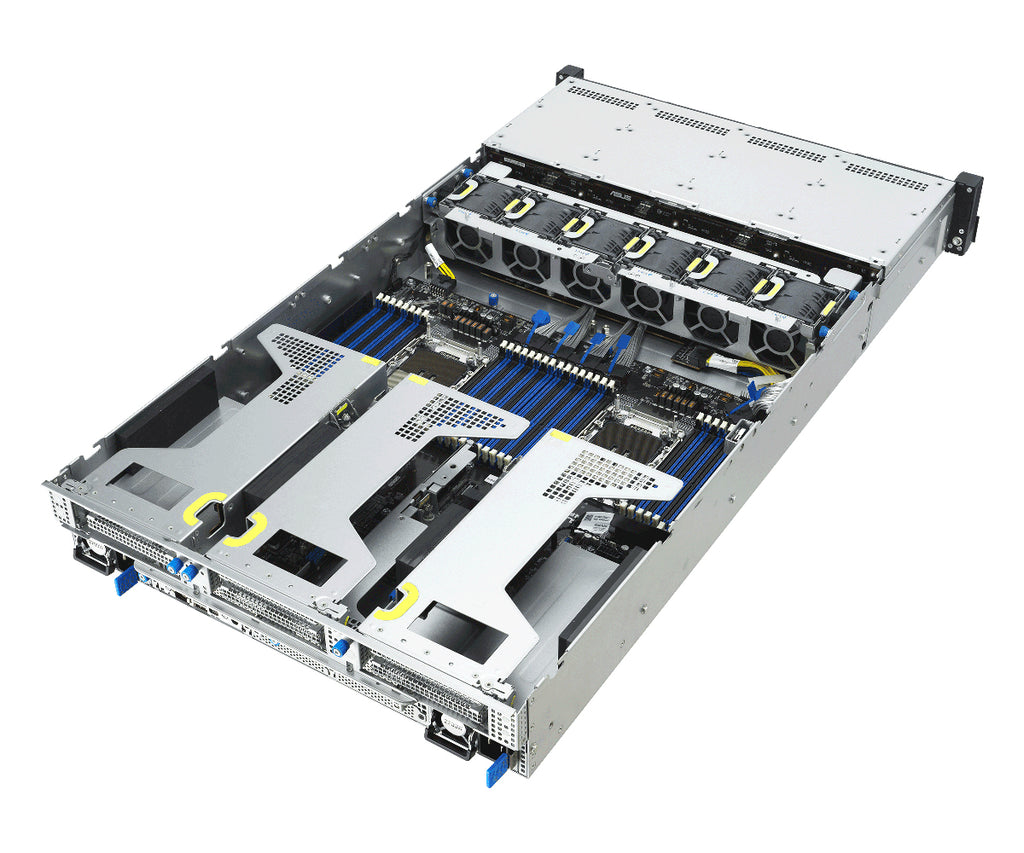

Manufacturer | ASUS |
Product ID | RS720-E12-RS12U-27KW10G |
Model Number | RS720-E12-RS12U |
CPU | Supports 2 x Intel Xeon 6 Processors Socket LGA 4710 |
Chipset | SoC |
Memory | 32 x DDR5 DIMM slots (16 per CPU) Maximum up to 4TB Capacity 5600/6400 RDIMM (1DPC/2DPC) 8000 MCR RDIMM (1DPC) 8-Channel per CPU |
Video | Aspeed AST2600 |
Storage Technology | 2 x M.2 2280/2260 slot (PCI-E 4.0 x2) 8 x MCIO x8 Connectors Backplane: 6 x MCIO x8, 2 x SlimSAS x4 |
Connectivity | 1 x Management LAN Port (ASMB12-iKVM) |
Expansion | 3 x PCI-E 5.0 x16 slot (Full Height, Full Length) or 6 x PCI-E 5.0 x8 slot (Full Height, Half Length) 2 x PCI-E 5.0 x16 slot (Low Profile) 1 x OCP 3.0 slot (PCI-E 5.0 x16) 1 x OCP 3.0 slot (PCI-E 5.0 x8) |
Rear I/O | 1 x Power Button 1 x RJ45 GbE Management LAN 2 x USB 3.2 (Gen1) 1 x Mini DisplayPort 1 x Location button 1 x Debug Port |
Front Panel I/O | 2 x USB 3.2 (Gen1) 1 x Power Button with LED 1 x ID Button 4 x Status LED (HDD, Message) 1 x Reset Button |
Drive Support | 2 x M.2 2280/2260 slots (PCI-E 4.0 x2) 12 x 3.5"/2.5" NVMe Hot Swap Bays Note: SATA/SAS Support requires HBA/RAID Card |
Power Supply | 1+1 Redundant 2700W 80 PLUS Titanium PSU 100-120V~/220-240V~, 16A (x2), 50/60Hz 100-127V~/220-240V~, 12A/16A (x2), 50-60Hz |
Cooling | 6 x Middle Case Fans |
Case Dimensions | 2U Rackmount 449 x 88 x 830mm 17.68" x 3.5" x 32.7" (in inches) |
Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Non-Operating Humidity: 20% to 95% (non-condensing) |
Compliance | BSMI, CE, CB, RCM, FCC (Class A), ISED |
Warranty | 3 Year Manufacturer's Limited Warranty |
