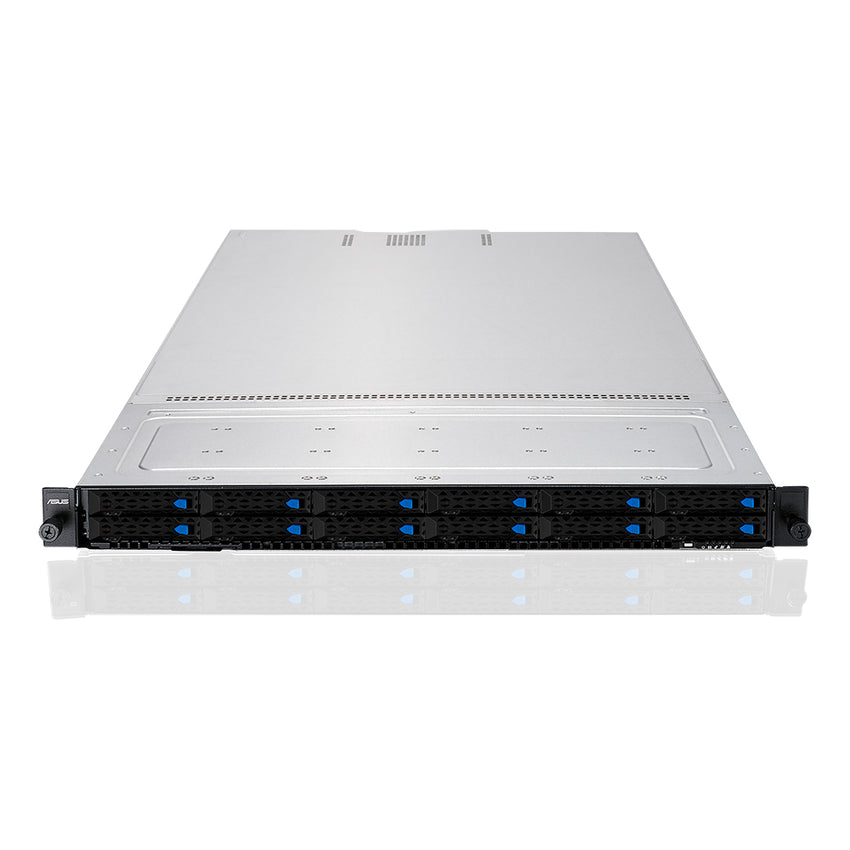

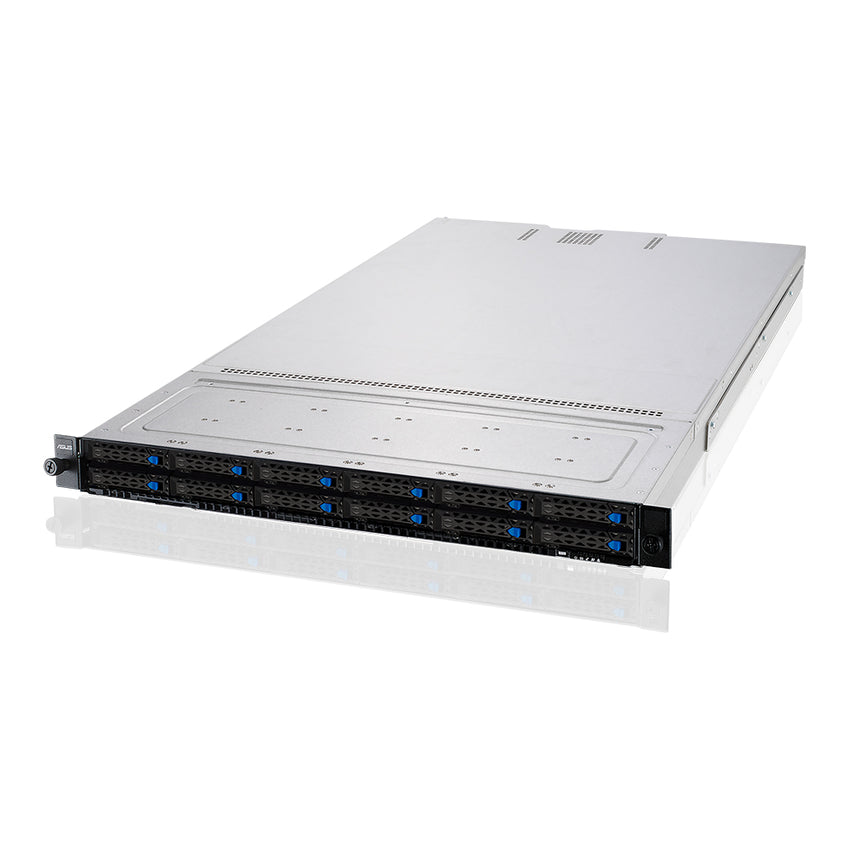

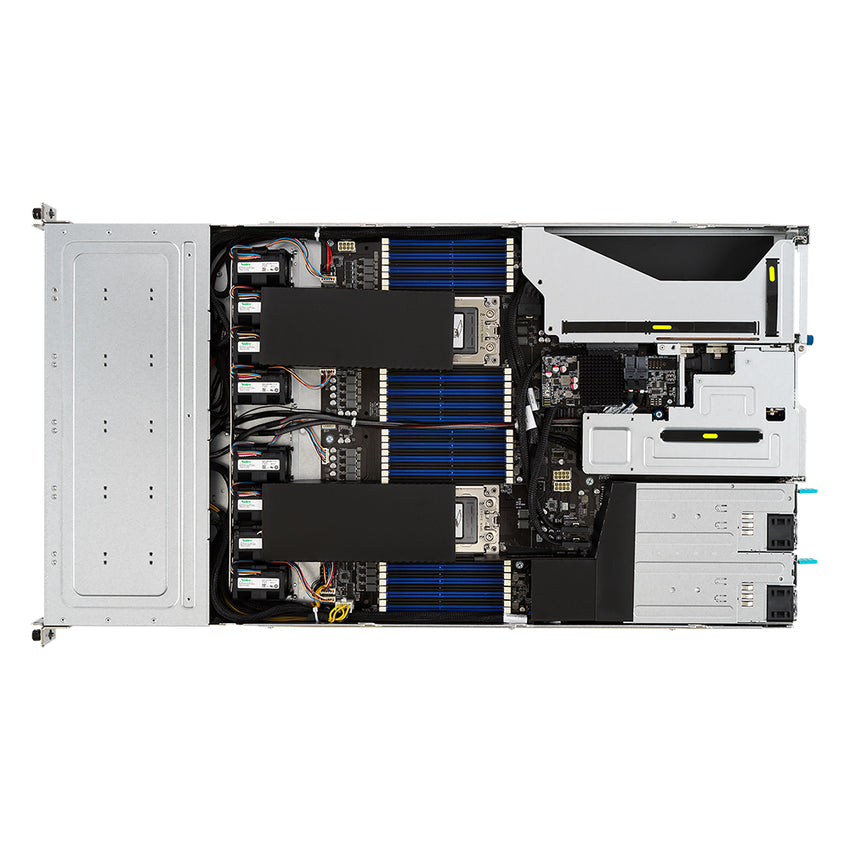

| Manufacturer | ASUS |
| Product ID | RS700A-E11-RS12U RS700A-E11-RS12U-WOCPU044Z |
| CPU | Supports 2 x AMD EPYC 7003 Series Processors Socket SP3 (LGA 4094) Max TDP 280W |
| Chipset | SoC |
| Memory | 32 x DDR4 DIMM slots (16 per CPU) Supports up to 2TB RDIMM Supports up to 4TB LRDIMM 3200/2933 MHz 8-Channel Per CPU |
| Video | Aspeed AST2600 with 64MB VRAM |
| Storage Technology | 12 x NVMe/SATA3 Ports 2 x M.2: SATA and PCIe Mode |
| Connectivity | 2 x Intel X710-AT2 10G LAN 1 x Management LAN (Onboard ASUS ASMB10-iKVM) |
| Expansion | 1 x PCI-E 4.0 x16 slot (Full Height, Full Length) 1 x PCI-E 4.0 x16 slot (Full Height, Full Length) or OCP 3.0 1 x PCI-E 4.0 x16 slot (Low Profile) (x8 speeds when M.2 PCIe is used) |

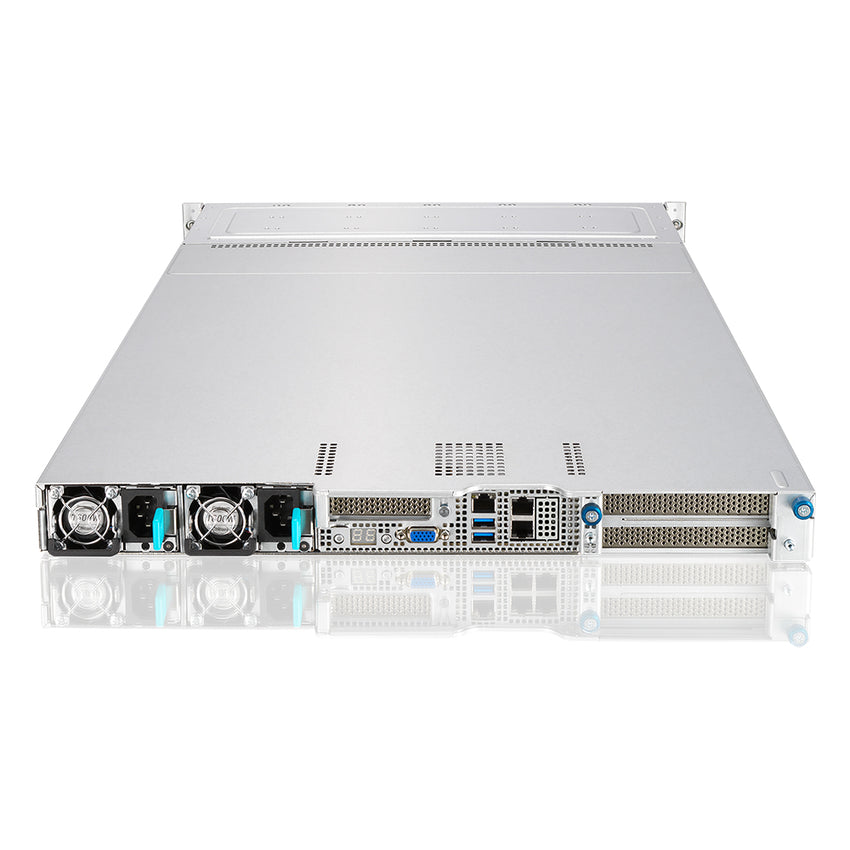

| Rear I/O | 1 x Port 80 LED (Q-Code) 1 x VGA 1 x RJ45 Management LAN 2 x USB 3.2 (Gen1) 4 x RJ45 GbE LAN |
| Front Panel I/O | 1 x Power Switch w/ LED 1 x Reset Switch 1 x Location Switch w/ LED 5 x Status LED (HDD, LAN) |
| Drive Support | 12 x 2.5" Hotswap NVMe/SATA Drive Bays 2 x M.2 22110/2280 slots (PCIe or SATA) |
| Power Supply | 1+1 Redundant 1600W 80 PLUS Platinum Power Supply 100-127/200-240Vac, 9.4A/4.72A, 50-60Hz Class I 240Vdc, 4.6A (Only for China) |
| Cooling | 8 x Middle Cooling Fans |
| Case Dimensions | 1U Form Factor 33.17" x 17.68" x 1.73" (in inches) 842.5 x 449 x 43.85mm Includes Sliding Rack Rails |
| Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Non-operating Humidty: 20% to 90% (non-condensing) |
| Compliance | BSMI, CE, FCC (Class A) |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: RS700A-E11-RS12U
