Manufacturer	Supermicro
Product ID	RS-X12DPI
CPU	Supports Dual Intel Xeon Scalable Processors, Ice Lake Socket LGA 4189 Supports up to 270W TDP
Chipset	Intel C621A
Memory	16 x DDR4 DIMM slots Maximum 4TB ECC RDIMM/LRDIMM 3200/2933/2666 MT/s 2 x DDR4 DIMM (Reserved for Intel Optane Persistent Memory 200 Series Only)
Video	Aspeed AST2600
Storage Technology	2 x SATA Connectors 3 x SlimSAS x4 Ports (12 x SATA) 2 x SlimSAS x8 Ports (4 x NVMe) Supports Software RAID 0, 1, 5, 10 1 x M.2 2280/22110 slot (PCI-E 4.0 x4)
Connectivity	2 x Intel I350 GbE LAN 1 x Realtek RTL8211FS-VSCG GbE Dedicated IPMI
Expansion	1 x PCI-E 4.0 x16 slot

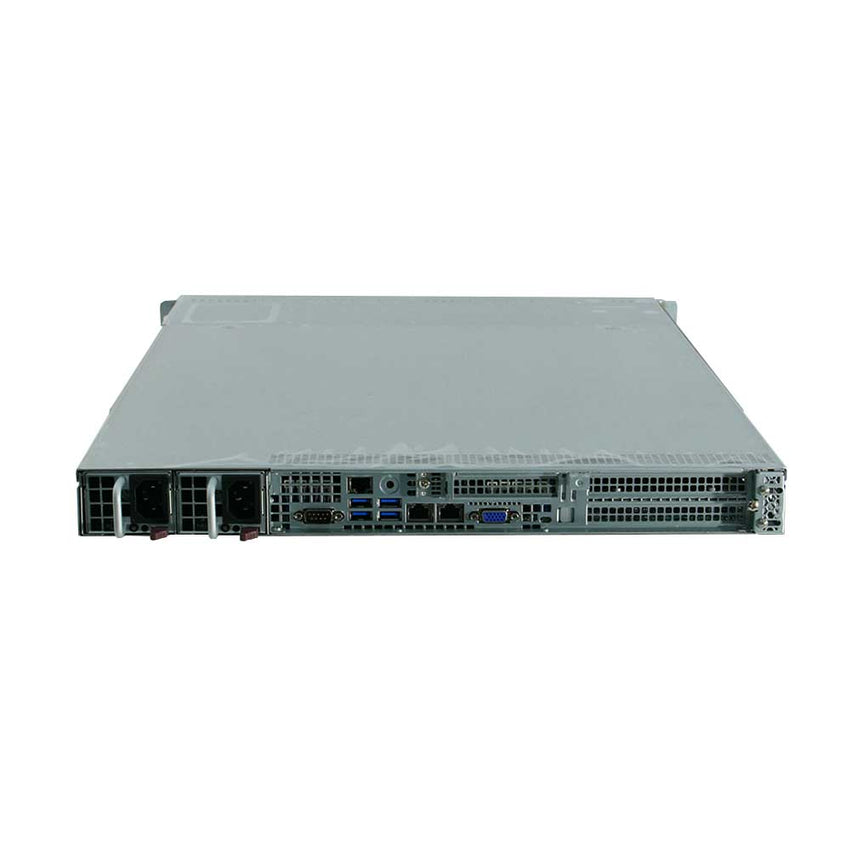

Rear I/O	1 x Serial COM 1 x RJ45 GbE Dedicated IPMI 4 x USB 3.0 2 x RJ45 GbE LAN 1 x VGA
Front Panel I/O	1 x Power Button 1 x Reset Button 6 x Status LED (Power, HDD, LAN, UID, System)
Drive Support	4 x 3.5"/2.5" SATA/SAS Hotswap Drive Bays 1 x M.2 2280/22110 slot (PCI-E 4.0 x4)
Power Supply	1+1 80-PLUS Platinum Power Supply 100-140Vac, 50-60Hz: 700W Output 200-240Vac, 50-60Hz: 750W Output
Cooling	4 x 40x56mm Case Fans Supports up to 6 x 40x56 Case Fans
Case Dimensions	1U Rackmount 25.6" x 17.2" x 1.7" (in inches) 650 x 437 x 43mm
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 8% to 90% at 35°C (non-condensing) Non-Operating Humidity: 5% to 95% at 35°C (non-condensing)
Warranty	1 Year Manufacturer's Limited Warranty
