Manufacturer	ASRock Rack
Part Number	ROMED8-2T/BCM
CPU	Supports AMD EPYC 7003 Processor Socket SP3 Supports Maximum 280W TDP Supports AMD 3D V-Cache Technology with BIOS update
Chipset	SoC
Memory	8 x DDR4 DIMM slots Maximum 64GB RDIMM Capacity per DIMM Maximum 128GB LRDIMM Capacity per DIMM Maximum 256GB RDIMM-3DS/LRDIMM-3DS Capacity per DIMM
Video	ASPEED AST2500
Audio	N/A
Storage Technology	2 x OCuLink (PCI-E 4.0 x4, shared with PCI-E SLOT2) 2 x M.2 2280/2260/2242/2230 slots (PCI-E 4.0 x4, shared with PCI-E SLOT2) 2 x Mini SAS HD
Connectivity	2 x Broadcom BCM57416 10G LAN 1 x Realtek RTL8211E GbE LAN
Expansion Slots	6 x PCI-E 4.0 x16 slots 1 x PCI-E 4.0 x16 slot (Shared with Storage OCuLink/M.2)
Power	1 x 24-pin ATX Connector 1 x 8-pin ATX 12V Connector 1 x 4-pin ATX 12V Connector

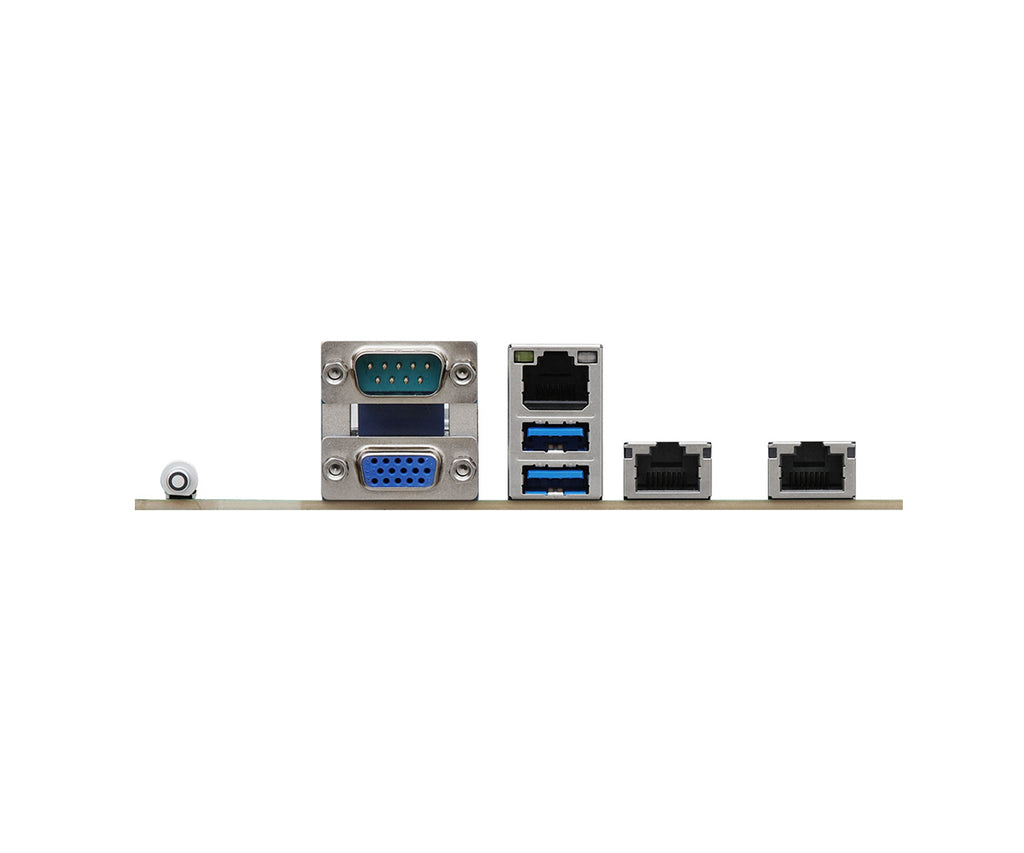

Rear I/O	1 x UID Button w/ LED 1 x Serial COM Port 1 x VGA 1 x RJ45 GbE Dedicated IPMI LAN 2 x USB 3.2 (Gen1) 2 x RJ45 10G LAN
Onboard I/O Headers	1 x Auxiliary Panel header (Chassis Intrusion, Location Button and LED, Front LAN LED) 1 x System Panel header 1 x Speaker header 7 x 6-pin Fan header (1 CPU, 4 Front, 2 Rear) 2 x Thermal Sensor header 1 x 17-pin LPC TPM header 1 x 13-pin SPI TPM header 1 x SMBus header 1 x PMBus header 1 x IPMB header 1 x Clear CMOS Contact Pads 1 x USB 3.2 (Gen1) header (Support 2 ports) 1 x NMI header
OS Software Support	Microsoft Windows Server 2019, Microsoft Windows Server 2022 RedHat Enterprise Linux Server 8.2 (64bit) / 7.9 (64bit) CentOs 8.5 ( 64 bit) / 8.2 ( 64 bit) / 7.9 ( 64 bit) SUSE SLES 15.4(64 bit) / 15.2(64 bit) / 12.5(64bit) UBuntu 22.04 (64 bit) / 20.04.4 (64 bit) /18.04.5 (64 bit) / 16.04.7 (64 bit) VMWare ESXi/ 7.0 U3d / 7.0 U1 / 6.7 U3
Form Factor	ATX 12" x 9.6" 305 x 244mm
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-Operating Humidity: 20% to 90% (Non Condensing)
Warranty	1-Year Manufacturer's Limited Warranty
