| Manufacturer | ASUS |
| Product ID | RNUC16WCKC30000U |
| Model Name | ASUS NUC 16 (Kit) |
| CPU | Intel Core 3 304 1 P-Core / 4 Low Power E-Cores / 5 Threads Low Power E-Cores: 1.4 - 3.3 GHz P-Core: 1.5 - 4.3 GHz 15W Base Power, 35W Max Turbo Power (cTDP 25W) 6 MB Intel Smart Cache Intel NPU, 15 Peak TOPS (Int8) |
| Chipset | SoC (Integrated) Firmware TPM 2.0 (Intel PTT) |
| Memory | 1 x DDR5 CSO-DIMM Slot (262-pin, 1.1V, Non-ECC) Maximum 64GB Capacity DDR5-6400 (Supports Standard SODIMM at Maximum 5600 MHz) No Memory Included |
| Video | Intel Graphics 1 Xe-Core, up to 2.3 GHz Supports up to Triple 4K60Hz Displays 2 x HDMI 2.1 (TMDS Compatible, HDMI CEC) 1 x Thunderbolt 4 Type-C with DisplayPort 2.1 |
| Audio | Realtek ALC3342 Analog and Digital Audio Up to 7.1 Multichannel Digital Audio on HDMI and DP Type-C |
| Storage Technology | 1 x M.2 2280 M-Key Slot (PCIe Gen4 x4, NVMe Only) No Storage Included |
| Connectivity | 2 x Intel I226-V 2.5G LAN Intel Wi-Fi 7 BE211 (2x2, 320MHz) Bluetooth 6.0 |

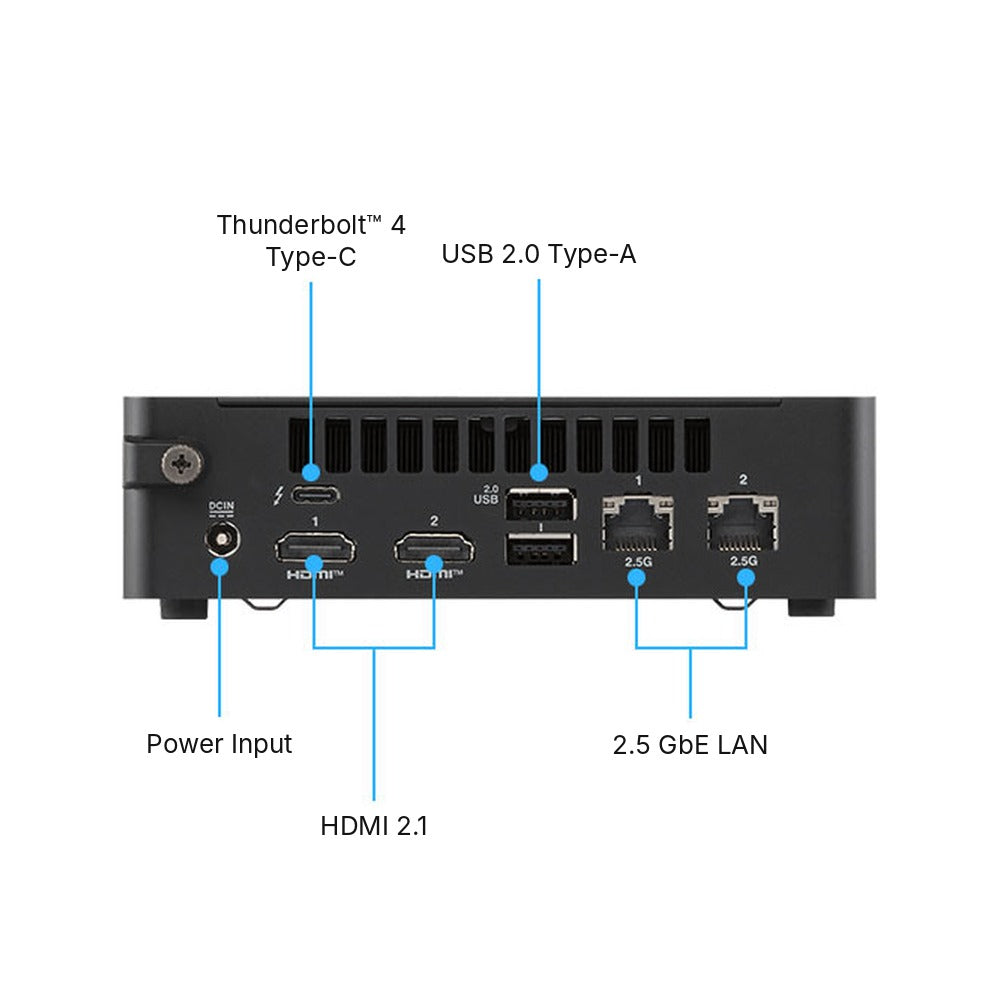

| Rear Panel I/O | 1 x DC-IN 1 x Thunderbolt 4 Type-C with DisplayPort 2.1 (USB4 Compliant, 15W) 2 x HDMI 2.1 2 x USB 2.0 Type-A 2 x RJ45 2.5G LAN |

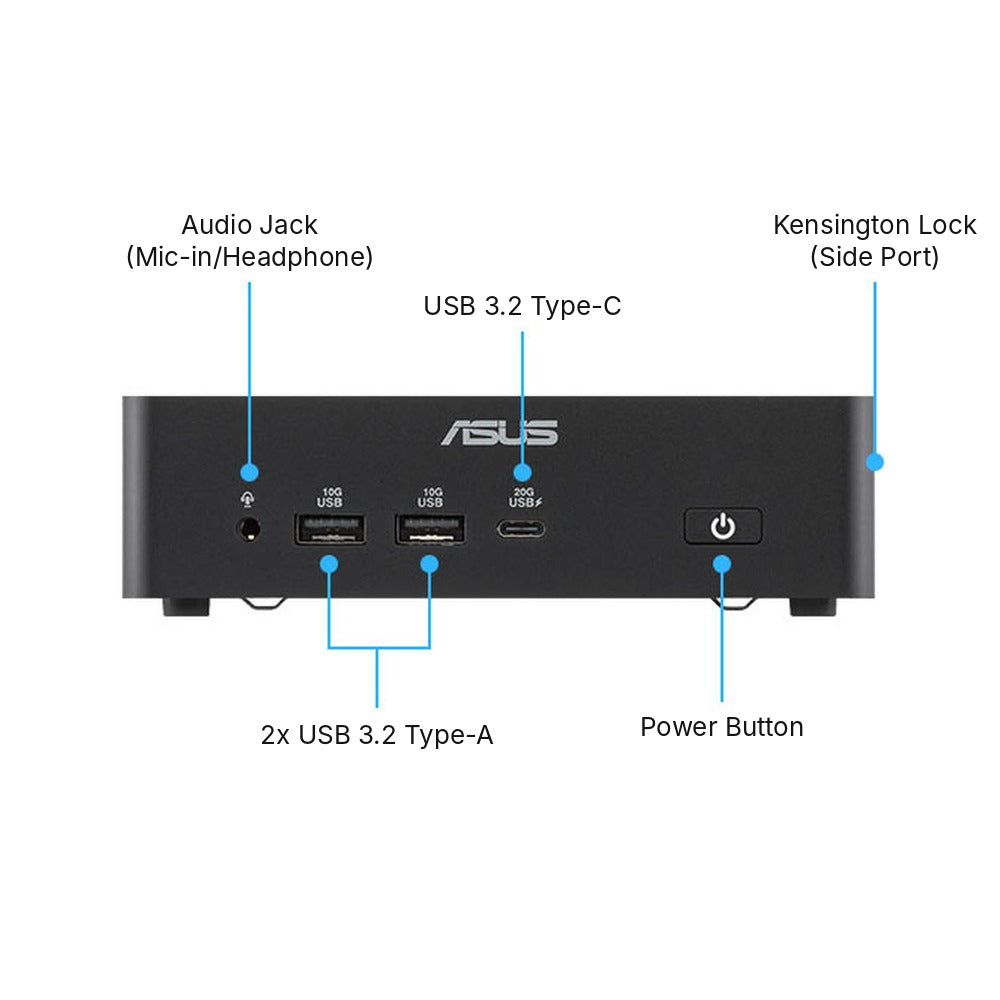

| Front Panel I/O | 1 x USB 20Gbps Type-C 2 x USB 10Gbps Type-A 1 x 3.5mm Combo Audio Jack 1 x Power Button |
| Side I/O | 1 x Kensington Lock (Left Side) |
| Drive Support | 1 x M.2 2280 M-Key Slot (PCIe Gen4 x4, NVMe Only) |
| OS Support | No Preinstalled OS Windows 11 Home 64-bit Windows 11 Pro 64-bit Windows 11 IoT Enterprise 64-bit Windows 11 Pro Education Ubuntu 24.04 LTS 64-bit Red Hat Enterprise Linux 10.0 64-bit |
| Power Supply | 1 x DC-IN (12V - 20V DC Input) 90W 19VDC (4.74A) AC Adapter with Power Cord |
| Case Dimensions | 5.67" x 4.61" x 1.65" (in inches) 144 x 117 x 42mm |
| Net Weight | Approx. 0.56 kg / 1.23 lbs |
| Case Cooling | Active Cooling (Integrated Heat Sink and Fan) |
| Mounting | VESA Bracket and Screws Included |
| Environmental | Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Packing List | 1 x ASUS NUC 16 Kit 1 x 90W AC Adapter with Power Cord 1 x VESA Bracket and Screws 1 x Cable Clip 1 x Safety/Caution/Regulatory Insert 1 x Warranty Card |
| Warranty | 3-Year Warranty on Parts and Labor |
