| Manufacturer |
ASUS |
| Product ID |
RNUC16GDKU56000U |
| Model Name |

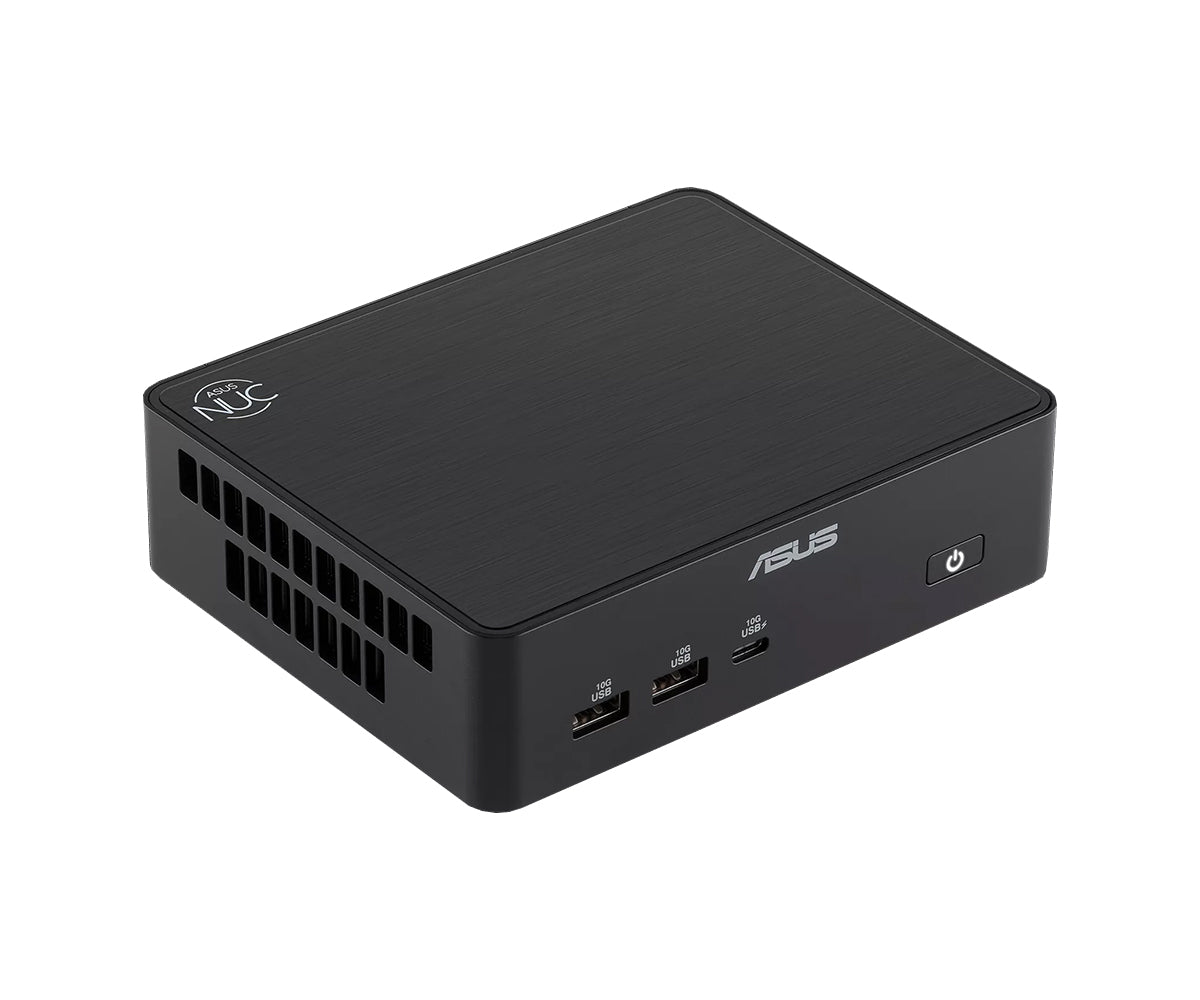

NUC 16 Pro |
| CPU |
Intel Core Ultra 5 325 4 P-Cores / 4 Low Power E-Cores / 8 Threads Low Power E-Cores: 1.6 - 3.4 GHz P-Cores: 2.1 - 4.5 GHz 12W - 55W TDP, 12 MB Intel Smart Cache
|
| Chipset |
SoC Intel fTPM 2.0
|
| Memory |
2 x DDR5 SODIMM slots Maximum 64GB Capacity 6400 MHz
|
| Video |
Intel Graphics 2.45 GHz 40 GPU Peak TOPS (Int8) 4 Xe-Cores Supports Quad Displays |
| Audio |
Digital Audio on HDMI and DP 7.1 Multi Channel
|
| Storage Technology |
1 x M.2 2280 slots (PCI-E 5.0 x4) 1 x M.2 2280 slots (PCI-E 4.0 x4)
|
| Connectivity |
2 x Intel I226-V 2.5G LAN Intel WIFI 7 BE211 Bluetooth 6.0
|
| Expansion Slots |
N/A |
| Rear Panel I/O |
1 x DC-IN 2 x Thunderbolt 4 2 x HDMI 2 x USB 3.2 (Gen2) 2 x RJ45 2.5G LAN
|
| Front Panel I/O |
2 x USB 3.2 (Gen2) 1 x USB 3.2 (Gen2x1) Type-C 1 x Power Button with LED
|
| Drive Support |
1 x M.2 2280 slots (PCI-E 5.0 x4) 1 x M.2 2280 slots (PCI-E 4.0 x4)
|
| OS Support |
Windows 11 Home Windows 11 Pro Windows 11 IoT Enterprise Ubuntu 24.04 LTS RedHat Enterprise Linux 10.0
|
| Power Supply |
1 x DC-IN 120W 19V AC Adapater
|
| Case Dimensions |
5.67" x 4.60" x 1.65" (in inches) 144 x 117 x 42mm
|
| Mounting |
VESA Mounting Plate Included
|
| Environmental |
Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-Operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Humidity: 0% to 92% (non-condensing)
|
| Warranty |
3-Year Warranty on Parts and Labor |
