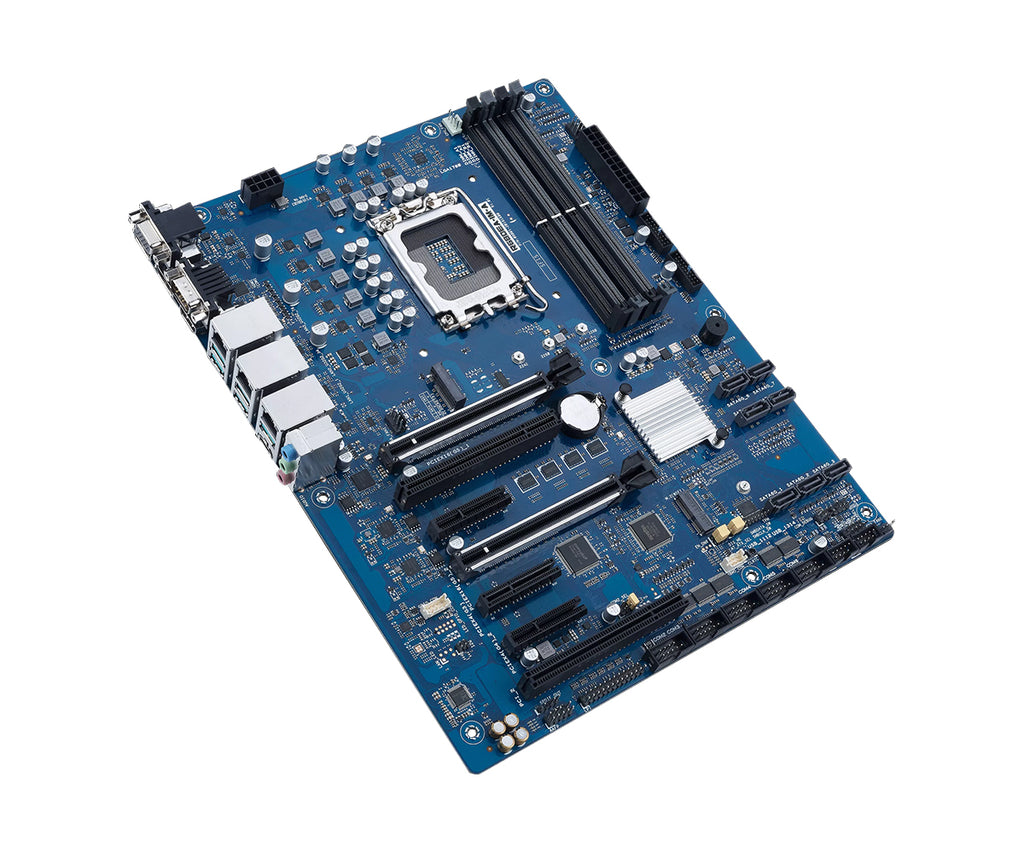

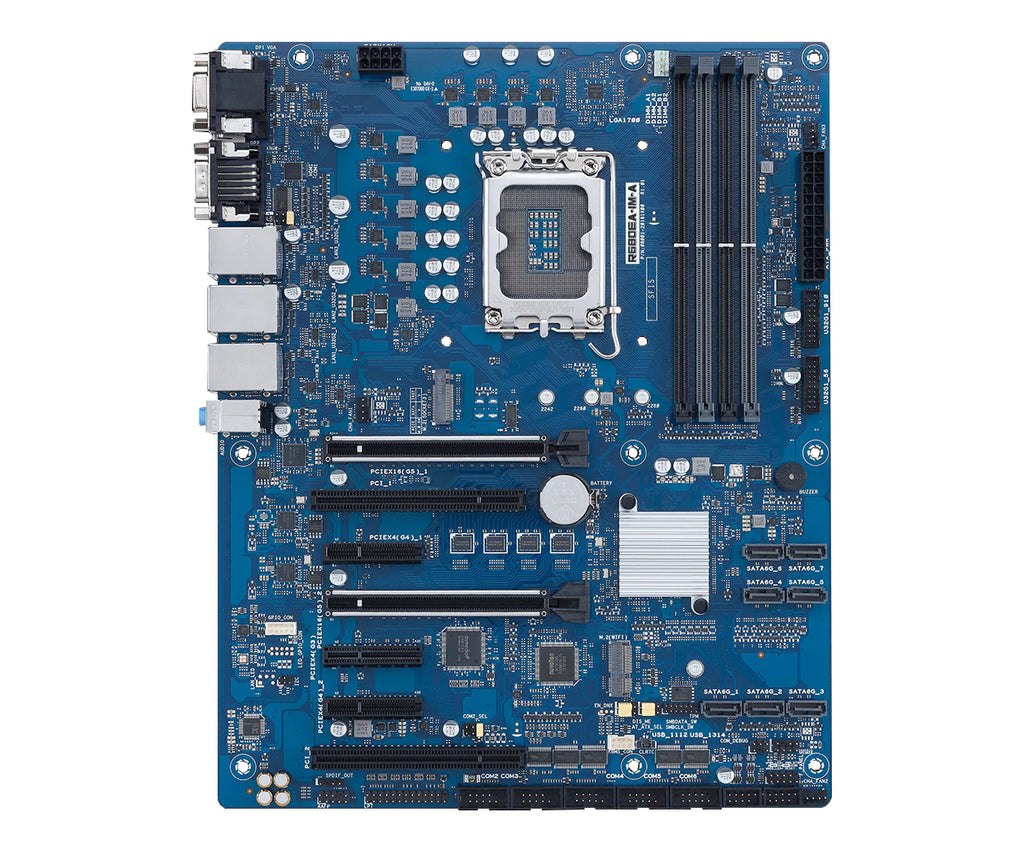

Manufacturer	ASUS
Part Number	R680EA-IM-A
CPU	Supports Intel 14th/13th/12th Gen Core Processors, Raptor Lake-S Socket LGA 1700 Maximum 125W TDP
Chipset	Intel R680E
Memory	4 x DDR5 DIMM slots Maximum 128GB Capacity 4000/3600 MT/s Supports ECC UDIMM
Video	Intel HD Graphics (CPU Dependent) DisplayPort Max Resolution: 3840x2160@60Hz HDMI Max Resolution: 4096x2160@60Hz VGA Max Resolution: 1920x1080 Supports 4 Displays
Audio	Realtek ALC 897
Storage Technology	7 x SATA Connectors Supports RAID 0/1/5/10 1 x M.2 2280/2260/2242 slot (PCIe x4/SATA)
Connectivity	1 x Intel I226LM 2.5GbE LAN (Supports vPro) 1 x Intel I226V 2.5GbE LAN 1 x Intel I210AT GbE LAN
Expansion Slots	1 x PCI-E 5.0 x16 slot (x16 or x8/x8) 1 x PCI-E 5.0 x16 slot (x8 Mode) 2 x PCI-E 4.0 x4 slots (x4 Mode, Open Slot) 1 x PCI-E 3.0 x4 slot (x4 Mode, Open Slot) 1 x M.2 2230 slot (CNVi only, shared with USB port14)
Power	1 x 24-Pin ATX Power Connector 1 x 12V 8-Pin ATX Power Connector for CPU

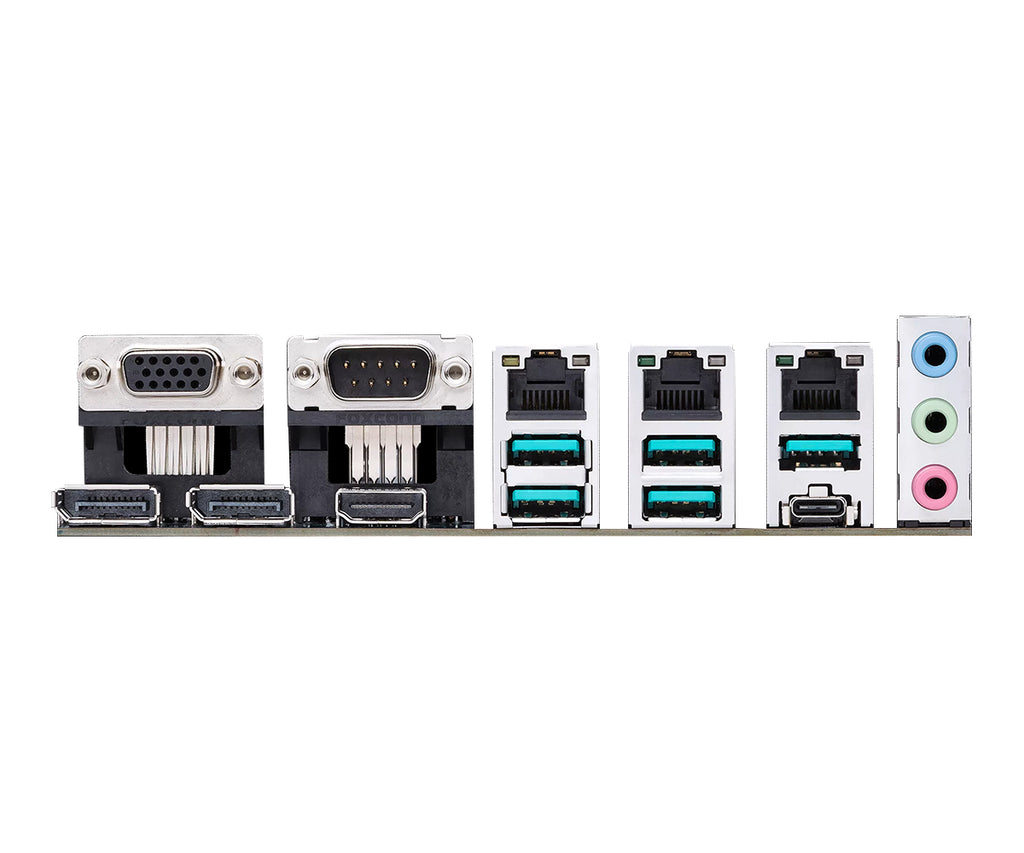

Rear I/O	1 x VGA 2 x DisplayPort 1 x COM (RS232/422/485) 1 x HDMI 3 x RJ45 GbE LAN 5 x USB 3.2 (Gen2) 1 x USB 3.2 (Gen2) Type-C 3 x Audio I/O
Onboard I/O Headers	1 x COM header (RS232/422/485) 4 x COM headers (RS232) 2 x USB 3.2 (Gen1) header (Supports 4 ports) 2 x USB 2.0 headers (Supports 4 ports) 1 x CPU Fan header 3 x Chassis Fan header 1 x Front Panel Audio header (AAFP) 1 x System Panel header 1 x Chassis Intrusion header 1 x Speaker header 1 x S/PDIF header 1 x I2C header 1 x Clear CMOS header 1 x COM Debug header 1 x LPT port header 1 x Buzzer 1 x PS/2 header 1 x Disable ME jumper 1 x AT/ATX Mode jumper 1 x SPI TPM header 1 x 8-bit GPIO header
OS Support	Windows 11 (64-Bit) Windows IoT Enterprise Ubuntu RedHat Enterprise Fedora Workstation OpenSUSE
Form Factor	ATX 305 x 244mm 12" x 9.6"
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Storage Humidity: 10% to 95% (non condensing)
Compliance	CE, FCC, BSMI, VCCI, RCM, CE-LVD
Warranty	2-Year Manufacturer's Limited Warranty
