Manufacturer	Gigabyte
Product ID	R283-Z94-AAF1
Model Number	R283-Z94
CPU	Supports 2 x AMD EPYC 9005/9004 Series Processors Socket SP5 cTDP up to 240W TDP
Chipset	SoC
Memory	24 x DDR5 DIMM slots Maximum 9TB Capacity EPYC 9005 Series: up to 6400 MT/s EPYC 9004 Series: up to 4800 MT/s 12-Channel Memory per Processor
Video	Aspeed AST2600
Storage Technology	Backplane Supports PCI-E 5.0/SATA/SAS Rear Backplane Supports SATA/SAS Note: SAS support requires add-in card
Connectivity	2 x Intel I350-AM2 GbE LAN Supports NCSI function 1 x GbE Management LAN
Expansion	2 x PCI-E 5.0 x16 slots (Full Height, Full Length) 2 x PCI-E 5.0 x16 slots (Full Height, Half Length) 2 x OCP 3.0 slot (PCI-E 5.0 x16) Supports NCSI function

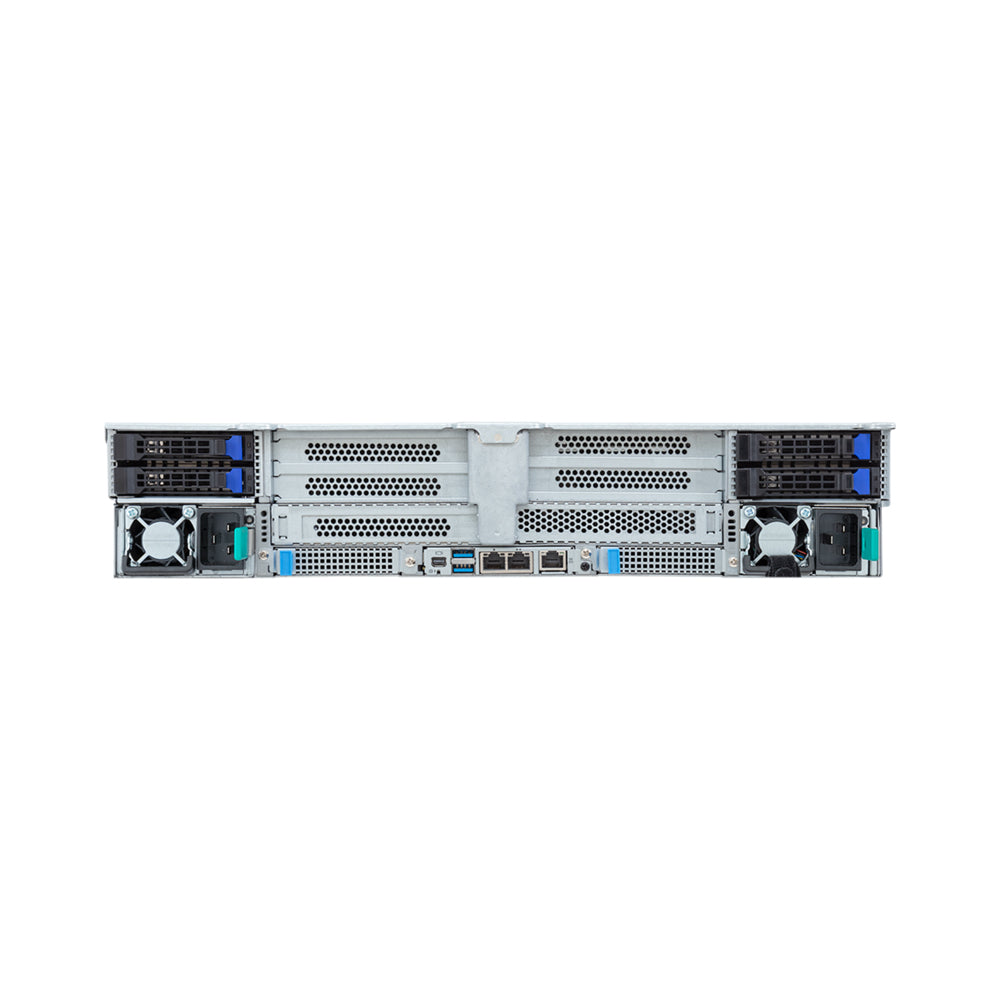

Rear I/O	1 x Mini DP 1 x ID LED 2 x USB 3.2 (Gen1) 2 x RJ45 GbE LAN 1 x RJ45 Dedicated Management LAN
Front Panel I/O	2 x USB 3.2 (Gen1) 1 x Power Button with LED 1 x ID Button with LED 1 x NMI Button 1 x Reset Button 2 x LAN LEDs 1 x Storage LEDs 1 x System Status LED
Drive Support	8 x 3.5"/2.5" NVMe/SATA/SAS Drive Bays 4 x 3.5"/2.5" SATA/SAS Drive Bays 4 x 2.5" SATA/SAS Rear Drive Bays
Power Supply	1+1 80 PLUS Platinum Redundant Power Supply 1000W AC Input: 100-127V / 12A, 50-60Hz 2200W AC Input: 200-240V / 10A, 50-60Hz 2400W DC Input: 240Vdc / 8A
Cooling	4 x 80x38mm 18300 RPM Case Fans
Case Dimensions	2U Rackmount 815 x 438 x 87.5mm 32.1" x 17.2" x 3.4" (in inches) Includes 2 section rail kit
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Humidity: 8% to 80% (non-condensing) Non-Operating Humidity: 20% to 95% (non-condensing)
Warranty	3 Year Manufacturer's Limited Warranty
