Dynatron R17 3U Rackmount CPU Cooler Heatpipes, Intel LGA 2011, Xeon, Socket R

  • Intel Core i7, Xeon E5

  • Socket R LGA 2011

More Information...

$36.95

DESCRIPTION
TECHNICAL SPECIFICATIONS

OVERVIEW

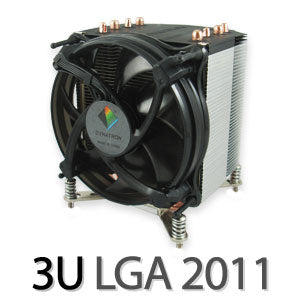

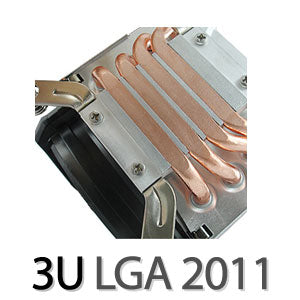

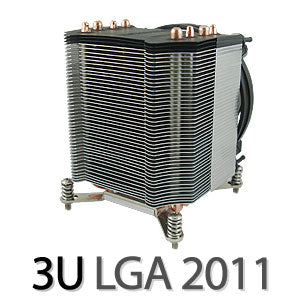

Active 3U CPU cooler from Dynatron for Intel LGA 2011 (Socket R) Sandy Bridge server processors. The R17 3U CPU cooler is comprised of multiple design elements. The alumium heatsink provides optimal heat transfer and dissipation and is aligned (fin direction parallel to airflow) to the 92mm fan on its side. 4 copper heatpipes, with direct contact to the CPU, are employed to enhance heat transfer away from the CPU. The heatpipes are split up both sides of the heatsink to maximize travel and efficiency. Using this design, the R17 is able to provide cooling for processors with a maximum TDP of 160W in a 3U design. In the interest of keeping noise levels to a minimum, a large, 92mm fan is utilized and installed via rubber mounts in lieu of traditional screws. Thermal compound is pre-printed with Shin-Etsu G751; no additional thermal compound is required.

KEY FEATURES

  • Intel Core i7, Xeon E5

  • Socket R LGA 2011
