| Manufacturer | Mitac |
| Product ID | R1520G6U2XD |
| Model Number | R1520G6 |
| CPU |
Supports 2 x Intel Xeon 6 Processors, Sierra Forest/Granite Rapids Socket LGA 4710 Max 250W TDP |
| Chipset | SoC |
| Memory |
32 x DDR5 RDIMM slots (16 per CPU) MRDIMM: 8000 MHz RDIMM/RDIMM-3DS: 6400/5200 MHz Maximum 8192GB Capacity 8 Channel |
| Video | Aspeed AST2600 |
| Storage Technology |
2 x M.2 22110/2280 slots (PCI-E 4.0 x4) Backplane: NVMe/SAS/SATA Support 5 x SFF-TA-1016 MCIO 8x |
| Connectivity |
1 x Realtek RTL8211FD-CG GbE LAN (Dedicated IPMI) |
| Expansion |
1 x PCI-E 5.0 x16 (Full Height, Half Length) 1 x PCI-E 5.0 x16 slots (Half Height, Half Length) 2 x OCP 3.0 Mezzanine slots (PCI-E 5.0 x16) 1 x DC-SCM 2.0 slot |

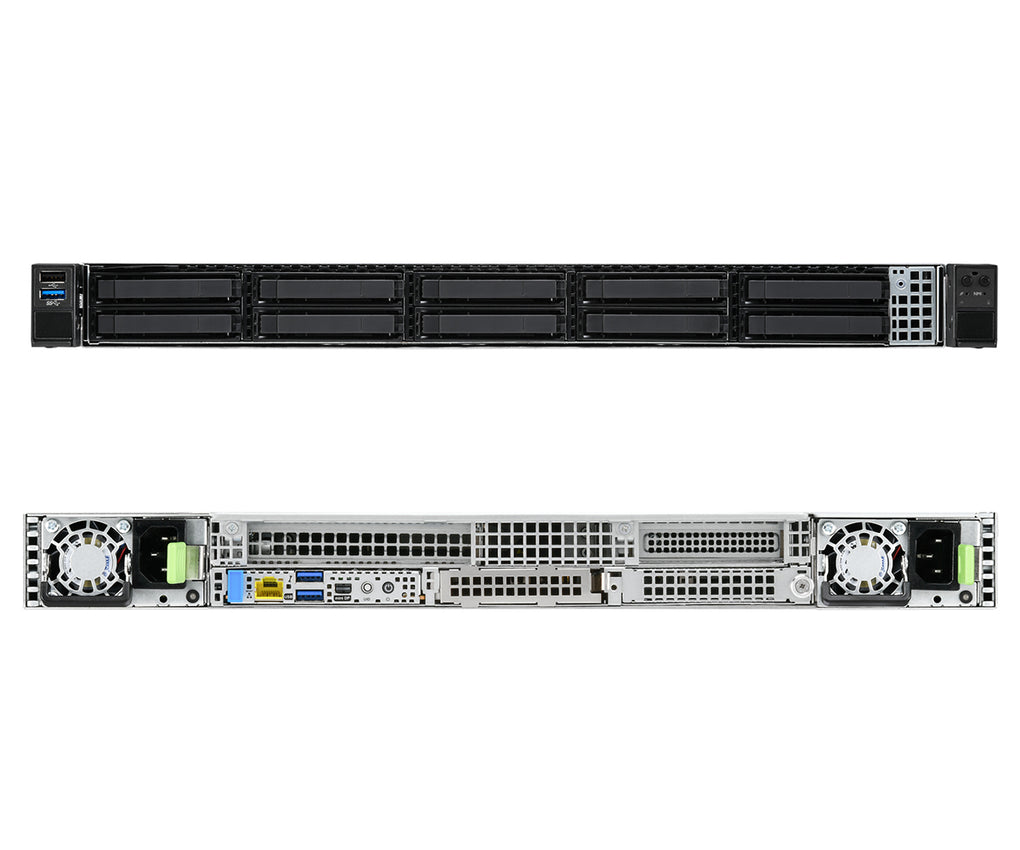

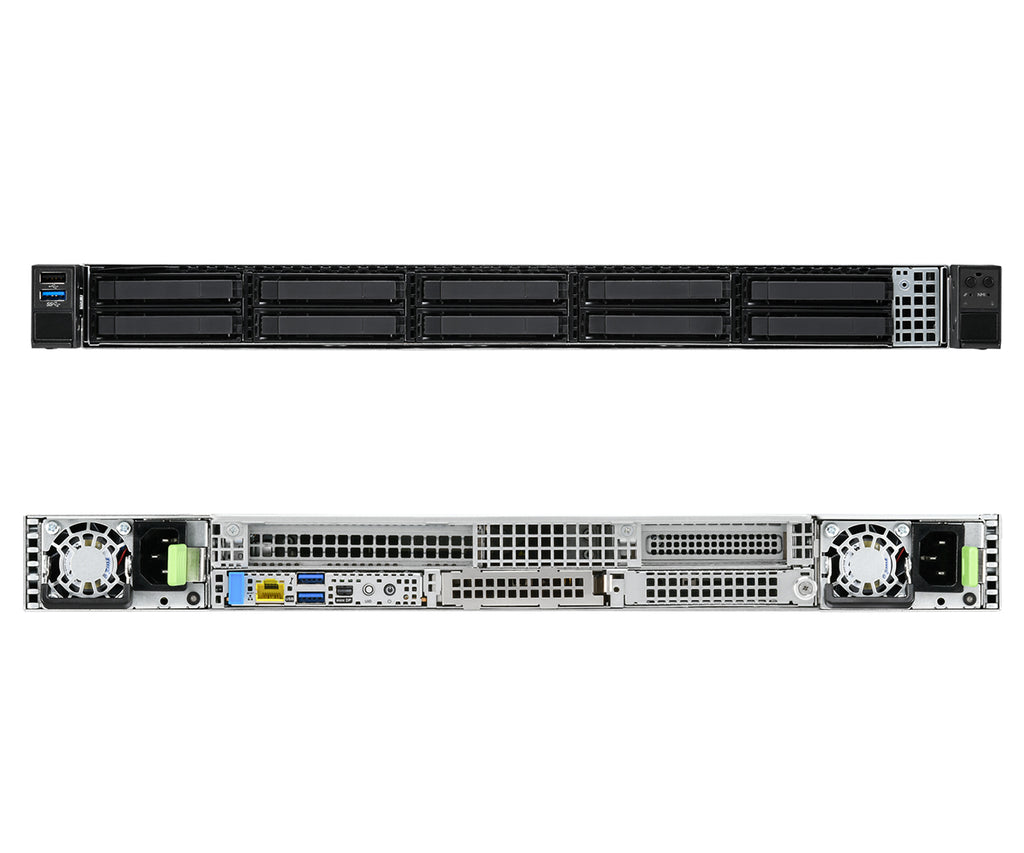

| Rear I/O |
1 x USB UART 1 x RJ45 GbE Dedicated IPMI 2 x USB 3.0 1 x Mini DisplayPort 1 x UID Button 1 x Power Button |
| Front Panel I/O |
1 x USB 2.0 1 x USB 3.0 1 x Power Button with LED 1 x ID Button with LED 1 x Reset Button 1 x NMI Button 3 x Status LED (ID, HDD, System Event) |
| Drive Support |
2 x M.2 22110/2280 slots (PCI-E 4.0 x4) 10 x 2.5" NVMe Drive Bays Note: SATA/SAS Requires HBA/RAID card |
| Power Supply |
1+1 1300 Watt 80-Plus Titanium RPSU 100-127V/12A 200-240V/8.5A 50/60 Hz |
| Cooling |
8 x 40x56mm Middle Fans |
| Case Dimensions |
1U Rackmount 30.31" x 17.26" x 1.69" (in inches) 770 x 438.5 x 43mm |
| Environmental |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 85% at 35°C (non-condensing) Non-Operating Humidity: 90% at 35°C (non-condensing) |
| Compliance |
FCC (SDoC) Class A CE (DoC) Class A CB/LVD RCM VCCI BSMI NRTL RoHS 6/6 Compliant RoHS 2.0 |
| Warranty | 3 Year Manufacturer's Limited Warranty |
PRODUCT ID: R1520G6U2XD
