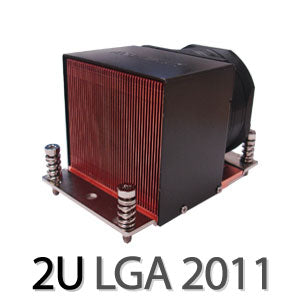

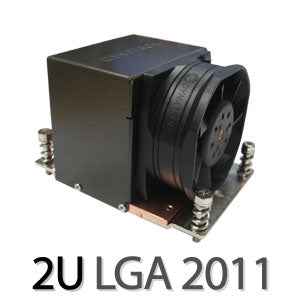

Dynatron R14: 2U LGA 2011 Active CPU Cooler For Intel Xeon Processors | |
Model Number | R14 |
Dimensions | 102 x 70 x 67 mm 4" x 2.76" x 2.64" (in inches) |
Fan Size | 60mm x 60mm x 28mm |
CPU Support | LGA 2011 (Socket R) Sandy Bridge-E Intel Core i7, Xeon E5 and other LGA 2011 processors 150W TDP MAX |
Features | Shin-Etsu G751 Thermal Compound (pre-printed) |
Rated Voltage | 12V |
Input Power | At Duty Cycle 20%: 0.6 W At Duty Cycle 50%: 2.16 W At Duty Cycle 100%: 7.2 W |
Speed | At Duty Cycle 20%: 1500 RPM At Duty Cycle 50%: 3500 RPM At Duty Cycle 100%: 7000 RPM |
Static Pressure: | At Duty Cycle 20%: 0.7 mm-H2O At Duty Cycle 50%: 3.6 mm-H2O At Duty Cycle 100%: 14.3 mm-H2O |
Maximum Airflow: | At Duty Cycle 20%: 8.8 CFM At Duty Cycle 50%: 20.3 CFM At Duty Cycle 100%: 40.5 CFM |
Noise Level | At Duty Cycle 20%: 16.0 dBA At Duty Cycle 50%: 32.9 dBA At Duty Cycle 100%: 47.5 dBA |
Connector | 4-pin PWM |
