Manufacturer	GigaIPC
Product ID	QP-N150A-A2
CPU	Intel® Processor N150 Intel® 7, 4 Cores Up to 3.60 GHz 6W TDP
Chipset	SoC Onboard TPM 2.0 (Infineon SLB9670VQ2.0)
Memory	1 x DDR5 SO-DIMM Slot Maximum 16GB Capacity Single Channel DDR5 4800 MHz
Video	Intel® UHD Graphics 2 x HDMI 2.0: Max Resolution 4096x2160 @60Hz Supports 2 Independent Displays
Audio	Realtek® ALC897 1 x Headphone Jack
Storage Technology	1 x 2.5" HDD/SSD Bay (SATA 6Gb/s) 1 x M.2 2280 M-Key (PCIe Gen3x2)
Connectivity	2 x Intel® I226V 2.5GbE LAN
Expansion Slots	1 x M.2 2230 E-Key (WiFi/BT) 1 x Full-Size Mini PCIe with SIM Slot (3G/4G/LTE)

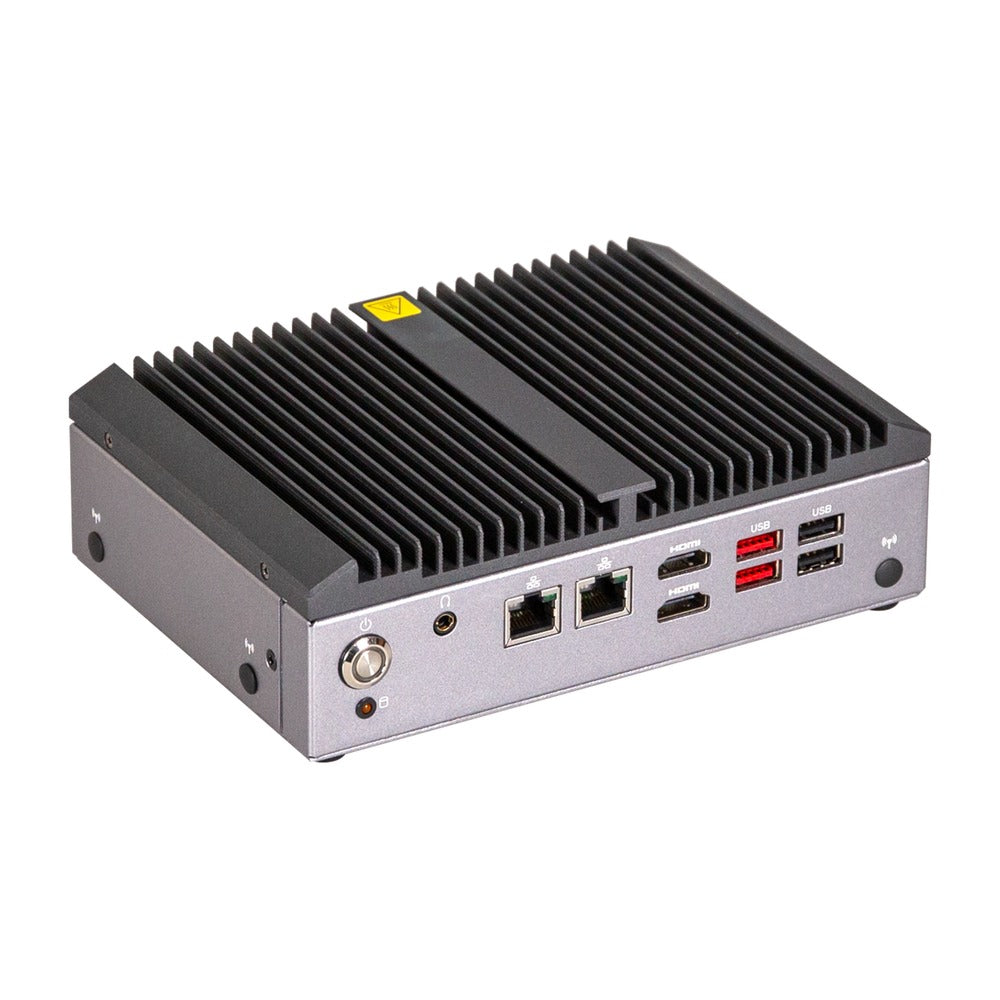

Front Panel I/O	2 x RJ45 LAN Ports 2 x USB 3.2 Gen 2x1 2 x USB 2.0 2 x HDMI 1 x Power Button with LED 1 x HDD LED 1 x Headphone Jack

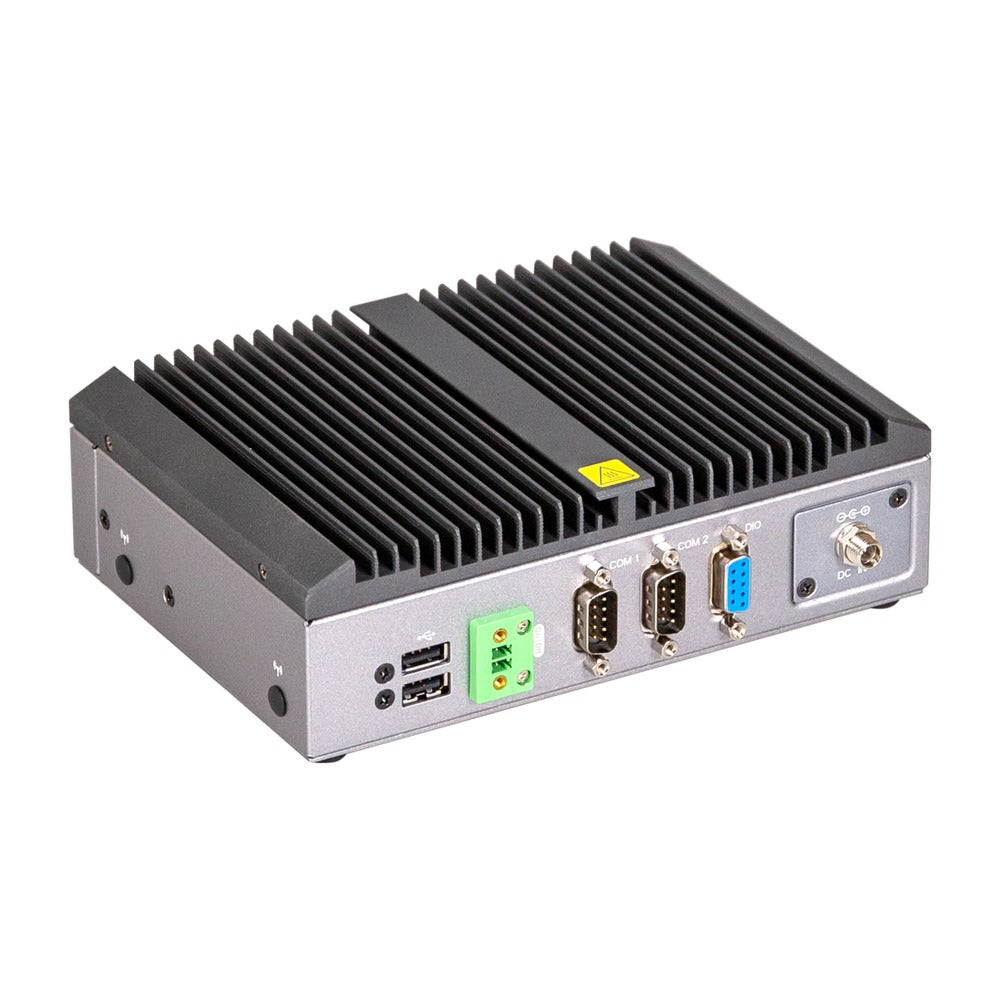

Rear Panel I/O	2 x USB 2.0 1 x COM Port (RS-232/422/485 & RI/5V/12V) 1 x COM Port (RS-232/422/485) 1 x Remote Control 1 x GPIO (8 bits) 1 x Screw-Type DC Jack
Side I/O	2 x External Antenna Holes (Optional)
Drive Support	1 x 2.5" HDD/SSD Bay 1 x M.2 2280 M-Key (PCIe Gen3x2)
OS Support	Windows 11 IoT Enterprise LTSC 2024 (x64) Windows 11 Enterprise LTSC 2024
Power Supply	+12V ~ 36VDC Wide-Range Input 65W 19V AC-DC Adapter Included
Case Dimensions	178 x 125 x 52.7mm 7.01" x 4.92" x 2.07" (in inches)
Mounting	Wall Mount (Optional) VESA 75x75 / 100x100 (Optional)
Environmental	Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 20-95% @ 40°C (non-condensing) Non-Operating Humidity: 95% @ 60°C (non-condensing) Operating Vibration: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 Non-Operating Vibration: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis Operating Shock: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing List	65W 19V AC-DC Adapter AC Power Cord SATA Cable 2-Pin Terminal Block Male Plug Screw Kit for 2.5" HDD
Warranty	1-Year Warranty on Parts and Labor
