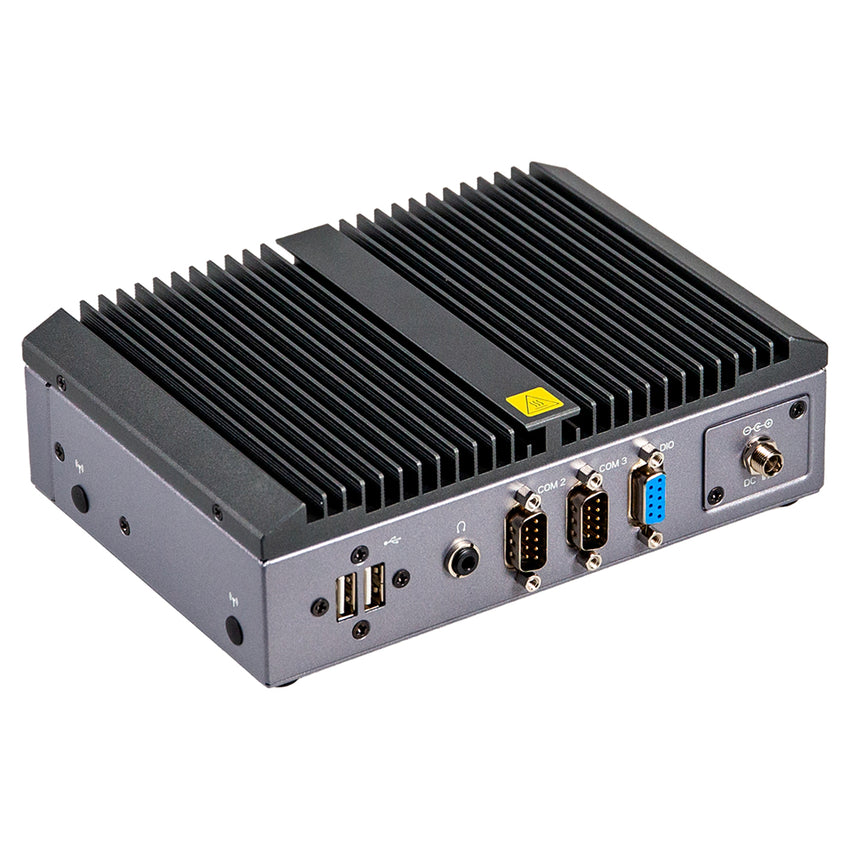

Manufacturer	GigaIPC
Product ID	QBiX-Pro-RPLA1335H-A2
CPU	Intel Core i5-1335U Processor 2 P-Cores / 8 E-Cores / 12 Threads 3.4 - 4.6 GHz 12W - 15W TDP, 12MB Intel Smart Cache
Chipset	SoC Onboard INFINEON SLB9672VU2.0 TPM 2.0 Security Chip
Memory	2 x DDR4 SODIMM slots Maximum 64GB Capacity 3200 MHz Dual Channel
Video	Intel Iris Xe Graphics 1.25 GHz 80 Execution Units HDMI Max Resolution: 4096x2160@60Hz Supports 2 Independent Displays
Audio	Realtek ALC269
Storage Technology	1 x SATA3 6Gb/s Connector 1 x M.2 2280 slot: PCI-E 4.0 x4 or SATA (M-Key)
Connectivity	2 x Intel I226V 2.5GbE LAN
Expansion Slots	1 x M.2 2230 slot (E-Key) 1 x Mini PCI-E slot with SIM slot
Rear Panel I/O	2 x USB 2.0 1 x Audio Out 2 x COM (RS232/422/485) 1 x GPIO (8 bits) 1 x DC-IN
Front Panel I/O	1 x HDD LED 1 x Power Button with LED 1 x COM (RS232/422/485 & RI/5V/12V) 2 x RJ45 2.5GbE LAN 2 x HDMI 4 x USB 3.2 (Gen2x1) 1 x Antenna Hole
Side Panel I/O	2 x Antenna Holes
Drive Support	1 x 2.5" SATA Drive Bay 1 x M.2 2280 slot (PCI-E 4.0 x4/SATA, M-Key)
OS Support	Windows 10 Windows 11
Power Supply	9-36V DC-IN 135W 19.5V Adapter
Case Dimensions	178 x 125 x 52.7mm 7.0" x 4.9" x 2.07" (in inches)
Cooling	N/A
Mounting	Optional Wallmount Bracket Optional VESA Bracket
Environmental	Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 0% to 95% (non-condensing) Non-Operating Humidity: 0% to 95% (non-condensing) Operating Vibration: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 Non-Operating Vibration: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis Operating Shock: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Warranty	1-Year Warranty on Parts and Labor
