| Manufacturer | GigaIPC |
| Product ID | QBiX-Pro-RPLA1335H-A1 |
| CPU | Intel® Core™ i5-1335U Processor Intel® 7, 10 Cores (2P+8E), 12 Threads Up to 4.6 GHz 15W TDP |
| Chipset | SoC Onboard TPM 2.0 (INFINEON SLB9672VU2.0) |
| Memory | 2 x DDR4 SO-DIMM Slots Maximum 64GB Capacity Dual Channel DDR4 3200 MHz |
| Video | Intel® Iris® Xe Integrated Graphics 2 x HDMI 2.0: Max Resolution 4096x2160 @60Hz Supports 2 Independent Displays |
| Audio | Realtek® ALC269 |
| Storage | 1 x 2.5" HDD/SSD Bay (SATA 6Gb/s) |
| Connectivity | 2 x Intel® I226V 2.5GbE LAN |
| Expansion Slots | 1 x M.2 2280 M-Key (PCIe Gen 4x4, SATA 6Gb/s) 1 x M.2 2230 E-Key 1 x Full-size Mini PCIe with SIM Slot |

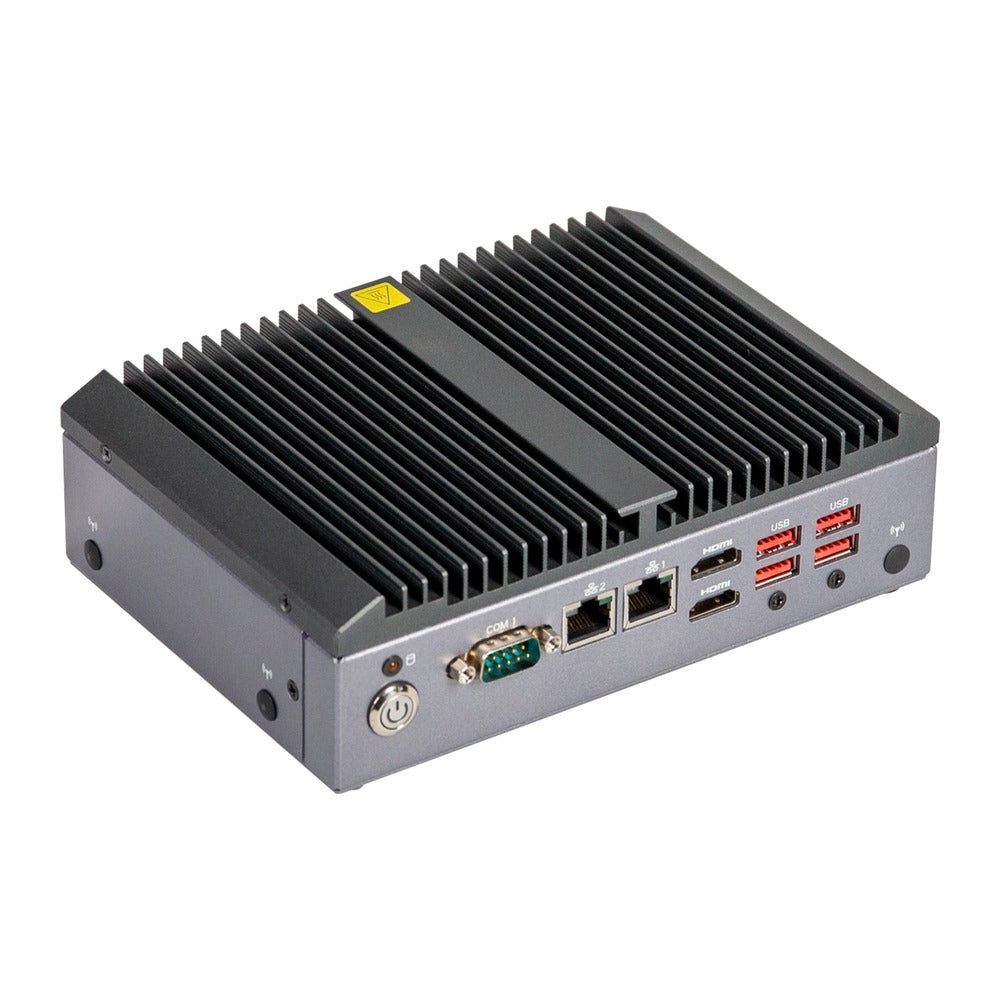

| Front I/O | 2 x RJ45 LAN Ports 4 x USB 3.2 Gen 2x1 2 x HDMI 1 x Power Button with LED 1 x HDD LED 1 x COM Port (RS-232/422/485 & RI/5V/12V) 1 x External Antenna Hole (Optional) |

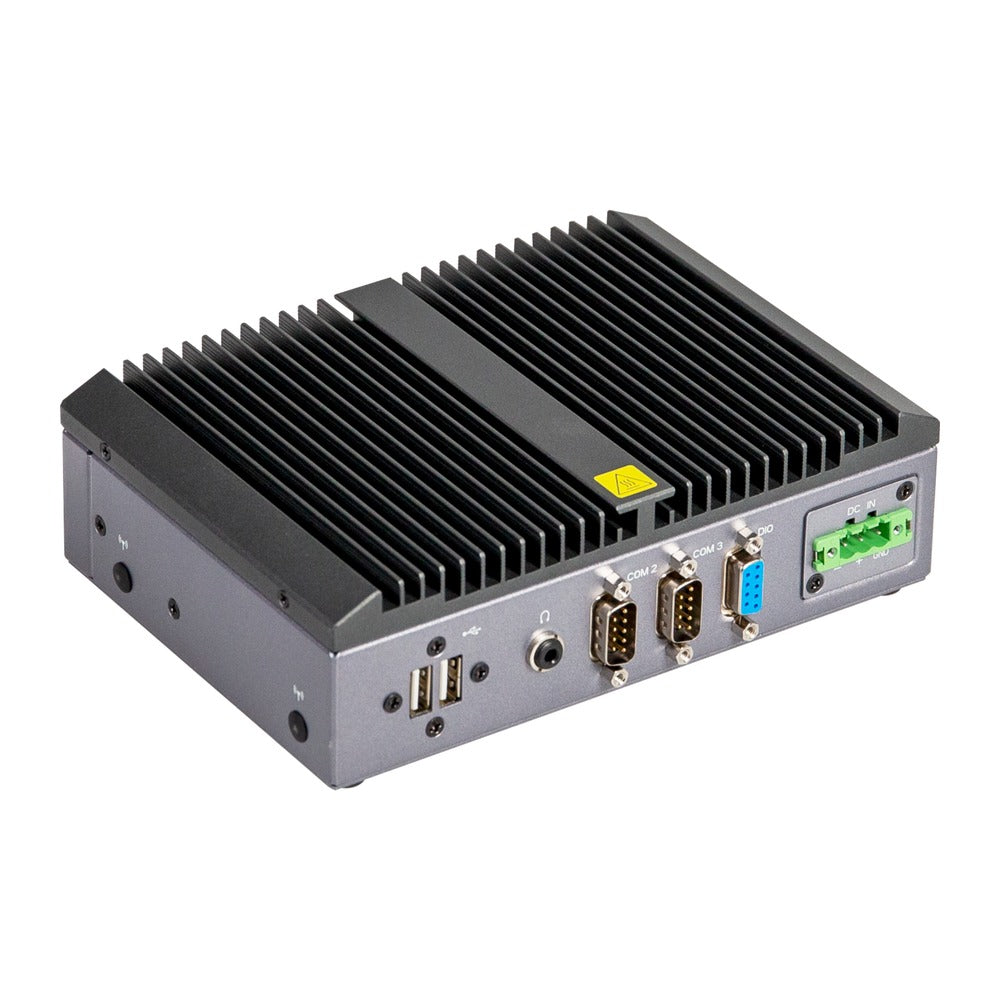

| Rear I/O | 2 x USB 2.0 2 x COM Ports (RS-232/422/485) 1 x GPIO (8-bit) 1 x Headphone Jack 1 x 3-Pin Terminal Block |
| Side I/O | 2 x External Antenna Holes (Optional) |
| OS Support | Windows 11 IoT LTSC 2024 24H2 Windows 10 IoT LTSC 2021 21H2 |
| Power Supply | +9V ~ 36V DC Input (Wide Range) |
| Case Dimensions | 178 x 125 x 52.7mm 7.01" x 4.92" x 2.07" (in inches) |
| Mounting | Wall Mount Bracket (Optional) VESA 75/100 Mount (Optional) |
| Environmental | Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 0% to 90% (non-condensing) Non-operating Humidity: 0% to 95% (non-condensing) Operating Vibration: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 Non-operating Vibration: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis Operating Shock: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: QBiX-Pro-RPLA1335H-A1
