| Manufacturer |
GigaIPC |
| Product ID |
QBIX-Pro-RPLA1315EH-A2 |
| CPU |
Intel Core i3-1315UE Processor
2 P-Cores / 4 E-Cores / 8 Threads
1.20 - 4.50 GHz
15W TDP, 10 MB Intel Smart Cache
|
| Chipset |
SoC |
| Memory |
2 x DDR4 SODIMM slots
Maximum 64GB Capacity
3200 MHz
Dual Channel |
| Video |
Intel UHD Graphics
1.20 GHz
64 Execution Units
HDMI Max Resolution: 4096x2160@60Hz
Supports 2 Independent Displays
|
| Audio |
Realtek ALC269
|
| Storage Technology |
1 x SATA3 6Gb/s Connector
1 x M.2 2280 slot: PCI-E 4.0 x4 or SATA (M-Key)
|
| Connectivity |
2 x Intel I226V 2.5GbE LAN
|
| Expansion Slots |
1 x M.2 2230 slot (E-Key)
1 x Mini PCI-E slot with SIM slot
|

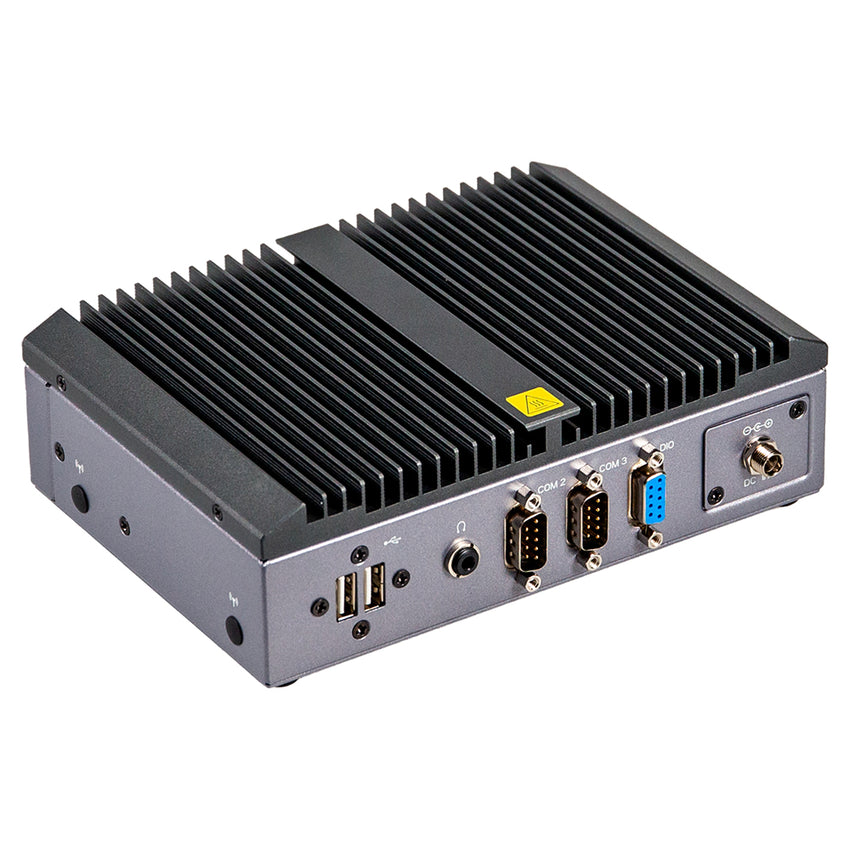

| Rear Panel I/O |
2 x USB 2.0
1 x Audio Out
2 x COM (RS232/422/485)
1 x GPIO (8 bits)
1 x DC-IN
|

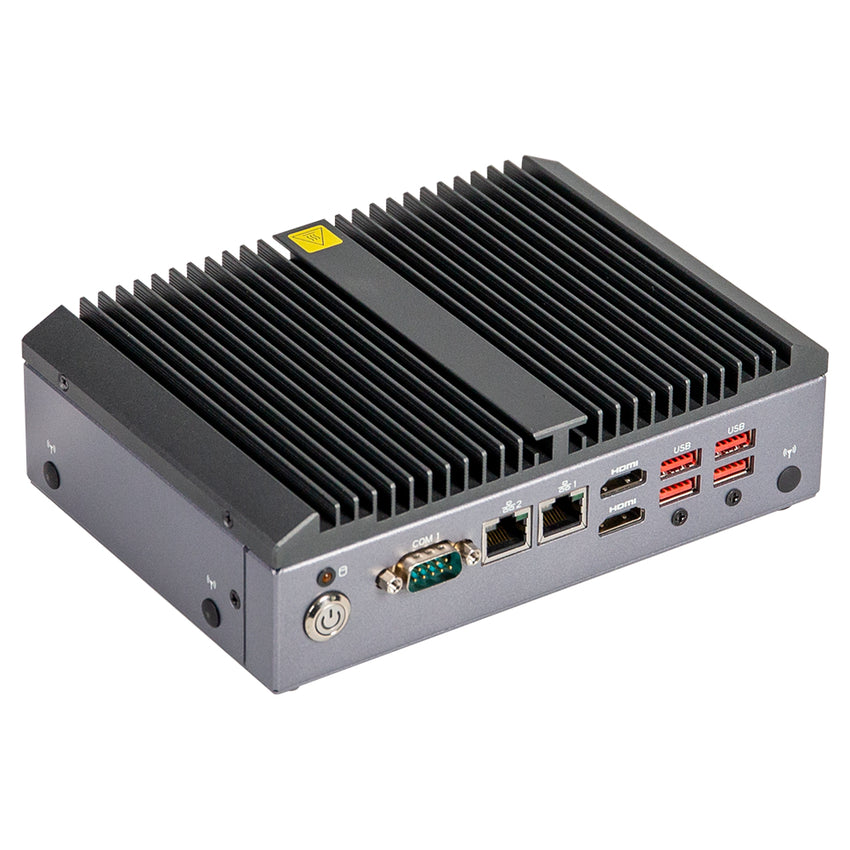

| Front Panel I/O |
1 x HDD LED
1 x Power Button with LED
1 x COM (RS232/422/485 & RI/5V/12V)
2 x RJ45 2.5GbE LAN
2 x HDMI
4 x USB 3.2 (Gen2x1)
1 x Antenna Hole
|
| Side Panel I/O |
2 x Antenna Holes |
| Drive Support |
1 x 2.5" SATA Drive Bay
1 x M.2 2280 slot (PCI-E 4.0 x4/SATA, M-Key)
|
| OS Support |
Windows 10
Windows 11
|
| Power Supply |
9-36V DC-IN
135W 19.5V Adapter |
| Case Dimensions |
178 x 125 x 52.7mm
7.0" x 4.9" x 2.07" (in inches)
|
| Cooling |
N/A |
| Mounting |
Optional Wallmount Bracket
Optional VESA Bracket
|
| Environmental |
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Non-operating Temperature: -40°C to 85°C (-40°F to 185°F)
Operating Humidity: 0% to 95% (non-condensing)
Non-Operating Humidity: 0% to 95% (non-condensing)
Operating Vibration: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-Operating Vibration: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Operating Shock: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Warranty |
1-Year Warranty on Parts and Labor |
