| Manufacturer | GigaIPC |
| Product ID | QBiX-Pro-BYTA1900H-A1 |
| CPU | Intel Celeron J1900 Processor 2.00 - 2.42 GHz 4 Cores / 4 Threads 10W TDP, 2MB L2 Cache |
| Chipset | SoC |
| Memory | 1 x DDR3L SODIMM slot Maximum 8GB Capacity 1333MHz Low Voltage 1.35V Required |
| Video | Intel HD Graphics 500 688 - 854 MHz Supports Dual Display HDMI Max Resolution: 3840x2160@30Hz VGA Max Resolution: 2560x1600@60Hz (with compatible displays) |
| Audio | Realtek ALC269 HD Audio |
| Storage Technology | 1 x SATA3 Ports 1 x M.2 slot (SATA only) |
| Connectivity | 2 x Intel i211AT GbE LAN |
| Expansion Slots | 1 x Mini PCI-E slot (PCIe x1 + USB 2.0) with SIM slot |

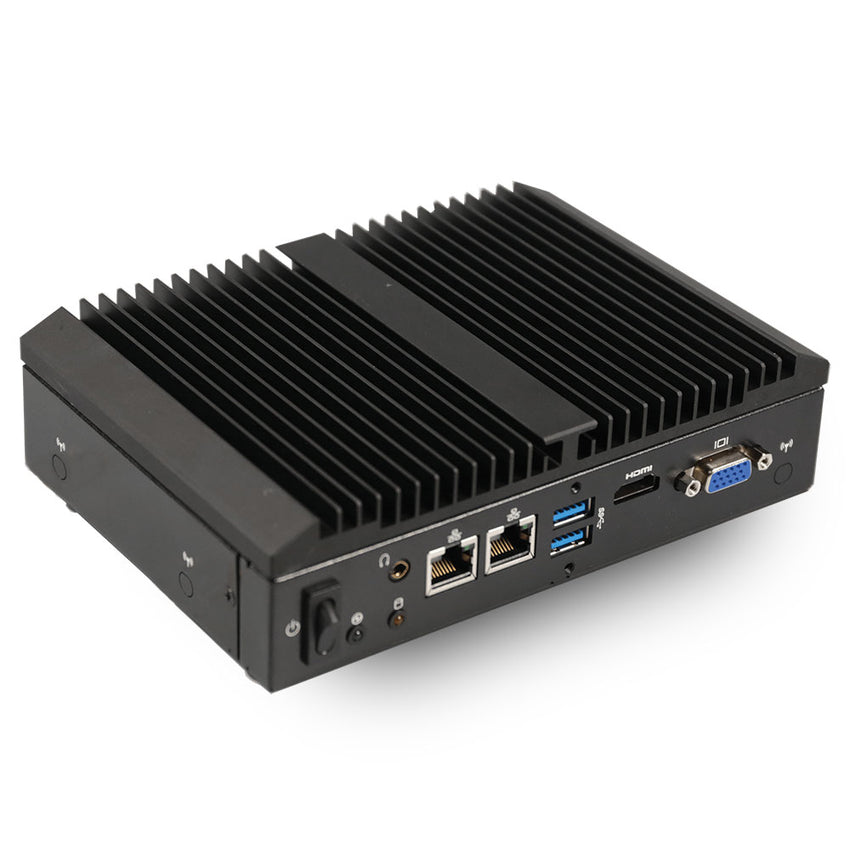

| Front Panel I/O | 1 x Power Button 2 x Status LED (Power, HDD) 1 x Audio Out 2 x RJ45 GbE LAN 2 x USB 3.0 1 x HDMI 1 x VGA |

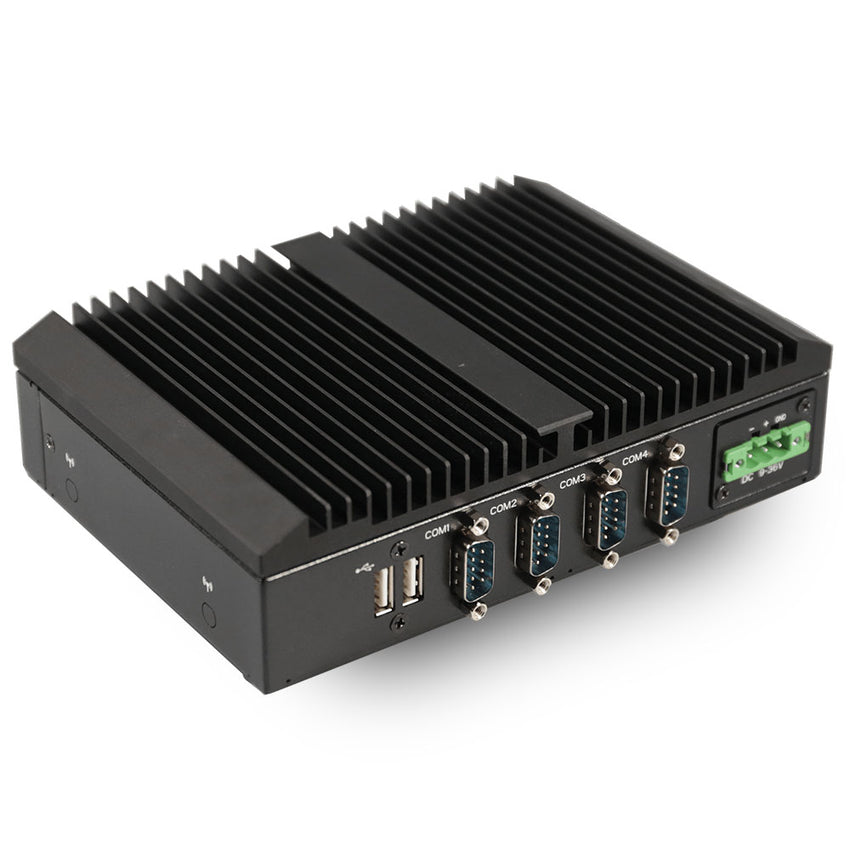

| Rear Panel I/O | 2 x USB 2.0 1 x Serial COM (RS232/422/485, RI/5V/12V) 3 x Serial COM (RS232) 1 x 3-Pin Terminal Block Connector |
| Drive Support | 1 x 2.5" Drive Bay 1 x M.2 2280 slot (SATA) |
| Power Supply | 9-36V Terminal Block Connector |
| Case Dimensions | 178 x 125 x 52.7mm 7" x 5" x 2.1" (in inches, approximate) |
| Environmental | Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-Operating Temperature: -20°C to 70°C (-4°F to 158°F) Operating Humidty: 0% - 90% (non-condensing) Non-Operating Humidity: 0% - 95% (non-condensing) |
| Warranty | 1-Year Manufacturer's Limited Warranty |
PRODUCT ID: QBiX-Pro-BYTA1900H-A1
