| Manufacturer |
GigaIPC |
| Product ID |
QBiX-Pro-ARUA255H-A1 |
| CPU |
Intel® Core™ Ultra 7 Processor 255U
Intel® 3, 12 Cores (2P+8E+2LPE), 14 Threads
Up to 5.20 GHz |
| Chipset |
SoC
Onboard TPM 2.0 (INFINEON SLB9672XU2.0) |
| Memory |
2 x DDR5 SO-DIMM Sockets, Maximum 96GB, Dual Channel DDR5 5600 MHz
or
2 x DDR5 CSO-DIMM Sockets, Maximum 128GB, Dual Channel DDR5 6400 MHz |
| Video |
Intel® Integrated Graphics
2 x HDMI 2.1: Max Resolution 7680x4320 @60Hz
Supports 2 Independent Displays
HDMI 2 Supports HDMI CEC |
| Audio |
Realtek® ALC269 |
| Storage |
1 x 2.5" HDD/SSD Bay (SATA 6Gb/s)
1 x M.2 2280 M-Key (PCIe Gen 4x4, SATA 6Gb/s) |
| Connectivity |
2 x 2.5GbE LAN (Intel® I226V & I226LM) |
| Expansion Slots |
1 x M.2 2230 E-Key
1 x Full-size Mini PCIe with SIM Slot |

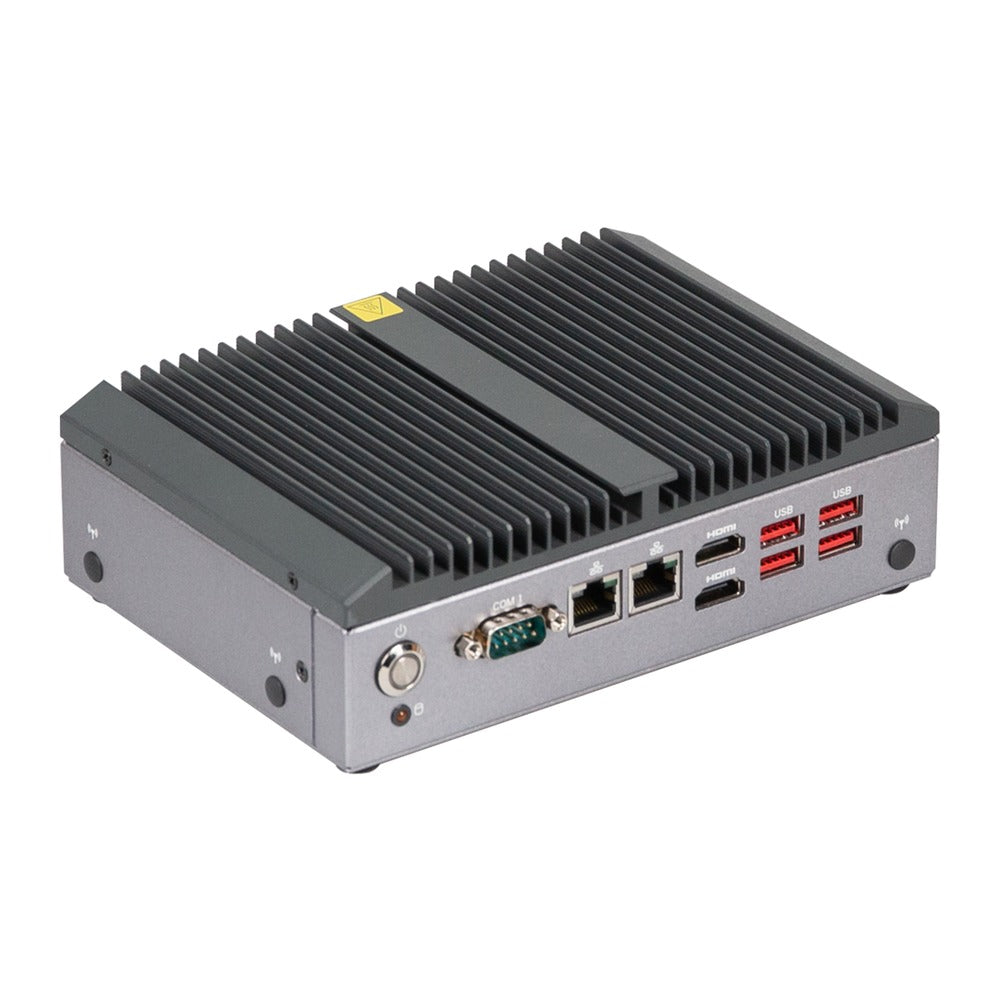

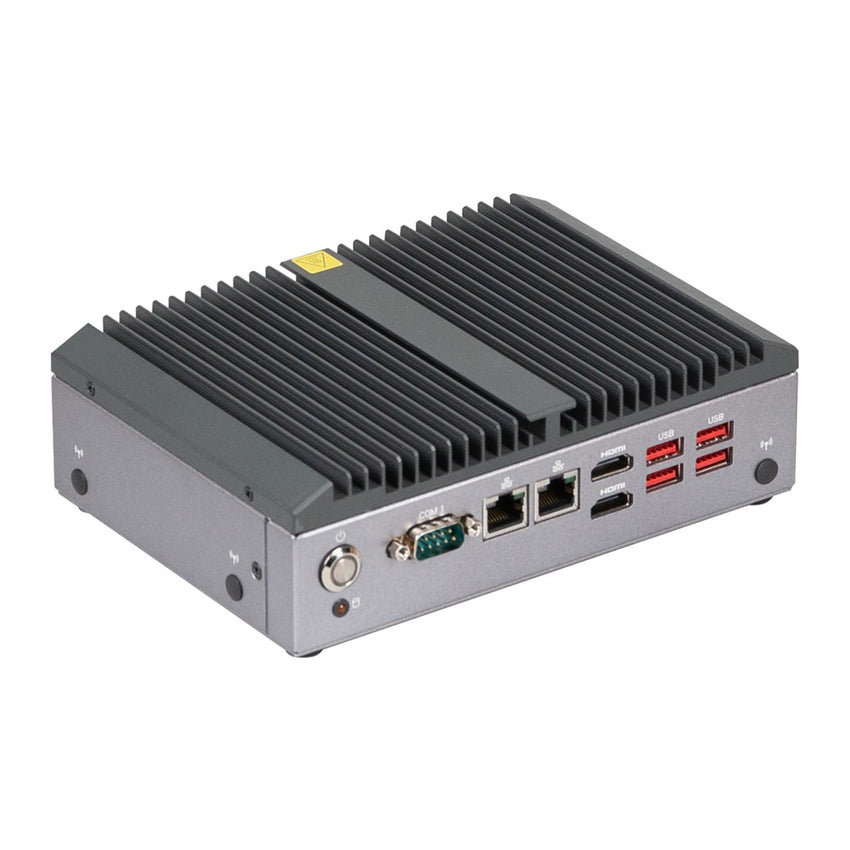

| Front I/O |
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
2 x HDMI
1 x Power Button with LED
1 x HDD LED
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x External Antenna Hole (Optional) |

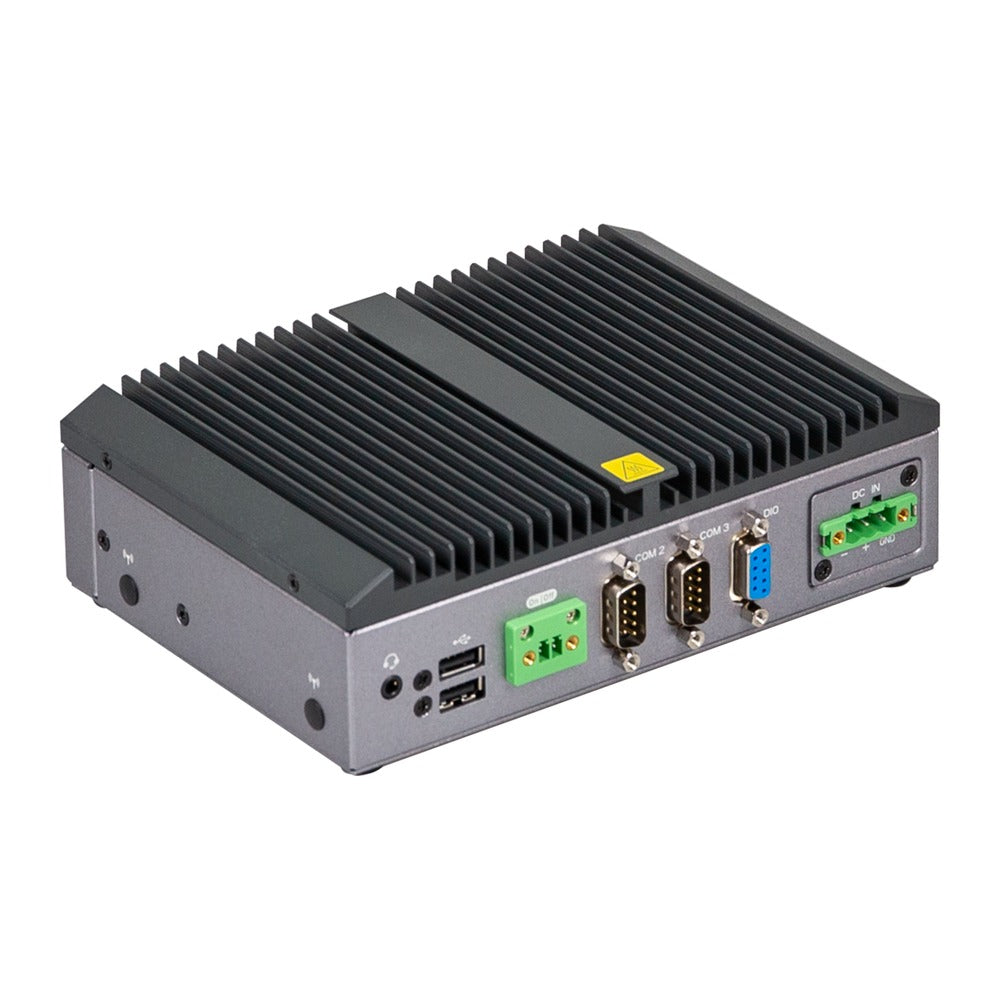

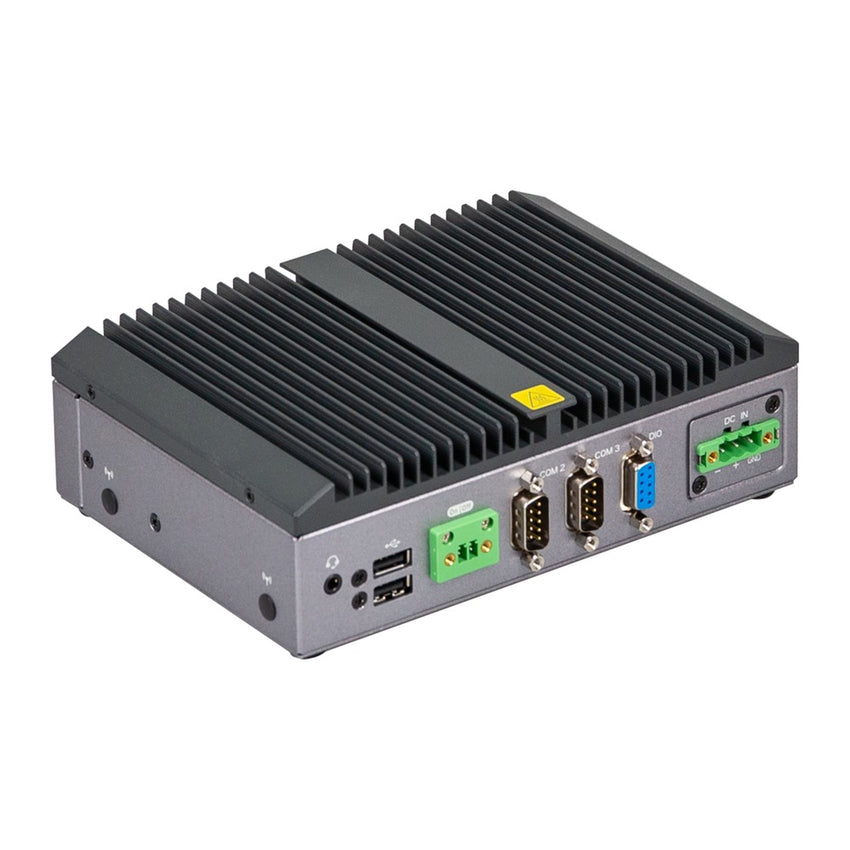

| Rear I/O |
2 x USB 2.0
2 x COM Ports (RS-232/422/485)
1 x GPIO (8-bit)
1 x Combo Audio Jack (Headphone & Headset)
1 x Remote Control
1 x 3-Pin Terminal Block |
| Side I/O |
2 x External Antenna Holes (Optional) |
| Power Supply |
+9V ~ 36V DC Input (Full Range), 3-Pin Terminal Block |
| Case Dimensions |
178 x 125 x 52.7mm
7.01" x 4.92" x 2.07" (in inches) |
| Case Cooling |
Fanless |
| Mounting |
Wall Mount Bracket (Optional)
VESA 75/100 Mount (Optional) |
| Environmental |
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Non-operating Temperature: -40°C to 85°C (-40°F to 185°F)
Operating Humidity: 20% to 95% @ 40°C (non-condensing)
Non-operating Humidity: 95% @ 60°C (non-condensing)
Operating Vibration: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operating Vibration: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Operating Shock: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Use wide-temperature memory and storage |
| Packing List |
1 x QBiX-Pro Embedded System
4 x M3x8L Screws for 2.5" HDD
1 x Thermal Pad for Memory
1 x SATA Cable
1 x 2-Pin Terminal Block Male Plug
1 x 3-Pin Terminal Block Male Plug |
| Warranty |
1-Year Warranty on Parts and Labor |
