| Manufacturer | GigaIPC |
| Part Number | QBiX-Pro-AMDA2314H-A1 |
| CPU |
AMD Ryzen R2314 Processor 4 Cores / 4 Threads 2.1 - 3.5 GHz 12 - 35W TDP, 4 MB L3 Cache |
| Chipset |
SoC Onboard Infineon SLB9665TT2.0 TPM 2.0 |
| Memory |
2 x DDR4 SODIMM slots Maximum 64GB Capacity 2667 MHz Dual Channel |
| Video |
AMD Radeon Graphics (CPU Dependent) HDMI Max Resolution: 4096x2160@60Hz Supports 4 Independent Displays |
| Audio | Realtek ALC269 |
| Storage Technology |
1 x SATA Port 1 x M.2 2280 slot (PCI-E 3.0 x4, SATA) |
| Connectivity |
2 x Realtek RTL8111H-CG GbE LAN |
| Expansion Slots |
1 x M.2 2230 slot (E Key) 1 x Mini PCI-E with SIM slot |
| Power |
3-Pin Terminal Block 9 - 36VDC |

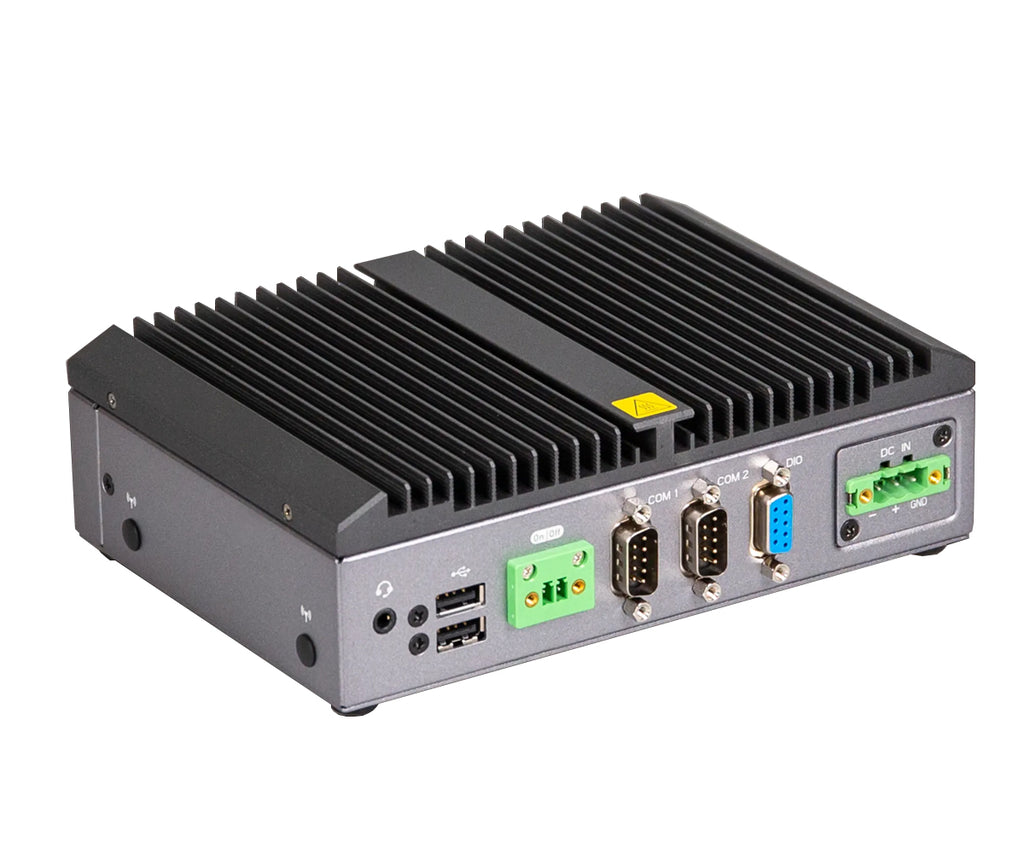

| Rear I/O |
1 x 3.5mm Audio I/O 2 x USB 2.0 1 x 2-pin Terminal Block 2 x COM (RS232/422/485) 1 x DIO 1 x 3-Pin Terminal Block DC-IN 9-36V |

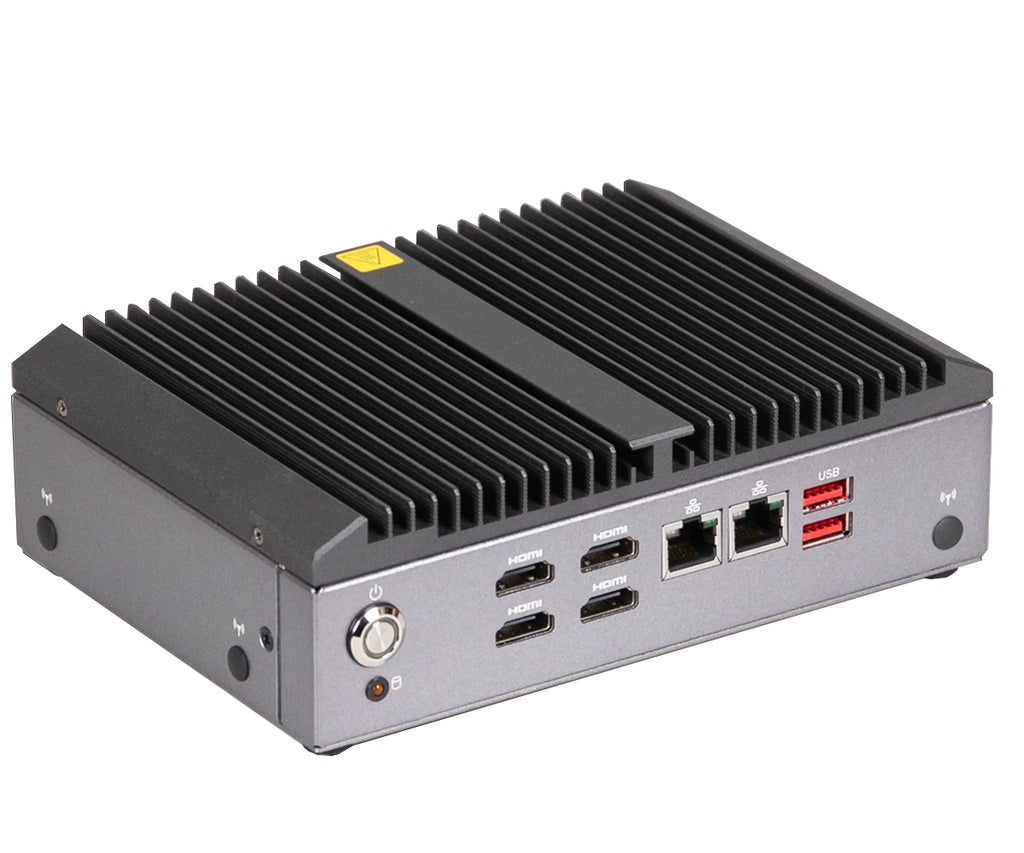

| Front I/O |
1 x Power Button with LED 1 x HDD Status LED 4 x HDMI 2.0 2 x RJ45 GbE LAN 2 x USB 3.2 (Gen2x1) |
| OS Support | Windows 11 |
| Case Dimensions |
178 x 125 x 52.7mm 7.0" x 4.9" x 2.07" (in inches) |
| Mounting |
Optional Wallmount Optional VESA |
| Environmental |
Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 20% to 95% (non condensing) Storage Humidity: 20% to 95% (non condensing) Operation Vibration: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis Non-operation Vibration: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis Operation Shock: IEC 60068-2-27, 50 G, half sine, 11 ms duration |
| Warranty | 1-Year Manufacturer's Limited Warranty |
