| Manufacturer | GigaIPC |
| Product ID | QBiX-Pro-ADNAN97H-A2 |
| CPU | Intel Alder Lake-N N97 Processor 4 Cores 3.6 GHz 12W TDP, 6MB Intel Smart Cache |
| Chipset | SoC Onboard INFINEON SLB9670VQ2.0 TPM 2.0 |
| Memory | 1 x DDR5 SODIMM slot Maximum 16GB Capacity 4800 MHz |
| Video | Intel UHD Graphics 1.20 GHz 24 Execution Units HDMI Max Resolution: 4096x2160@60Hz Supports 2 Independent Displays |
| Audio | Realtek ALC897 |
| Storage Technology | 1 x SATA3 6.0 GB/s Ports 1 x M.2 2280 slot: PCIe x2 |
| Connectivity | 2 x Intel I225V 2.5GbE LAN |
| Expansion Slots | 1 x M.2 2280 slot: PCIe x2 1 x M.2 2230 slot (E Key) 1 x Mini PCI-E slot with SIM slot (Full Size) |
| Rear Panel I/O | 2 x USB 2.0 1 x GPIO (8-bit) 1 x COM (RS232/422/485 & RI/5V/12V) 1 x COM (RS232/422/485) 1 x COM (RS232) 1 x 12-36V DC-IN |

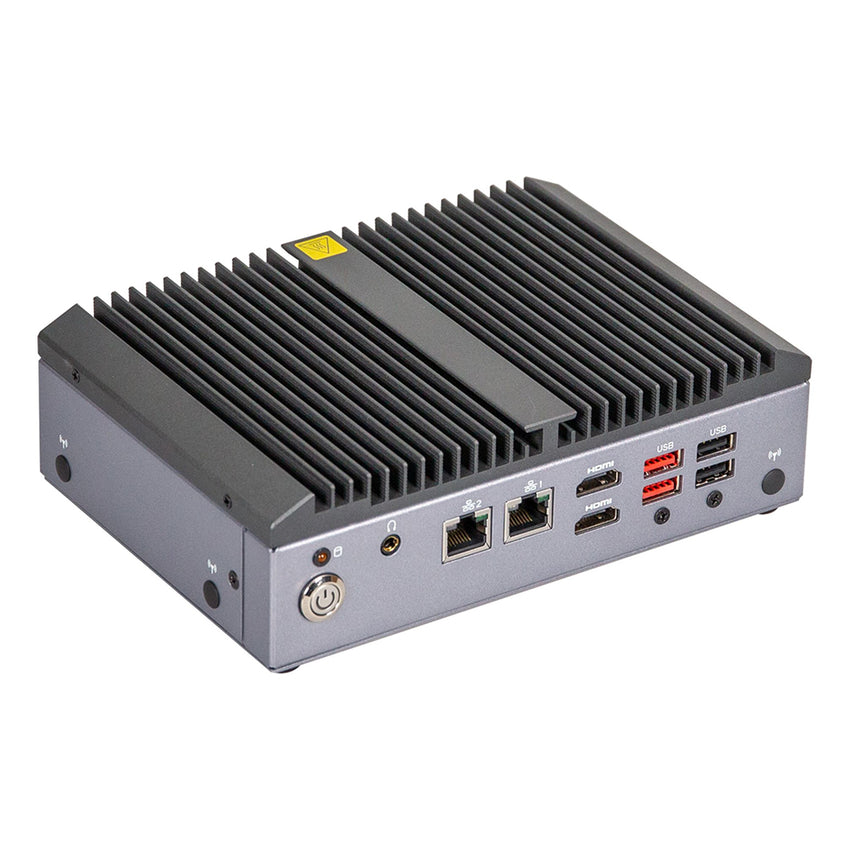

| Front Panel I/O | 1 x Status LED (HDD) 1 x Power Button with LED 1 x Headphone Jack 2 x RJ45 2.5GbE LAN 2 x HDMI 2 x USB 3.2 (Gen2x1) 2 x USB 2.0 3 x Antenna Cutout |
| Drive Support | 1 x 2.5" Drive Bay 1 x M.2 2280 slot (PCIe x2) |
| Power Supply | 1 x 12-36V DC-IN 65W 19V AC/DC Adapter Included |
| Case Dimensions | 178 x 125 x 52.7mm 7.0" x 4.9" x 2.1" (in inches) |
| Environmental | Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-operating Temperature: -40°C to 85°C (-4°F to 185°F) Operating Humidity: 0% to 90% (non-condensing) Non-operating Humidty: 0% to 95% (non-condensing) Operating Vibration: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 Non-operating Vibration: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis Operating Shock: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: QBiX-Pro-ADNAN97H-A2
