| Manufacturer |
GigaIPC
|
| Part Number |
QBiX-Pro-ADLA1235EH-A1
|
| CPU |
Intel Core i5-1235U Processor
3.3 - 4.4 GHz
2 P-Cores / 8 E-Cores / 12 Threads
12-55W, 12MB Intel Smart Cache
|
| Chipset |
SoC
|
| Memory |
2 x DDR4 SODIMM slots
Maximum 64GB Capacity
3200 MHz
Dual Channel
|
| Video |
Intel Iris Xe Graphics
1.20 GHz
80 Execution Units
HDMI Max Resolution: 4096x2160@60Hz
Supports 2 Independent Displays
|
| Audio |
Realtek ALC269
|
| Storage Technology |
1 x SATA 6Gb/s Connector
1 x M.2: PCI-E 4.0 x4 or SATA
|
| Connectivity |
2 x Intel I226V 2.5GbE LAN
|
| Expansion Slots |
1 x M.2 2230 slot (E Key)
1 x Mini PCI-E with SIM slot (Full Size)
|

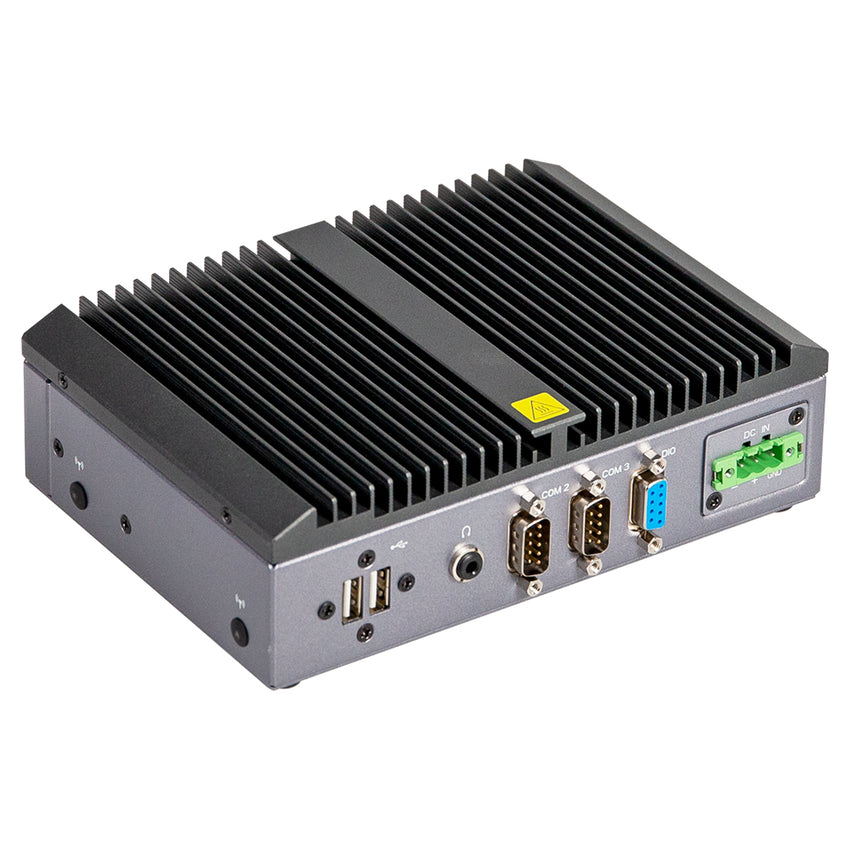

| Rear I/O |
2 x USB 2.0
1 x Audio Jack
2 x COM (RS232/422/485)
1 x GPIO (8 Bits)
1 x 3-Pin Terminal Block 12-36V DC-IN
|

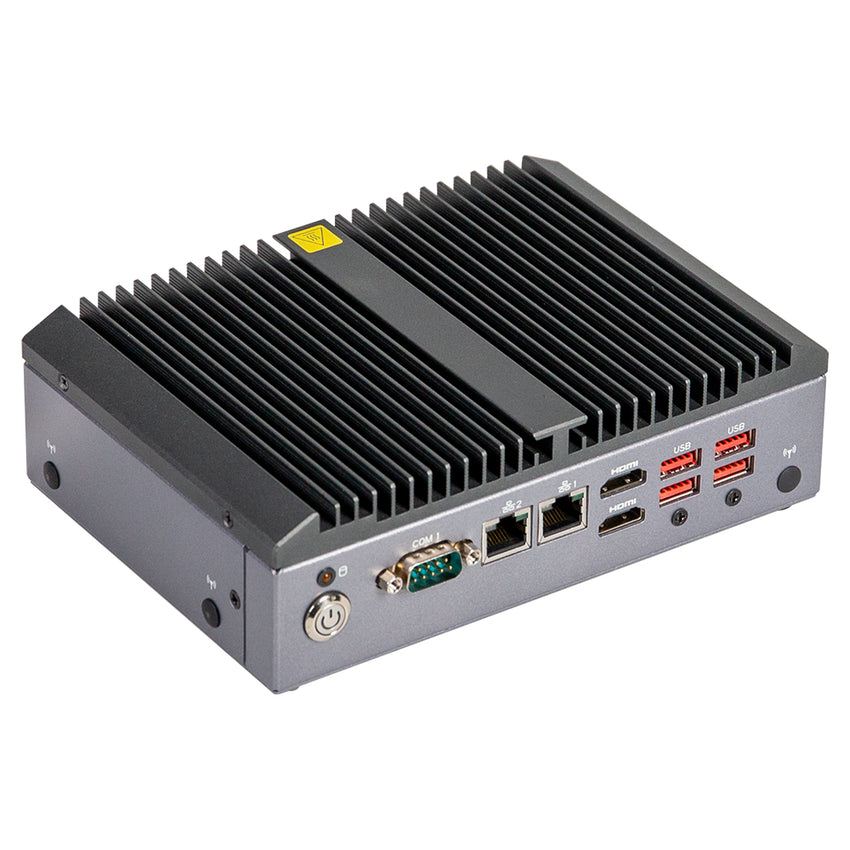

| Front Panel I/O |
1 x Status LED (HDD)
1 x Power Butotn with LED
1 x COM RS232/422/485 & RI/5V/12V)
2 x RJ45 2.5GbE LAN
2 x HDMI
4 x USB 3.2 (Gen2x1)
3 x Antenna Cutout
|
| Drive Support |
1 x 2.5" SATA Drive Bay (7mm Maximum Height)
1 x M.2 2280 slot (PCI-E 4.0 x4/SATA)
|
| OS Support |
Windows 11
Windows 10
|
| Power Supply |
3-Pin Terminal Block 12-36V DC-IN
Includes Terminal Block Male Plug
|
| Case Dimensions |
178 x 125 x 52.7mm
7.0" x 4.9" x 2.1" (in inches)
|
| Mounting |
N/A
|
|
Environmental |
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Non-operating Temperature: -40°C to 85°C (-40°F to 185°F)
Operating Humidity: 0% to 90% (non-condensing)
Non-operating Humidty: 0% to 95% (non-condensing)
Operation Vibration: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation Vibration: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Operation Shock: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
|
| Warranty |
1-Year Warranty on Parts and Labor
|
