| Manufacturer | GigaIPC |
| Product ID | QBiX-DR-EHLA6412H-A1 |
| CPU |
Intel Celeron J6412 Processor 2.0 - 2.6 GHz 4 Cores / 4 Threads 10W TDP, 1.5 MB L2 Cache |
| Chipset |
SoC |
| Memory |
1 x DDR4 SODIMM slot Maximum 32GB Capacity 3200 MHz |
| Video |
Intel UHD Graphics 400 - 800 MHz 16 Execution Units HDMI Max Resolution: 4096x2160@60Hz VGA Max Resolution: 1920x1200@60Hz Supports 2 Independent Displays |
| Audio | Realtek Audio Codec |
| Storage Technology |
1 x SATA 6Gb/s 1 x M.2: SATA (M Key) |
| Connectivity |
2 x Intel I210AT GbE LAN |
| Expansion Slots |
1 x M.2 2230 slot (E Key) 1 x M.2 3052/3042 slot (B Key) with SIM Slot 1 x Vertical USB 2.0 |

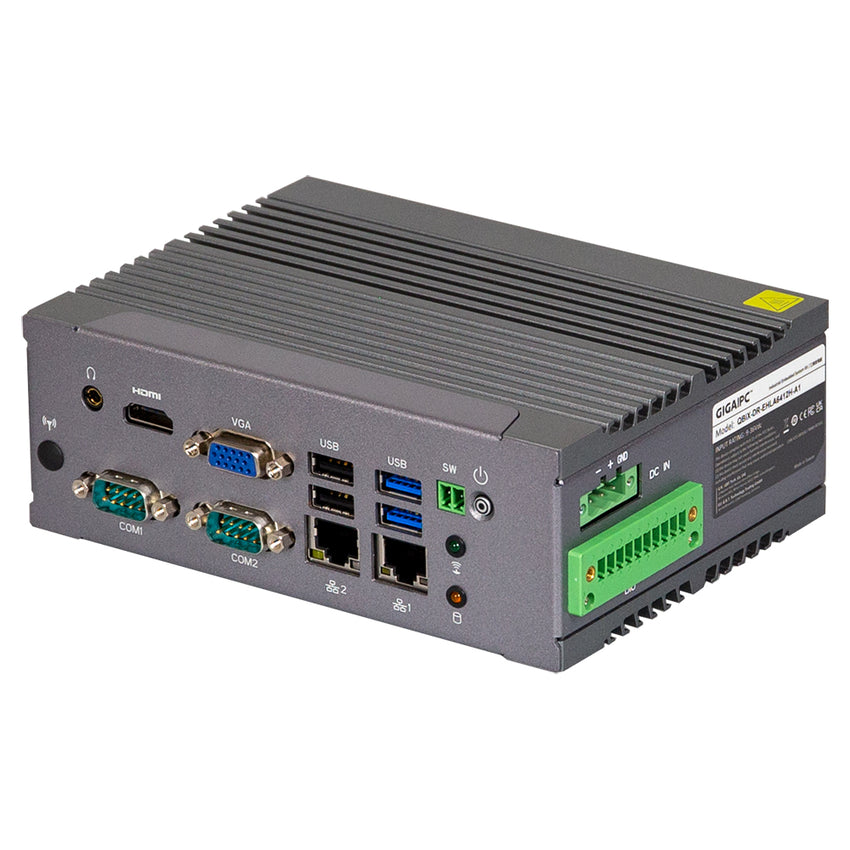

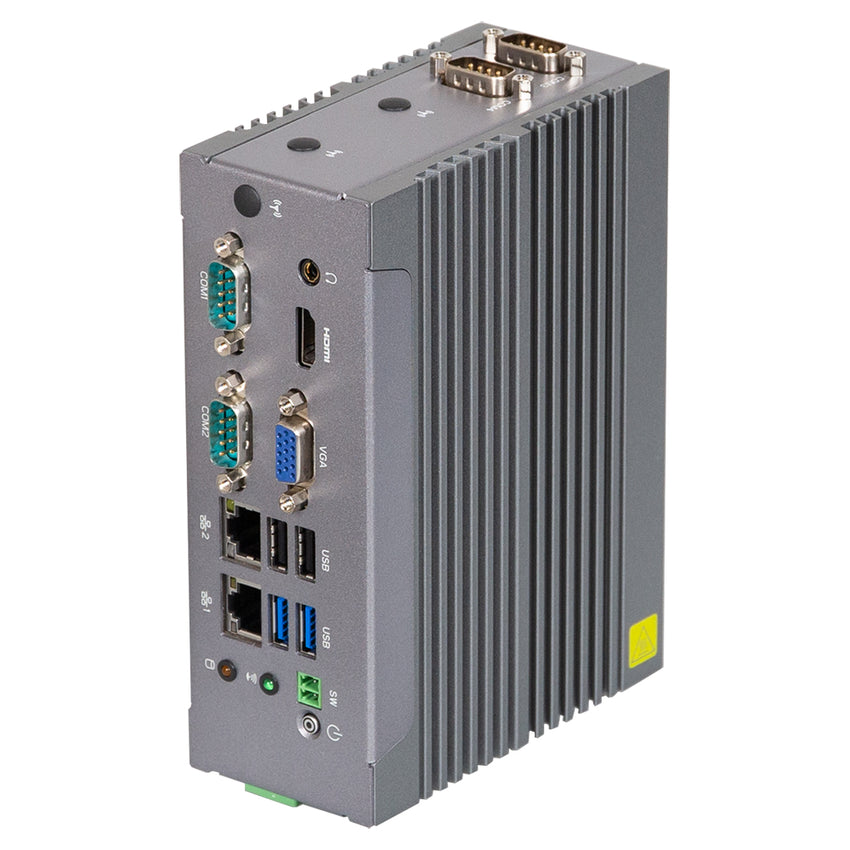

| Front Panel I/O |
1 x Antenna Cutout 1 x Audio Jack 1 x HDMI 2 x COM (RS232/422/485 & RI/5V/12V) 1 x VGA 2 x USB 2.0 2 x RJ45 GbE LAN 2 x USB 3.2 (Gen1) 1 x 2-Pin Remote Switch 2 x Status LED (WIFI, HDD) 1 x Power Button with LED |
| Top Panel I/O |
2 x COM (RS232/422/485 & RI/5V/12V) 2 x Antenna Cutout |
| Bottom Panel I/O |
1 x 3-Pin 9-36V Terminal Block DC-IN 1 x GPIO (8-Bit) |
| Drive Support |
1 x 2.5" SATA Drive Bay (7mm Maximum Height) 1 x M.2 2280 slot (M Key, SATA) |
| Power Supply | 1 x 3-Pin 9-36V Terminal Block DC-IN |
| Case Dimensions |
160 x 118 x 62.6mm 6.3" x 4.6" x 2.5" (in inches) |

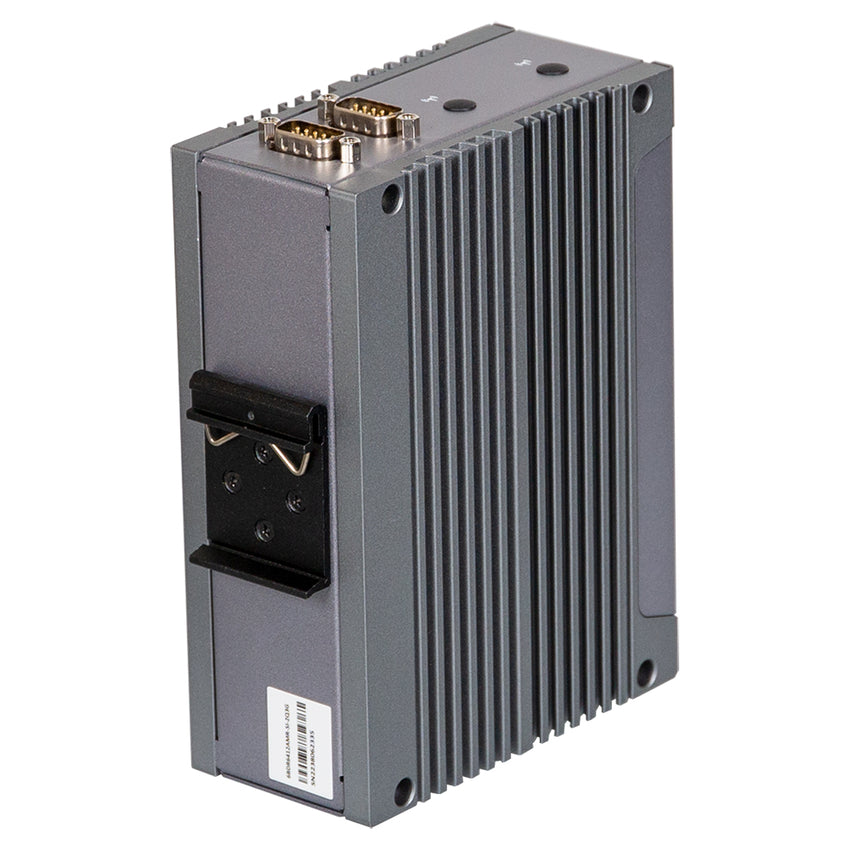

| Mounting |
DIN Rail |
| Environmental |
Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 0% to 90% (non-condensing) Non-operating Humidty: 0% to 95% (non-condensing) Operating Vibration: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 Non-operating Vibration: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis Operating Shock: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: QBiX-DR-EHLA6412H-A1
