Manufacturer	GigaIPC
Product ID	QB-N150A
CPU	Intel® Processor N150 Intel® 7, 4 Cores Up to 3.60 GHz 6W TDP
Chipset	SoC Onboard TPM 2.0 (NUVOTON NPCT760AABYX)
Memory	1 x DDR5 SO-DIMM Slot Maximum 16GB Capacity Single Channel DDR5 4800 MHz
Video	Intel® UHD Integrated Graphics 2 x HDMI 2.0: Max Resolution 4096x2160 @60Hz 1 x DP 1.4 via USB Type-C (DP Alt. mode): Max Resolution 4096x2160 @60Hz Supports 3 Independent Displays
Audio	Realtek® ALC269
Storage	1 x M.2 2280 M-Key (PCIe Gen 3x1 / SATA 6Gb/s)
Connectivity	2 x Realtek® RTL8111H GbE LAN
Expansion Slots	1 x M.2 2230 E-Key (WiFi/BT)

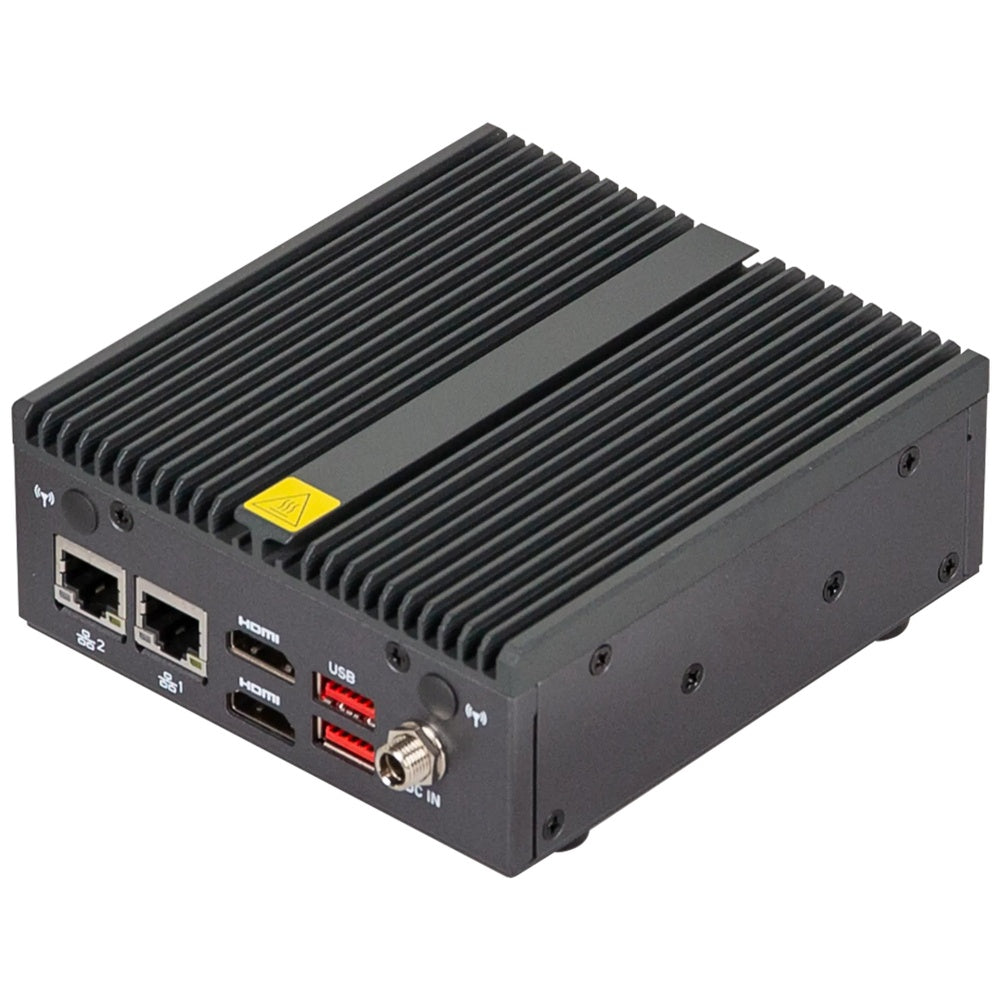

Rear Panel I/O	2 x HDMI 2.0 2 x RJ45 GbE LAN Ports 2 x USB 3.2 Gen 2x1 2 x External Antenna Holes (Optional) 1 x Screw-Type Lockable DC Jack

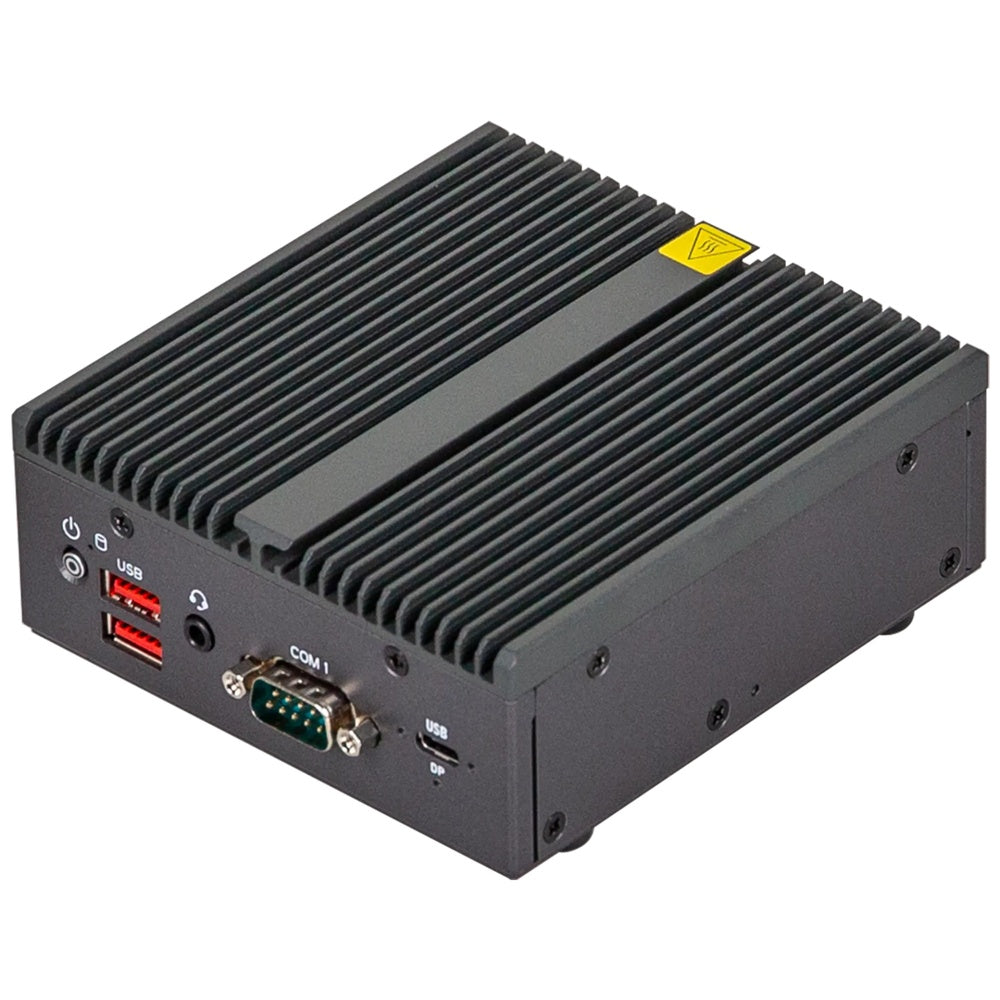

Front Panel I/O	2 x USB 3.2 Gen 2x1 1 x USB 3.2 Type-C with DP 1.4b (DP Alt. mode) 1 x Power Button with LED 1 x COM Port (RS-232) 1 x Combo Audio Jack (Headphone & Headset)
OS Support	Windows 10 Windows 11
Power Supply	+12V~19V DC Input 19V / 65W AC-DC Adapter Included 100-240VAC
Case Dimensions	118 x 109.4 x 44.4mm 4.65" x 4.31" x 1.75" (in inches)
Mounting	Includes VESA Bracket and VESA Screws
Environmental	Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 40°C @ 20-95% (non-condensing) Non-Operating Humidity: 60°C @ 95% (non-condensing) Operating Vibration: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD Non-Operating Vibration: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis Operating Shock: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Warranty	1-Year Warranty on Parts and Labor
