80W DC-DC Powerboard with 60W AC-DC Power Adapter
Part Number	PSDC80AC60

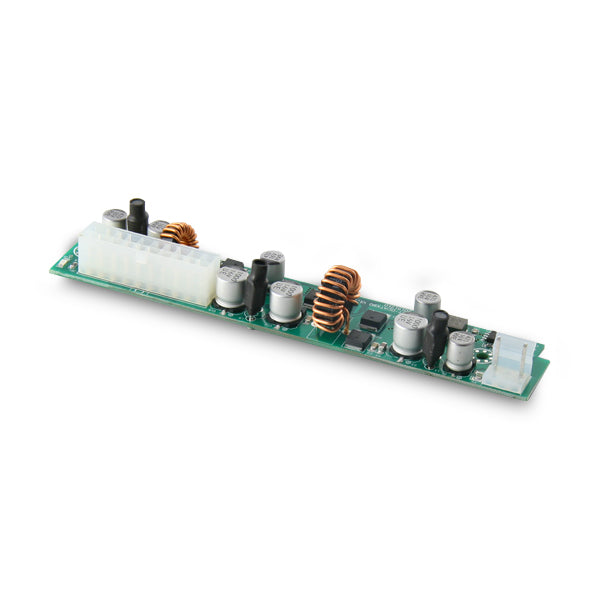

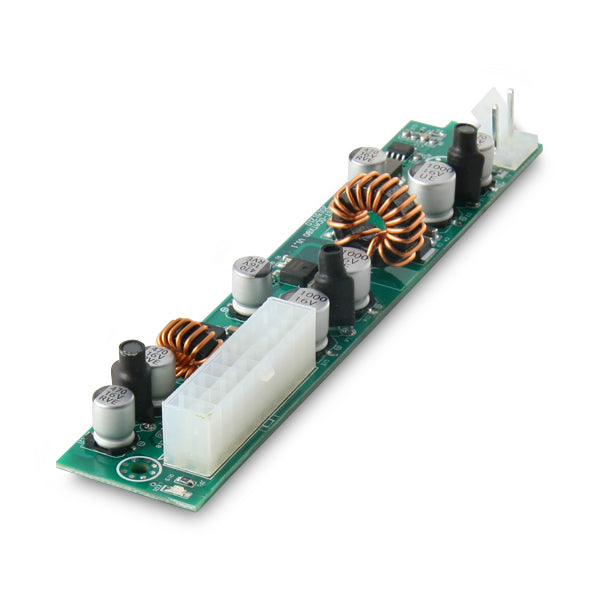

80W DC-DC Powerboard
Input Voltage	DC 11.5 - 12.5 V
Maximum Output	80W
+5V	Power (W): 45W Peak (A): 9A Max Ripple & Noise: 50mV
+3.3V	Power (W): 19.8W Peak (A): 6A Max Ripple & Noise: 50mV
+12V	Power (W): 48W Peak (A): 4A Max Ripple & Noise: 120mV
-12V	Power (W): 6W Peak (A): 0.5A Max Ripple & Noise: 120mV
+5VSB	Power (W): 10W Peak (A): 2A Max Ripple & Noise: 50mV
Operating Temperature	-20C to 40C @ 100% load 60C @ 60% load 20% - 90% RH
Storage Temperature	-20C to 85C 10% - 95% RH
Cable Length	8 inches 203.2mm
Dimensions	157mm x 30mm x 30mm

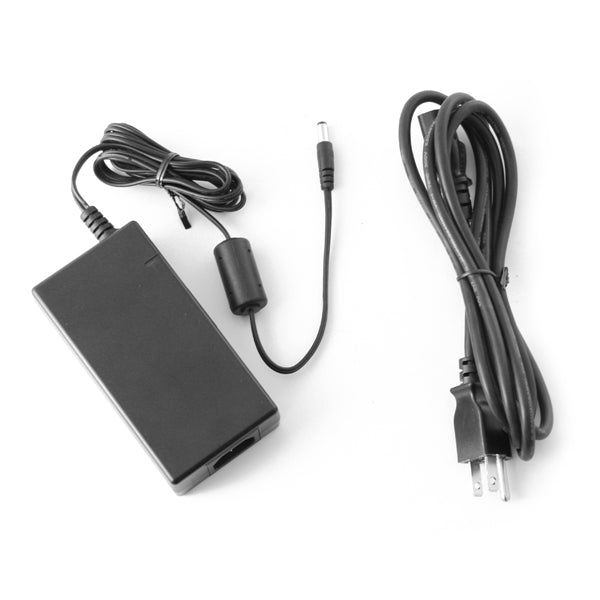

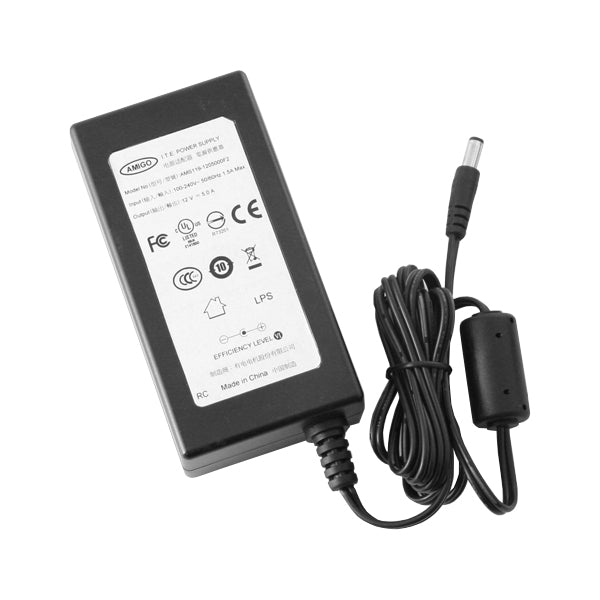

60W AC-DC Efficiency Level VI Power Adapter
AC Input	AC 100-240V 47-63Hz
DC Output	12V DC 5A (60W Max.)
Connectors	2.5/5.5mm Barrel Plug (inner/outer) IEC Power Cord

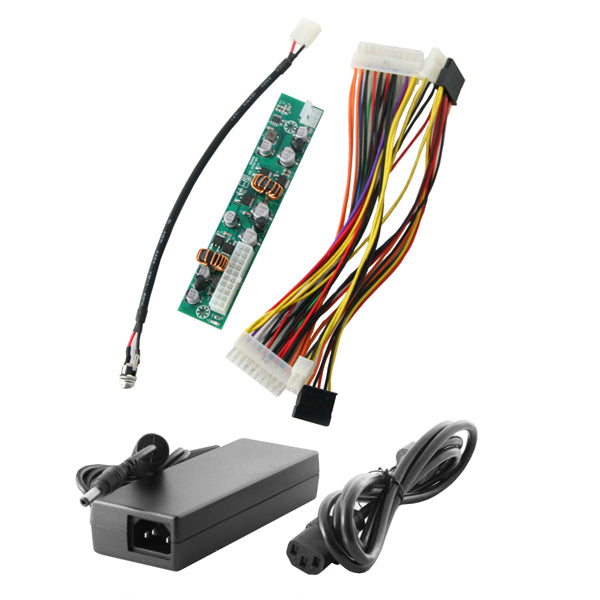

Included in Box	80W DC-DC Powerboard ATX Power Cables DC-Input Jack Cable 60W Efficiency Level VI AC-DC Adapter 6ft IEC Power Cord
