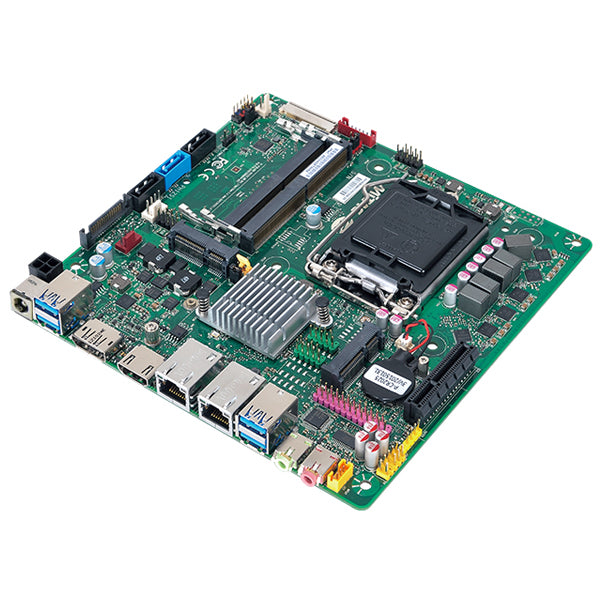

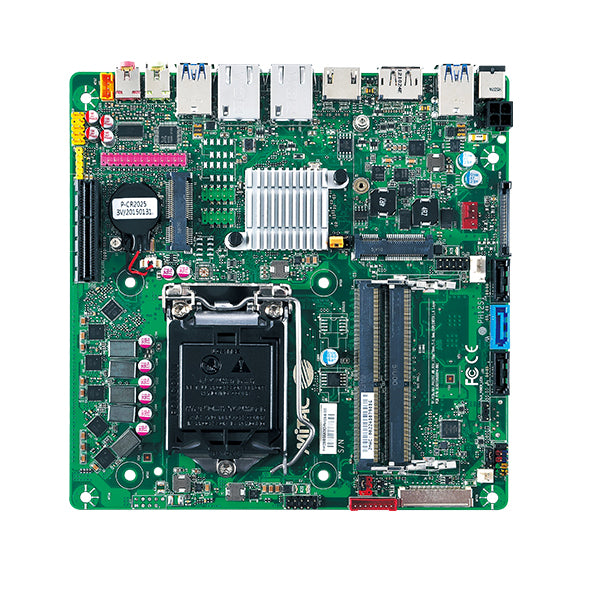

| Product ID | PH12SI-Q170-12V |
| CPU | Supports Intel Skylake/Kabylake Processors Socket LGA1151 65W Max TDP Intel vPro Support |
| Chipset | Intel Q170 Chipset |
| Memory | Supports 2 x DDR4 SODIMM 2133/2400 MHz Maximum 32GB Dual Channel, Unbuffered Non-ECC |
| Video | Intel HD Graphics (CPU Dependant) DisplayPort HDMI |
| Audio | Realtek ALC662 HD Audio Codec |
| Storage | 4 x SATA3 6Gb/s Supports RAID 0, 1 Mini PCI-E with mSATA Support |
| Connectivity | 1 x Intel I219 GbE LAN 1 x Intel I210 GbE LAN |
| Expansion Slots | 1 x PCI-E 3.0 x4 slot 1 x Mini PCI-E slot (Full Sized) 1 x Mini PCI-E slot (Half Sized) |
| Power | 12V DC-IN (2.5mm/ ID, 5.5mm/ OD) Alternate ATX 4pin 12V |

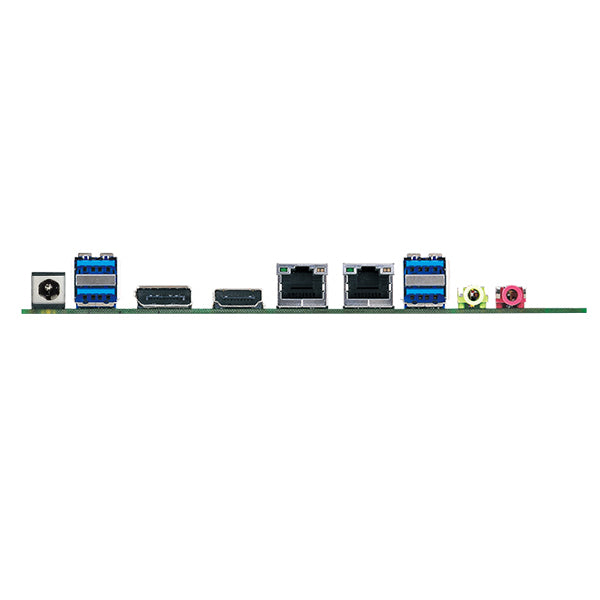

| Rear Panel I/O | 1 x 12V DC-IN 4 x USB 3.0 1 x DisplayPort 1 x HDMI 2 x RJ45 LAN 2 x Audio I/O |
| Onboard I/O Headers | 1 x Front Audio header 1 x DMIC header 1 x Stereo speaker audio header 3 x USB 2.0 header (up to 5 USB ports) 4 x Serial Port header 1 x MiAPI configurable header 1 x CPU Fan header |
| OS Support | Skylake CPU: Win7, Win10 Kabylake CPU: Win10 |
| Form Factor | Thin Mini-ITX 170mm x 170mm 6.7" x 6.7" (in inches) |
| Warranty | 1-Year Manufacturer's Warranty |
| Compliance | CE, FCC |
| Environment | Operating Temperature: 0°C to 60°C Storage Temperature: -20°C to 70°C |
| Included in Box | Mitac PH12SI-Q170-12V Motherboard SATA Cable SATA Power Cable Full height I/O Shield Half height I/O Shield Driver CD Quick Guide |
PRODUCT ID: PH12SI-Q170-12V
