| Manufacturer |
Mitac |
| Part Number |

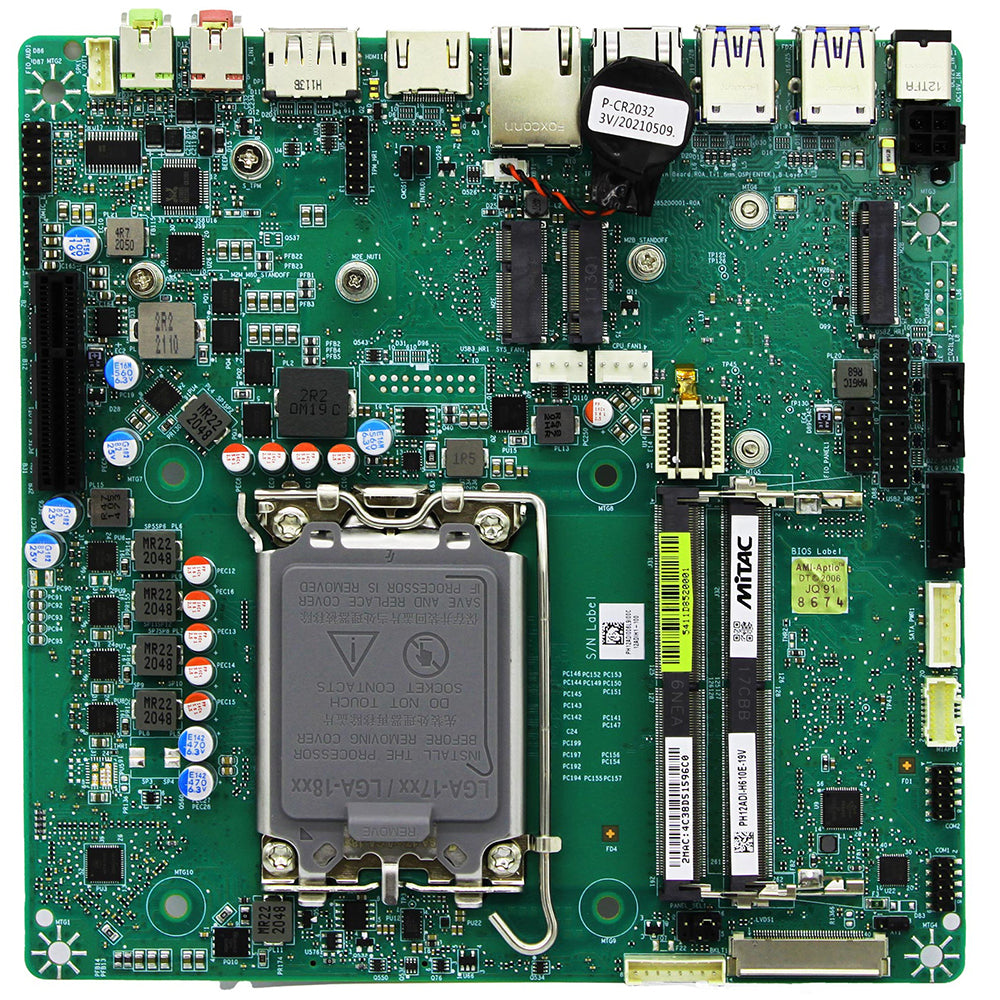

PH12ADI-Q670-12V |
| CPU |
Supports Intel 12th/13th Gen Core Processors, Alder Lake/Raptor Lake
LGA1700
Supports up to 65W TDP
Supports Intel vPro with compatible processor
|
| Chipset |
Intel Q670 |
| Memory |
2 x DDR5 SODIMM Slots
Maximum 64GB Capacity
4800 MHz
Non-ECC, Unbuffered Only |
| Video |
Intel UHD Graphics 770 (CPU Dependent)
HDMI Max Resolution: 4096x2160@30Hz
DisplayPort Max Resolution: 4096x2304@60Hz
LVDS Max Resolution: 1920x1200@60Hz
Supports Triple Displays |
| Audio |
Realtek ALC888 Co-Lay ALC897 |
| Storage Technology |
2 x SATA3 6Gb/s Ports
1 x M.2 2280/2242 slot: PCI-E x4, SATA
1 x Mini PCI-E slot: PCIe/USB/SATA |
| Connectivity |
1 x Intel I225V 2.5GbE LAN
1 x Intel I219-LM GbE LAN
|
| Expansion Slots |
1 x PCI-E 3.0 x4 slot
1 x M.2 3042 slot (B Key, USB/PCIe/SATA)
1 x M.2 2230 slot (E Key, PCIe x1/USB2.0/SMBus/CNVi)
1 x Mini PCI-E slot (PCIe/USB/SATA, Full Size) |
| Power |
1 x 12V DC-IN (2.5mm/ID, 5.5mm/ID)
1 x Alternate 4-Pin ATX Power Connector
|
| Rear I/O |
1 x 12V DC-IN
4 x USB 3.2 (Gen2)
1 x RJ45 2.5GbE LAN
1 x RJ45 1GbE LAN
1 x HDMI
1 x DisplayPort
2 x Audio I/O |
| Onboard I/O Headers |
3 x USB 2.0 header (Supports 5 Port, 1 x shared with M.2 B Key)
1 x USB 3.2 header (Supports 2 ports)
1 x LVDS
1 x Backlight Connector
1 x Stereo Speaker header
1 x Serial Port (RS232)
1 x Serial Port (RS232/422/485)
1 x MiAPI header (Programmable, Support 10-bit GPIO)
1 x 4-Pin CPU Fan header
1 x 4-Pin System Fan header
1 x CMOS Jumper
1 x Front Audio header (Mic-in and Line-Out)
1 x Panel Power Select header
1 x Buzzer header
1 x Digital MIC
1 x FIO header
1 x Intrusion Switch header |
| OS Support |
Ubuntu 20.04
Windows 11 64-Bit |
| Form Factor |
Mini ITX
6.7" x 6.7" (in inches)
170 x 170mm
|
| Environmental |
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) |
| Certification |
CE / FCC Class B |
| Warranty |
1-Year Manufacturer's Limited Warranty |
