Manufacturer	Mitac
Part Number	PH11SI-H110-PE
CPU	Supports Intel 7th/6th Gen Processors, Kaby Lake/Skylake Socket LGA 1151 Maximum 65W TDP
Chipset	Intel H110 ITE IT8519E
Memory	2 x DDR4 SODIMM slots Maximum 32GB Capacity 1866/2133 MHz Non-ECC Un-buffered
Video	Intel HD Graphics (CPU dependent) VGA Max Resolution: 1920x1200@60Hz HDMI Max Resolution: 3840x2160@30Hz LVDS Max Resolution: 1920x1200@60Hz Supports Dual Displays
Audio	Realtek ALC662
Storage Technology	2 x SATA3 Connectors 1 x Mini PCI-E slot (PCIe/USB/SATA) (Full/Half Size)
Connectivity	1 x Realtek RTL8111G GbE LAN
Expansion Slots	1 x PCI-E 2.0 x4 slot 1 x Full/Half Size Mini PCI-E slot (PCIe/USB/SATA) 1 x Half Size Mini PCI-E slot (PCIe/USB)
Power	1 x 19V DC-IN (5.1mm ID/7.4mm OD)

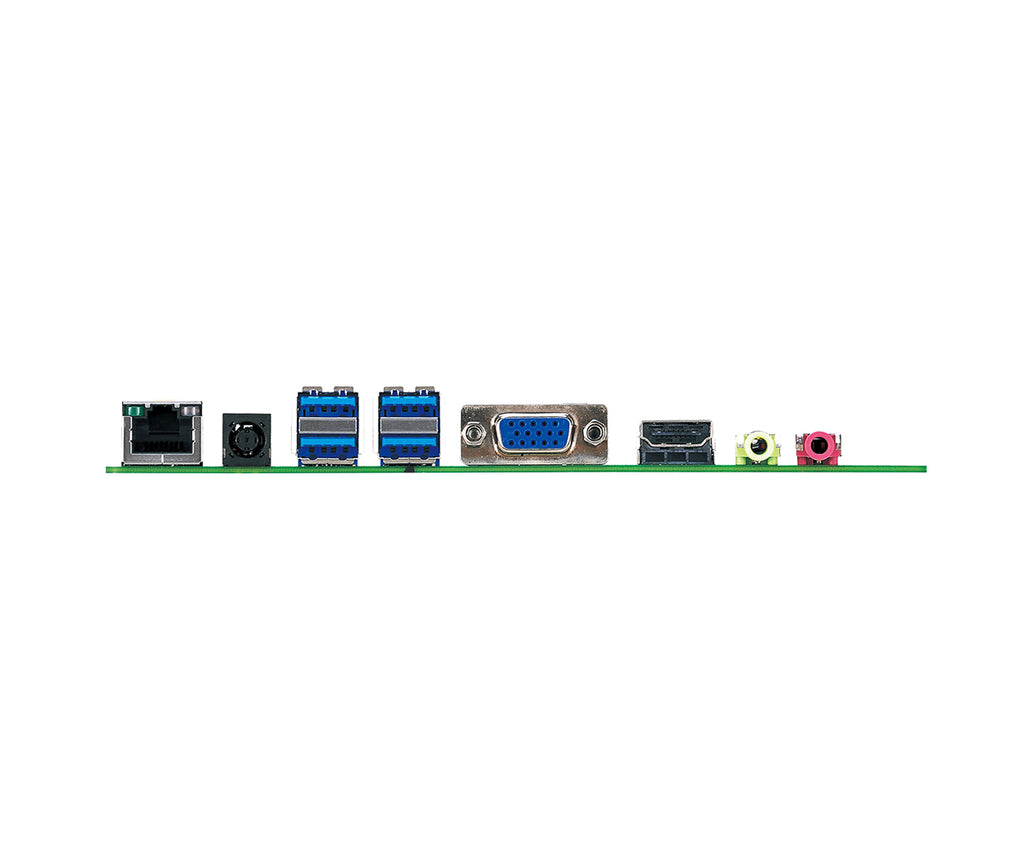

Rear I/O	1 x RJ45 GbE LAN 1 x 19V DC-IN 4 x USB 3.0 1 x VGA 1 x HDMI 2 x Audio I/O
Onboard I/O Headers	5 x USB 2.0 headers 1 x LVDS header 1 x Backlight Connector 1 x Line Out 1 x AT/ATX Mode Select jumper 1 x Front Audio header 1 x CMOS jumper
OS Support	Windows 10 64-Bit
Form Factor	Mini ITX 6.7" x 6.7" 170 x 170mm
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -20°C to 70°C (-4°F to 158°F) Operating Humidity: 10% to 95% R/H (non condensing)
Compliance	CE, FCC Class B
Warranty	1-Year Manufacturer's Limited Warranty
