Manufacturer	Mitac
Part Number	PH10ADU-Q670
Model Name	PH10ADU
CPU	Supports Intel 14th Gen Core Processors, Raptor Lake-S Socket LGA 1700 125 TDP
Chipset	Intel Q670
Memory	4 x DDR4 DIMM slots Maximum 128GB Capacity Non-ECC UDIMM 3200 MHz
Video	Intel UHD Graphics 770 (CPU Dependent) DisplayPort Max Resolution: 4096x2304@60Hz Supports Triple Displays
Audio	Realtek ALC888-VR
Storage Technology	6 x SATA3 1 x M.2 22110/2280 slot (PCI-E 4.0 x4) 1 x M.2 22110/2280 slot (PCI-E 4.0 x2)
Connectivity	1 x Intel I219-LM GbE LAN 1 x Intel I225-V 2.5GbE LAN
Expansion Slots	1 x PCI-E 3.0 x16 slot 2 x PCI-E 3.0 x8 slots (x4 Lanes)
Power	1 x 24-Pin ATX Power Connector 1 x 8-Pin 12V ATX Power Connector for CPU

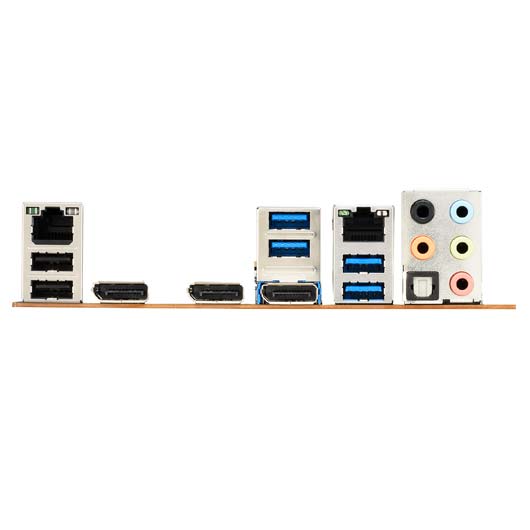

Rear I/O	1 x RJ45 GbE LAN 2 x USB 2.0 3 x DisplayPort 4 x USB 3.2 (Gen2) 1 x RJ45 2.5GbE LAN 5 x Audio I/O 1 x S/PDIF Out
Onboard I/O Headers	2 x COM (RS232) 1 x Front Audio header 1 x USB 3.2 (Gen1) Type-A 2 x USB 2.0 header 2 x USB 3.2 (Gen1) header 1 x CMOS Jumper 1 x FIO header 1 x SPI TPM header 1 x 4-Pin CPU Fan header 3 x 4-Pin System Fan header
OS Support	Windows 11 64-bit Windows 10 64-bit Ubuntu 20.04 Linux
Form Factor	Micro ATX 9.6" x 9.6" (in inches) 244 x 244mm
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -20°C to 70°C (-4°F to 158°F) Operating Humidity: 10% to 95% (non condensing)
Compliance	CE FCC Class B
Warranty	1-Year Manufacturer's Limited Warranty
