| Manufacturer | ASUS |
| Product ID | PE2300U-U5BB |
| Model Name | PE2300U |
| CPU | Intel Core Ultra 5 235U Processor 2.0 - 4.9 GHz 2 P-Cores / 8 E-Cores / 2 LP E-Cores / 14 Threads 15-57W TDP, 12MB Intel Smart Cache |
| Chipset | SoC |
| Memory | 2 x DDR5 SODIMM slots Maximum 64GB Capacity 6400 MHz |
| Video | Intel Graphics Up to 2.05 GHz 4 Xe-Cores HDMI 2.0 Max Resolution: 4096x2160@60Hz DisplayPort 1.4 Max Resolution: 5120x3200@60Hz NPU: Intel AI Boost, up to 11 TOPS |
| Audio | 1 x Mic-in (Phone Jack) 1 x Line-out (Phone Jack) |
| Storage Technology | 1 x 2.5" SATA Drive Bay 1 x M.2 2280 slot (M Key, PCIe Gen4 x4) |
| Connectivity | 1 x Intel i226-IT 2.5GbE LAN 1 x Intel i219-LM GbE LAN (Supports vPro) Supports WOL, PXE |
| Expansion Slots | 1 x M.2 2230 slot (E Key, PCIe x1, USB 2.0) - WiFi 1 x M.2 3042/3052 slot (B Key, PCIe x1, USB 2.0) with Nano SIM slot - 4G/5G |

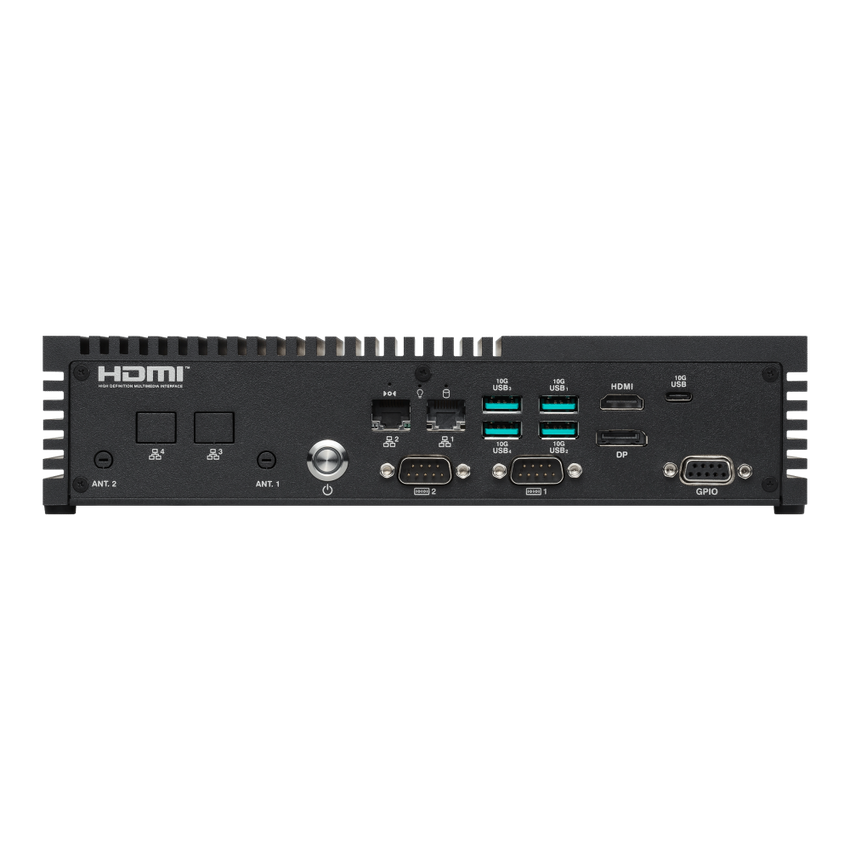

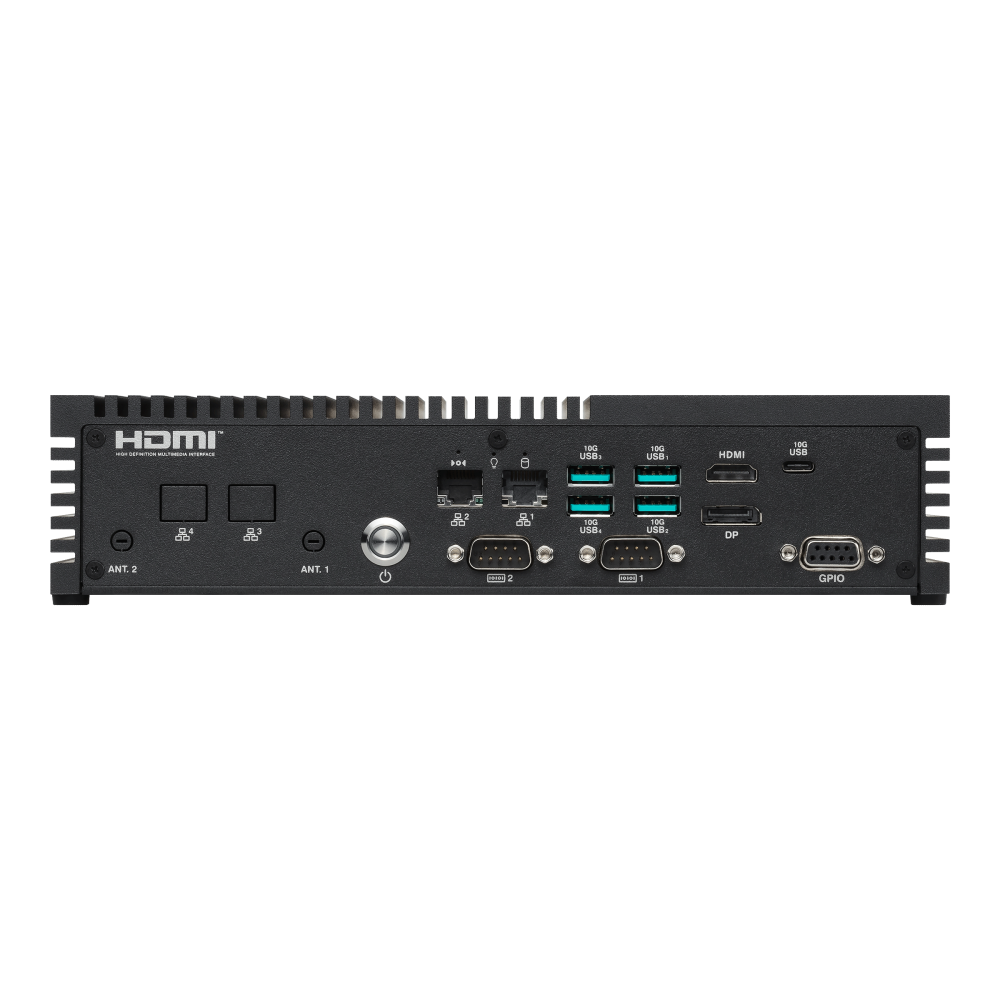

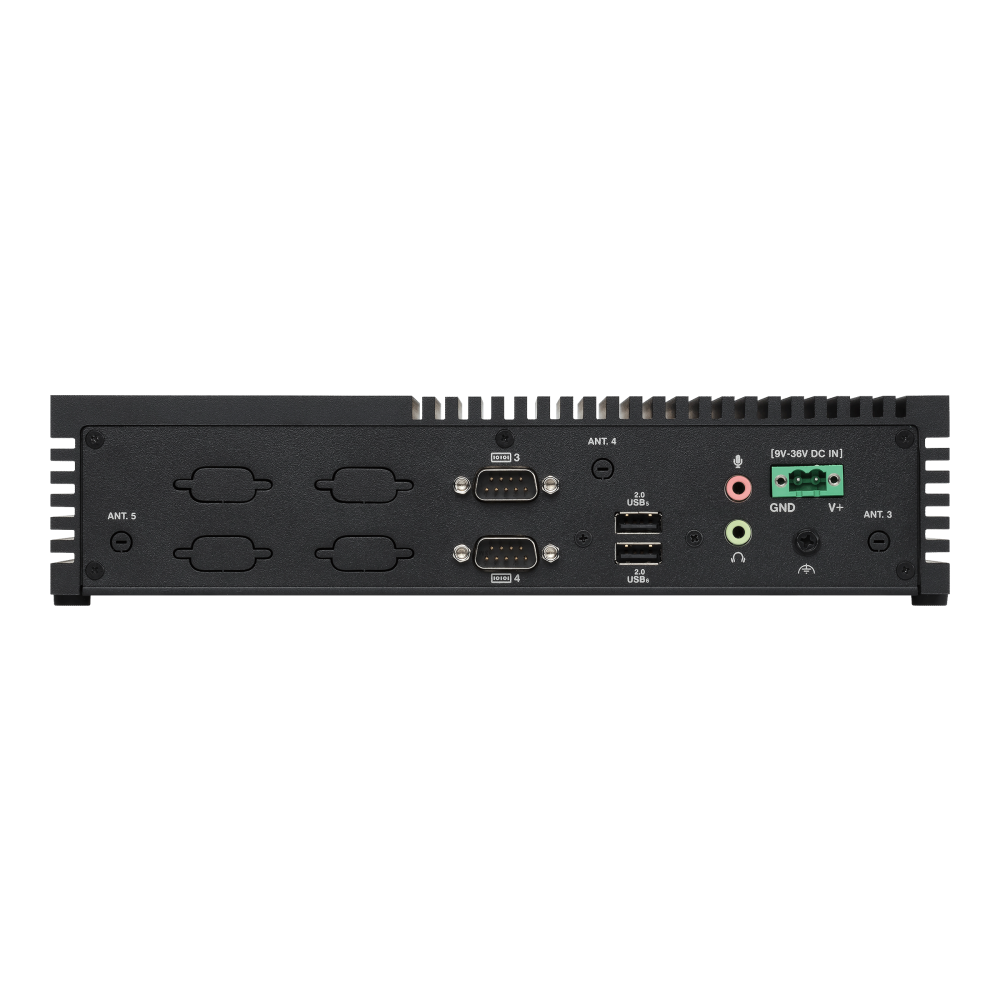

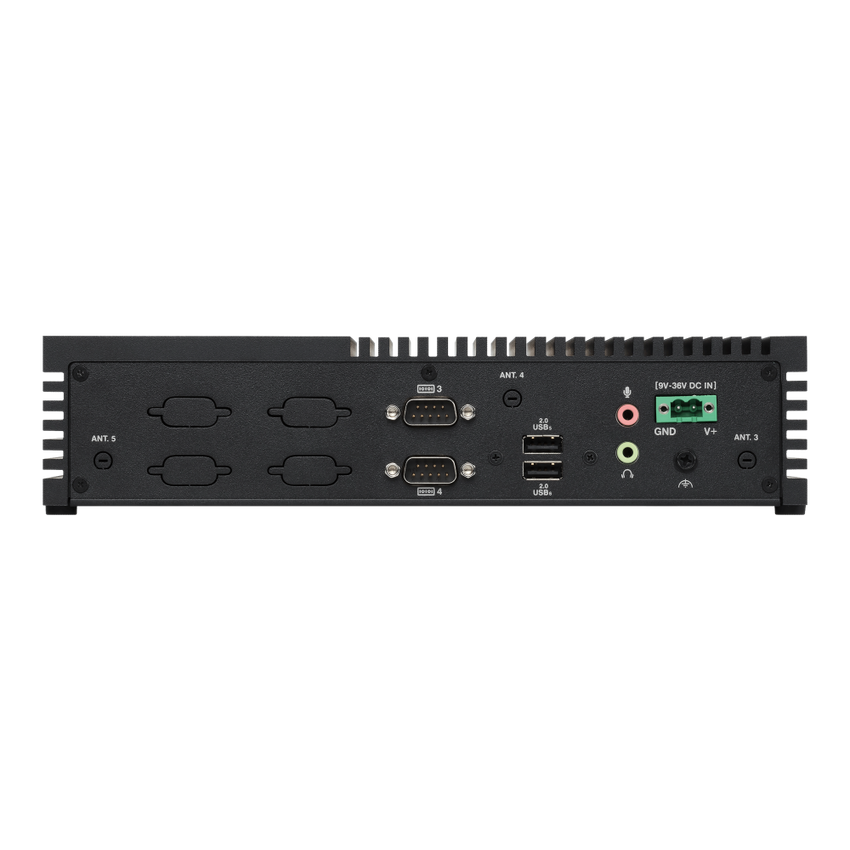

| I/O Interfaces | 1 x USB 3.2 Gen2 Type-C (10Gbps, DP Alt Mode) 4 x USB 3.2 Gen2 Type-A (10Gbps) 2 x USB 2.0 4 x COM (RS-232/422/485) 1 x HDMI 2.0 1 x DisplayPort 1.4 1 x 8-bit GPIO (DB9 Female) 1 x Power Button with LED 1 x 2-Pin Terminal Block DC-IN 2 x 1GbE PoE LAN (Optional Module) |
| Drive Support | 1 x 2.5" HDD/SSD Bay 1 x M.2 2280 slot (M Key, PCIe Gen4 x4) |
| OS Support | Windows 11 IoT Enterprise (64-bit) Windows 10 IoT Enterprise (64-bit) Linux by Project Support |
| Power Supply | 9-36V DC-IN, 2-Pin Terminal Block 150W 19V AC-DC Adapter Available as Optional Accessory |
| Case Dimensions | 254 x 147 x 57mm 10" x 5.8" x 2.2" (in inches) |
| Mounting | Wallmount (Standard) DIN Rail Mount (Optional) VESA Mount (Optional) |
| Environmental | Operating Temperature: -20°C to 60°C (-4°F to 140°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 10% to 95% (non-condensing) Vibration: Operating, MIL-STD-810H, Method 514.8, Category 4; 3 Grms, 5-500 Hz, 3 Axes Shock: Operating, MIL-STD-810H, Method 516.8, Procedure I, Table 516.6-II; 40G, 11ms |
| Security | TPM-SPI-A powered by Infineon SLB9672 (Optional) Watchdog Timer Supported |
| Compliance | CE, FCC, IC, BSMI (EMC) CE-LVD, UKCA, CB, BSMI (Safety) |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: PE2300U-U5BB
