| Manufacturer |
ASUS |
| Product ID |
PE2100U_I3-1315UE_ACDC |
| Model Name |

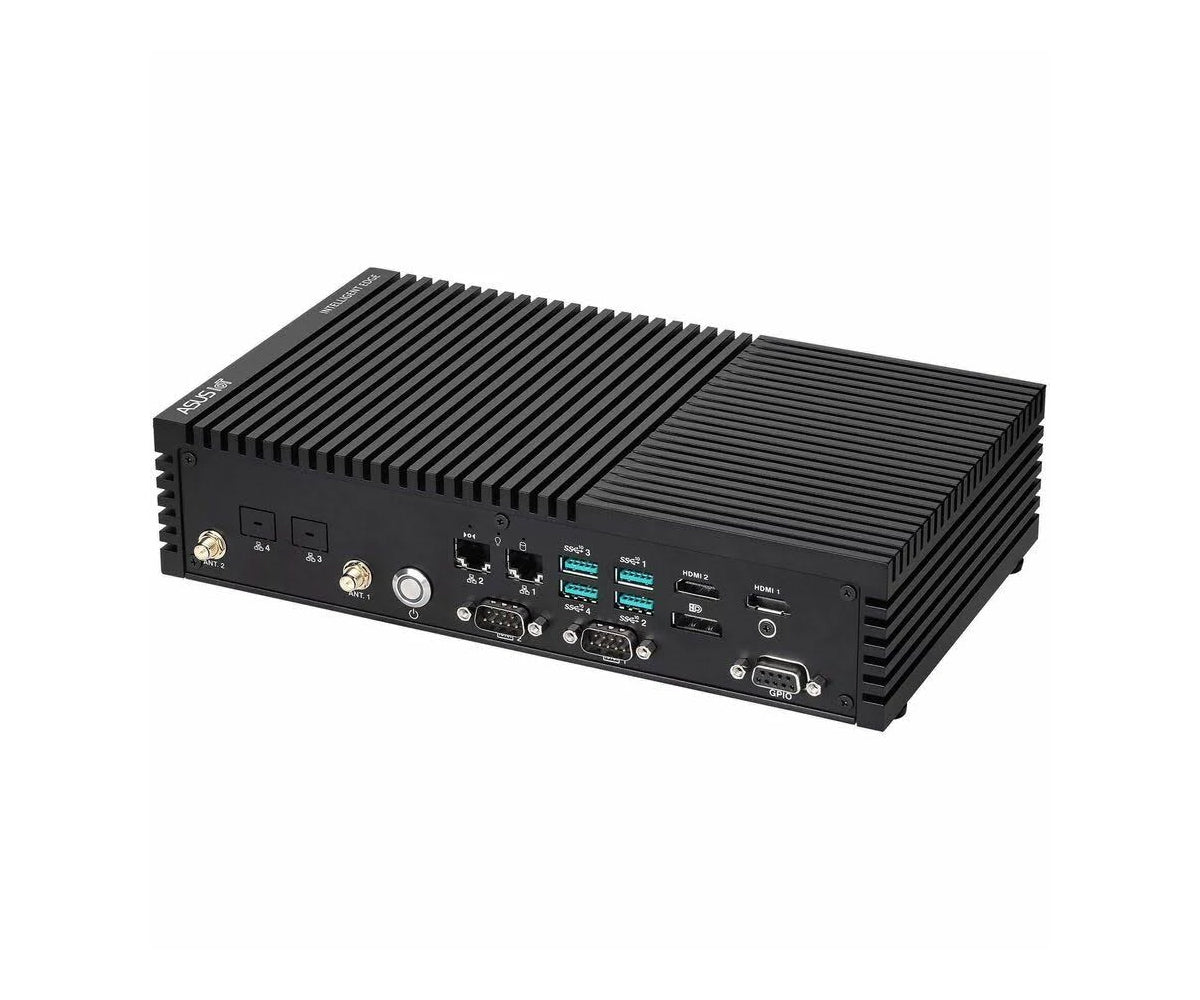

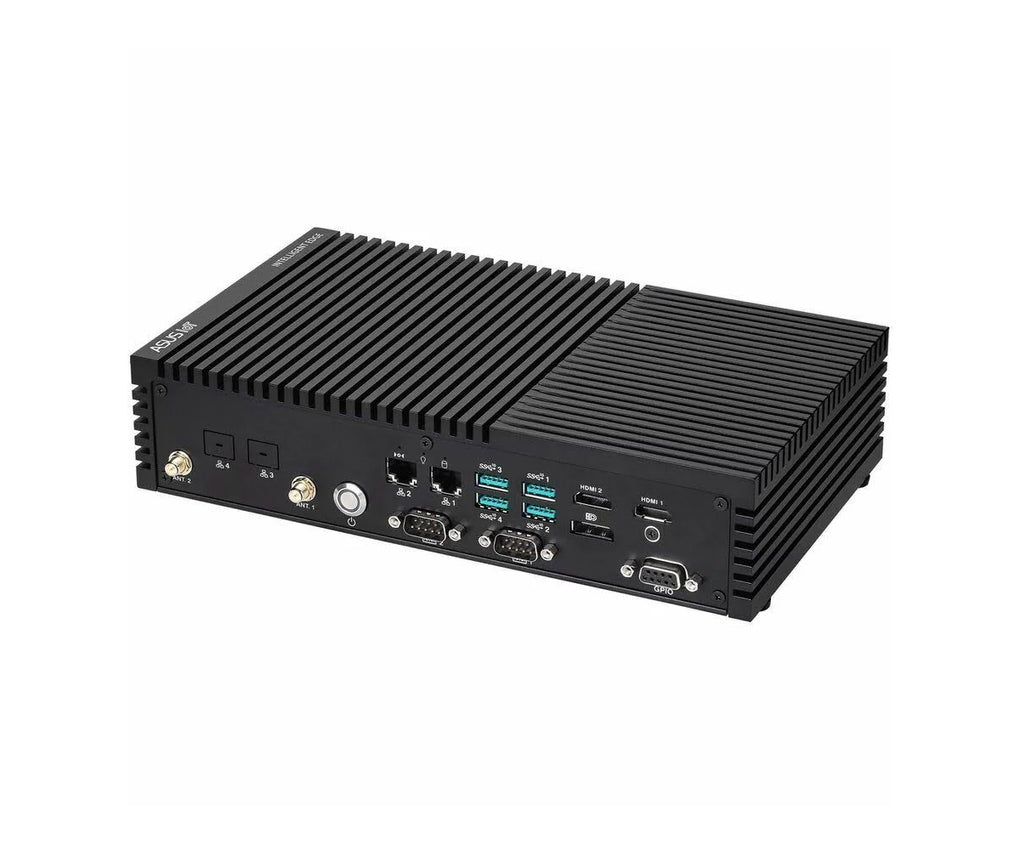

PE2100U |
| CPU |
Intel Core i3-1315UE Processor
1.2 - 4.5 GHz
2 P-Cores / 4 E-Cores / 6 Threads
12-55W TDP, 10MB Intel Smart Cache
|
| Chipset |
SoC
|
| Memory |
2 x DDR5 SODIMM slots
Maximum 64GB Capacity
4800 MHz
|
| Video |
Intel UHD Graphics
1.20 GHz
64 Execution Units
HDMI 2.0 Max Resolution: 4096x2340@60Hz
DisplayPort Max Resolution: 4096x2304@60 Hz
Supports 3 Independent Displays |
| Audio |
Realtek ALC8987 HD Audio |
| Storage Technology |
1 x SATA Connectors
1 x M.2 2280/2242 slot (M Key, PCIe x4, SATA)
|
| Connectivity |
1 x Intel I225V 2.5GbE LAN
1 x Intel I219LM GbE LAN (Supports vPro)
Supports WOL, PXE
|
| Expansion Slots |
1 x M.2 2230 slot (E Key, CNVi, PCIe x1, USB 2.0)
1 x Mini PCIe Socket (PCIe, USB 2.0)
1 x Nano SIM slot
|

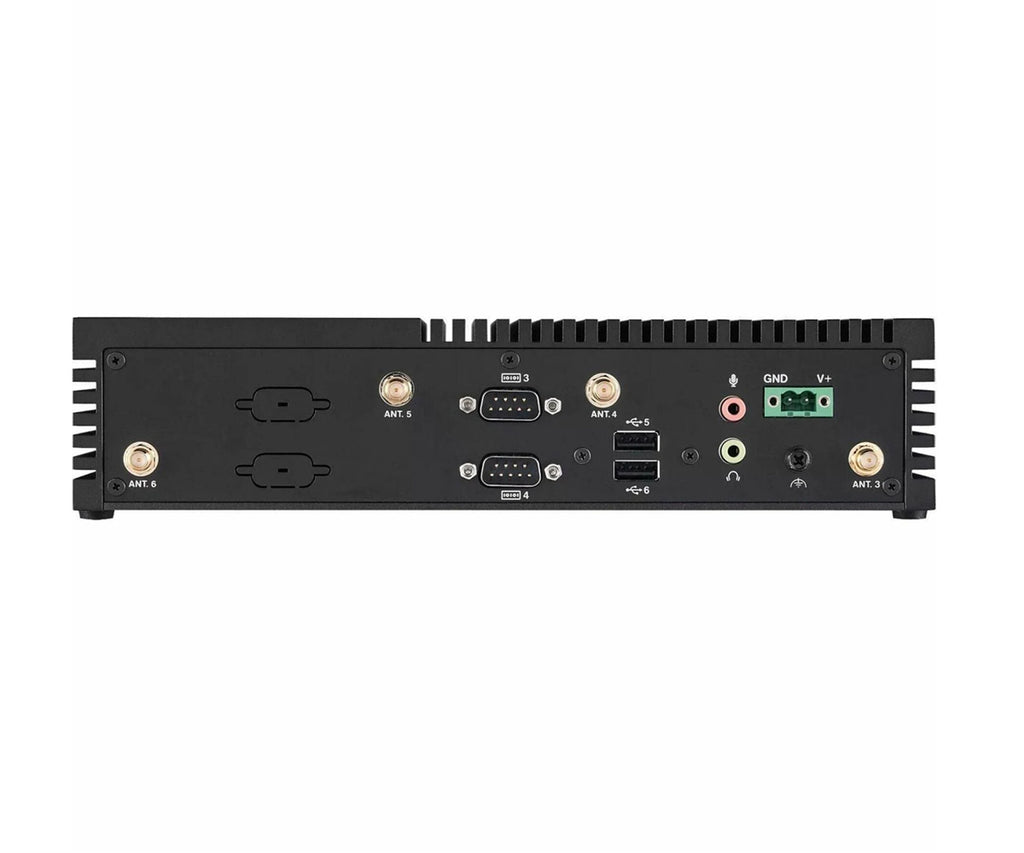

| Rear Panel I/O |
4 x Antenna Cutout
2 x COM (RS232/422/485)
2 x USB 2.0
2 x Audio I/O
1 x 2-Pin Terminal Block DC-IN
1 x GND Screw
|

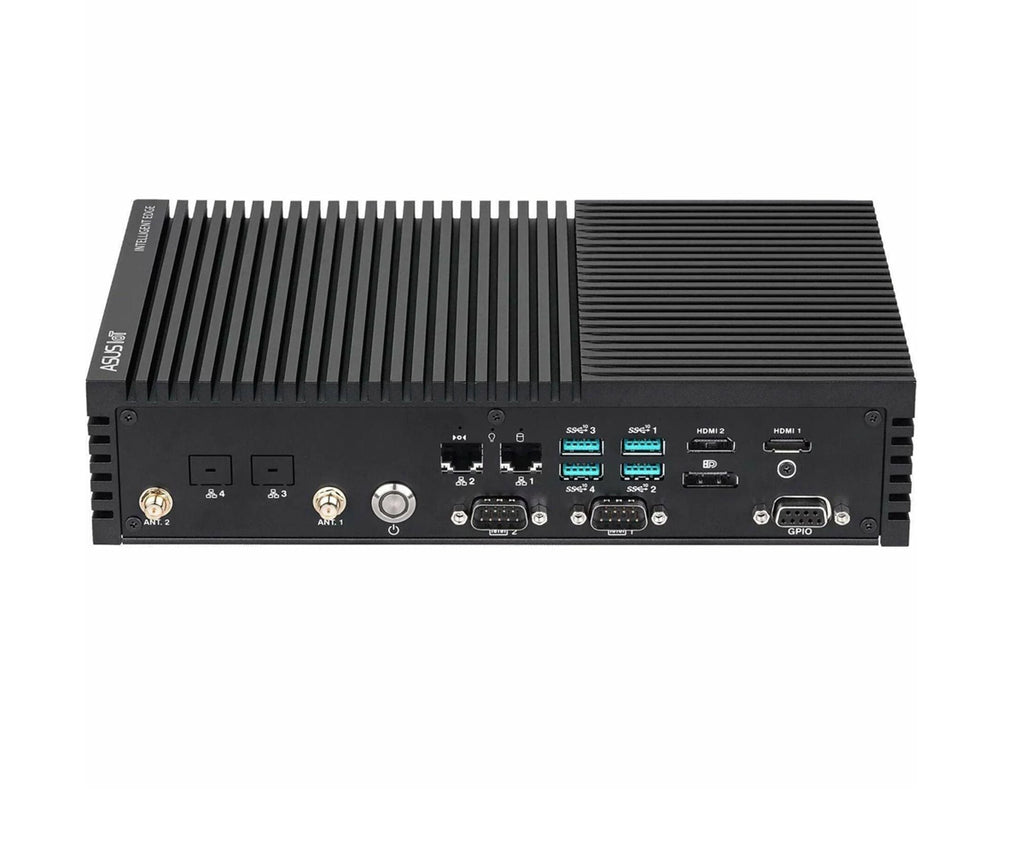

| Front Panel I/O |
2 x Antenna Cutout
2 x LAN Cutout
1 x Power Button with LED
1 x RJ45 2.5GbE LAN
1 x RJ45 GbE LAN
2 x COM (RS232)
4 x USB 3.2 (Gen2)
2 x HDMI
1 x DisplayPort
1 x GPIO
|
| Drive Support |
1 x 2.5" SATA Drive Bay
1 x M.2 2280/2242 slot (M Key, PCIe x4, SATA)
|
| OS Support |
Windows 10 IoT Enterprise 2021 LTSC
Windows 11 IoT Enteprise
Ubuntu, Linux Yocto
|
| Power Supply |
9-36V DC-IN
Includes 12V 90W AC-DC Adapter
|
| Case Dimensions |
254 x 147 x 57mm
10" x 5.8" x 2.2" (in inches)
|
| Mounting |
Wallmount
DIN Rail Mount
VESA Mount
|
| Environmental |
Operating Temperature: -20°C to 70°C (-4°F to 158°F)
Non-Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Operating Humidity: 10% to 90% (non-condensing)
Vibration: Operating, MIL-STD-810H, Method 514.8, Category 4; and 5 Grms, 5-500 Hz, 3 Axes
Shock: Operating, MIL-STD-810H, Method 516.8, Procedure I, Table 516.6-II; 50 Grms |
| Compliance |
CE (ITE), FCC, VCCI, BSMI, RCM
UL, CB, CCC, BSMI, CE
|
| Warranty |
1-Year Warranty on Parts and Labor |
