Manufacturer	Mitac
Part Number	PD10MTS-125U
Model Name	PD10MTS
CPU	Intel Core Ultra 5 125U Processor 2 P-Cores / 8 E-Cores / 2 LP E-Cores / 14 Threads 700 MHz - 2.1 GHz Low Power Efficient Frequency 800 MHz - 3.6 GHz Efficient Frequency 1.3 - 4.3 GHz Performance Frequency 12W - 57W Power, 12 MB Intel Smart Cache
Chipset	SoC Nuvoton NPCT760AABYX TPM2.0
Memory	1 x DDR5 SODIMM slot Maximum 48GB Capacity 4800 MHz
Video	Intel Iris Xe Graphics 1.85 GHz 4 Xe-Cores HDMI 1.4 Max Resolution: 3840x2160@30Hz DisplayPort 1.2 Max Resolution: 4096x2160@60Hz LVDS Max Resolution: 1920x1200@60Hz eDP (Option) Max Resolution: 5120x3200@60Hz Supports Triple Displays
Audio	Realtek ALC888S
Storage Technology	1 x SATA Connector 1 x M.2 2280 slot (M Key, PCIe 4.0 x4/SATA)
Connectivity	4 x Intel 226-LM 2.5GbE LAN
Expansion Slots	1 x M.2 2242/3042/3052 slot (B Key, USB 2.0/PCIe x1/SATA) 1 x M.2 2230 slot (E Key, PCIe x1/USB 2.0)
Power	8-26V Wide DC Input 6-Pin Power Connector 2.0mm Pitch

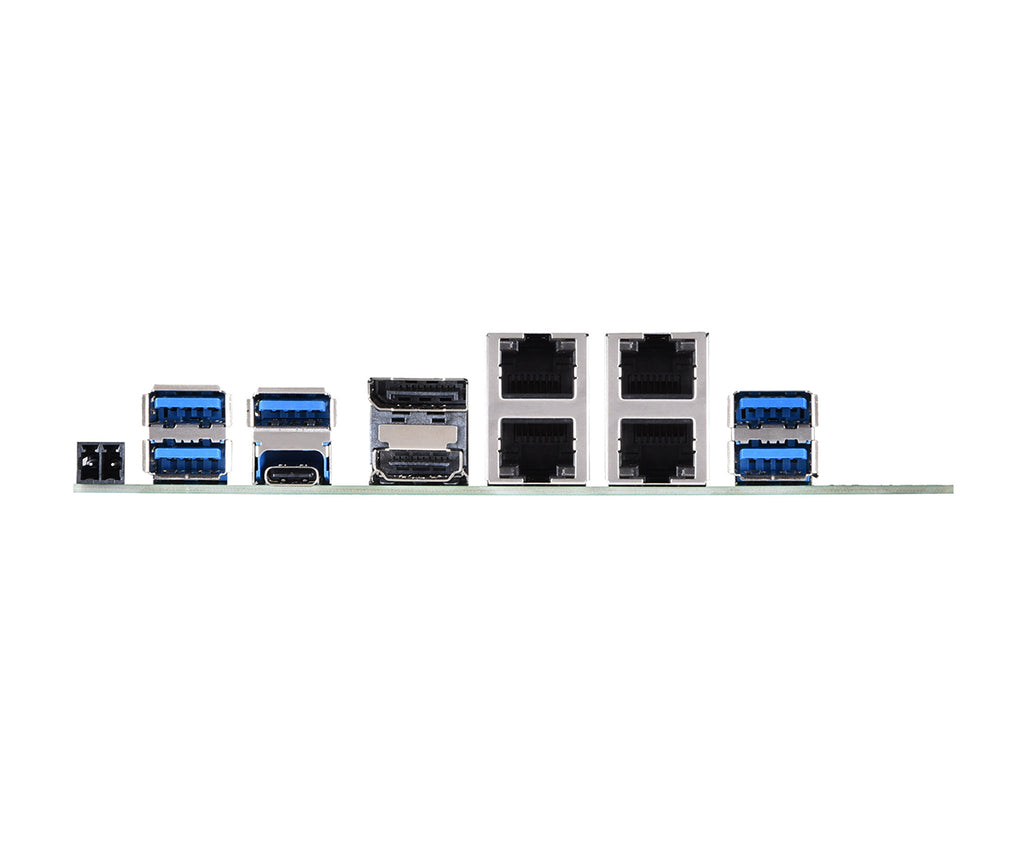

Rear I/O	1 x 2-Pin Terminal Block Remote Power 4 x USB 3.2 (Gen2) 1 x USB 3.2 (Gen1) Type-C (Support PD15W, 5V/3A, DP Alt Mode) 1 x DisplayPort 1 x HDMI 4 x RJ45 2.5GbE LAN 1 x USB 2.0
Onboard I/O Headers	2 x USB 2.0 1 x LVDS 1 x Backlight Connector 1 x Audio header (Mic In and Line out) 1 x Speaker header w/o amplifier 3 x RS232 1 x RS232/422/485 1 x MiAPI header (Programmable, Support 10-bit GPIO) 1 x 4-pin CPU fan header 1 x AT/ATX Mode Select jumper 1 x CMOS jumper 1 x 2x5-pin Chassis Front Panel header 1 x Panel Power Select header 1 x Backlight power select header 1 x Buzzer
OS Support	Windows 10 64-bit Windows 11 64-bit Linux (support by request)
Form Factor	3.5" SBC 4" x 5.8" (in inches) 102 x 147mm
Environmental	Operating Temperature: -40°C to 60°C (-40°F to 140°F) with 0.7m/s Air Flow and Wide Temperature Memory/Storage Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 10% to 95% (non condensing)
Compliance	CE / FCC Class A
Warranty	1-Year Manufacturer's Limited Warranty
