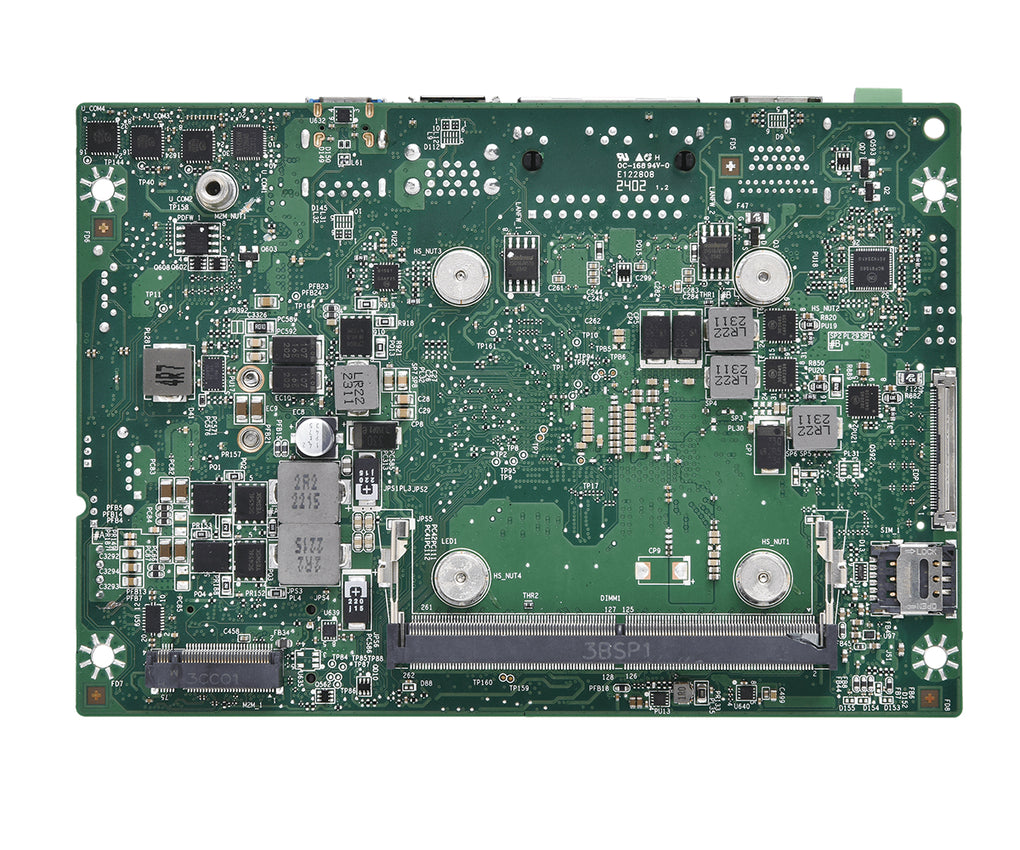

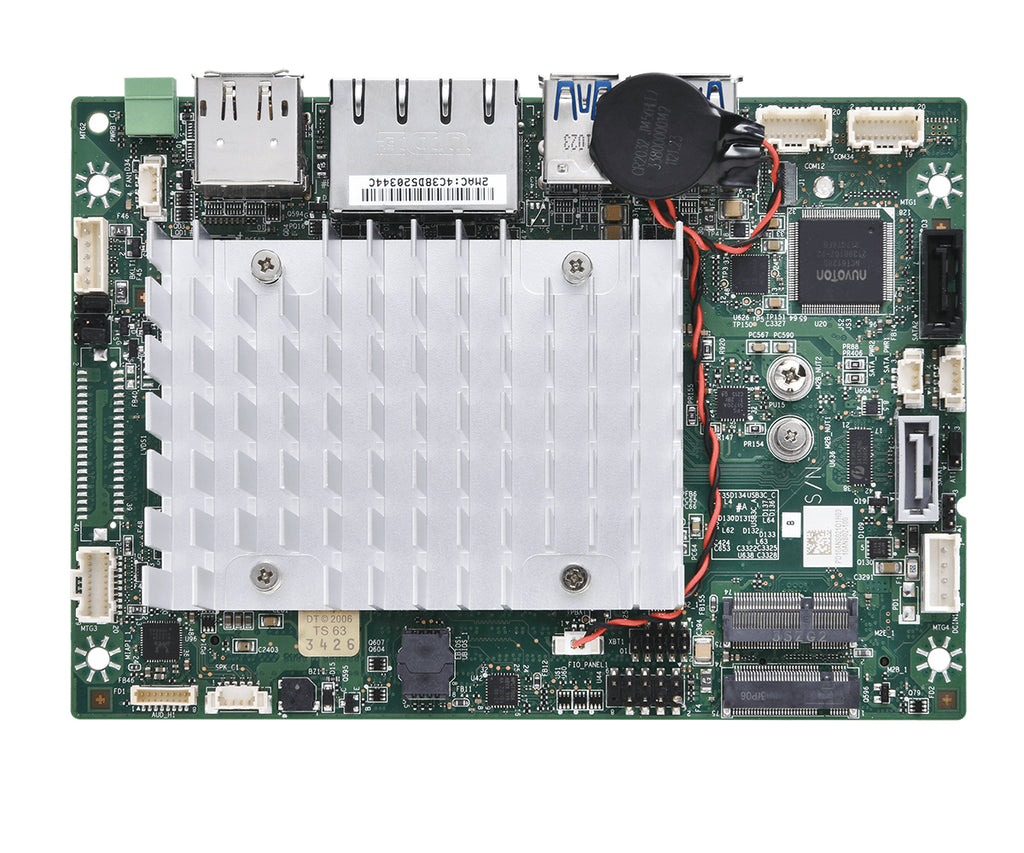

| Manufacturer |
Mitac
|
| Part Number |
PD10ANS-N97
|
| Model Name |
PD10ANS
|
| CPU |
Intel N97 Processor
3.60 GHz
4 Cores
12W TDP, 6 MB Intel Smart Cache
|
| Chipset |
SoC
Nuvoton NPCT760AABYX TPM2.0
|
| Memory |
1 x DDR5 SODIMM slot
Maximum 16GB Capacity
4800 MHz
|
| Video |
Intel UHD Graphics
1.20 GHz
24 Execution Units
HDMI Max Resolution: 3840x2160@30Hz
DisplayPort Max Resolution: 4096x2160@60Hz
LVDS Max Resolution: 1920x1200@60Hz
eDP (Option) Max Resolution: 5120@3200@60Hz
Supports Triple Displays
|
| Audio |
Realtek ALC256
|
| Storage Technology |
2 x SATA Connectors
1 x M.2 2280 slot (M Key, PCIe x1/SATA)
1 x M.2 2242/3042/3052 (B Key, USB2.0/PCIe x1/SATA)
Note: One SATA Connector Multiplexed with M.2 B Key SATA
|
| Connectivity |
2 x Intel I226-V 2.5GbE LAN
|
| Expansion Slots |
1 x M.2 2242/3042/3052 slot (B Key, USB 2.0/PCIe x1/SATA)
1 x M.2 2230 slot (E Key, PCIe x1/USB 2.0)
|
| Power |
8-26V Wide DC Input 4-pin Power header (2.5mm pitch)
|

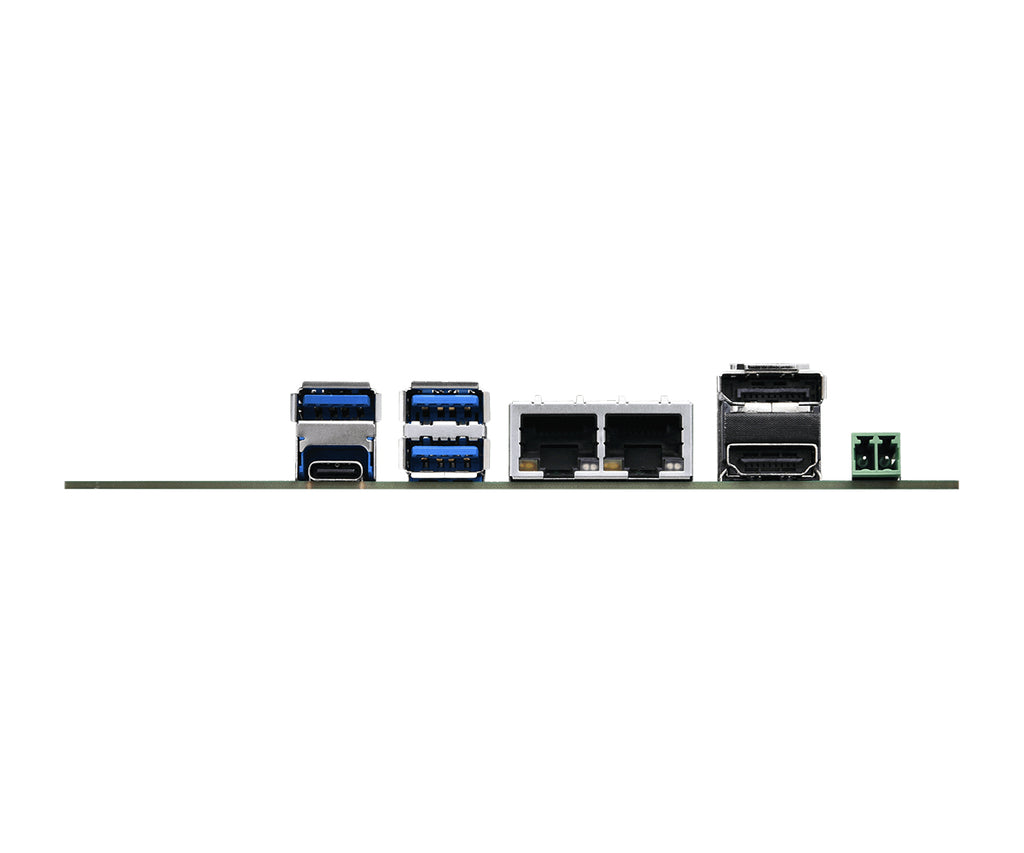

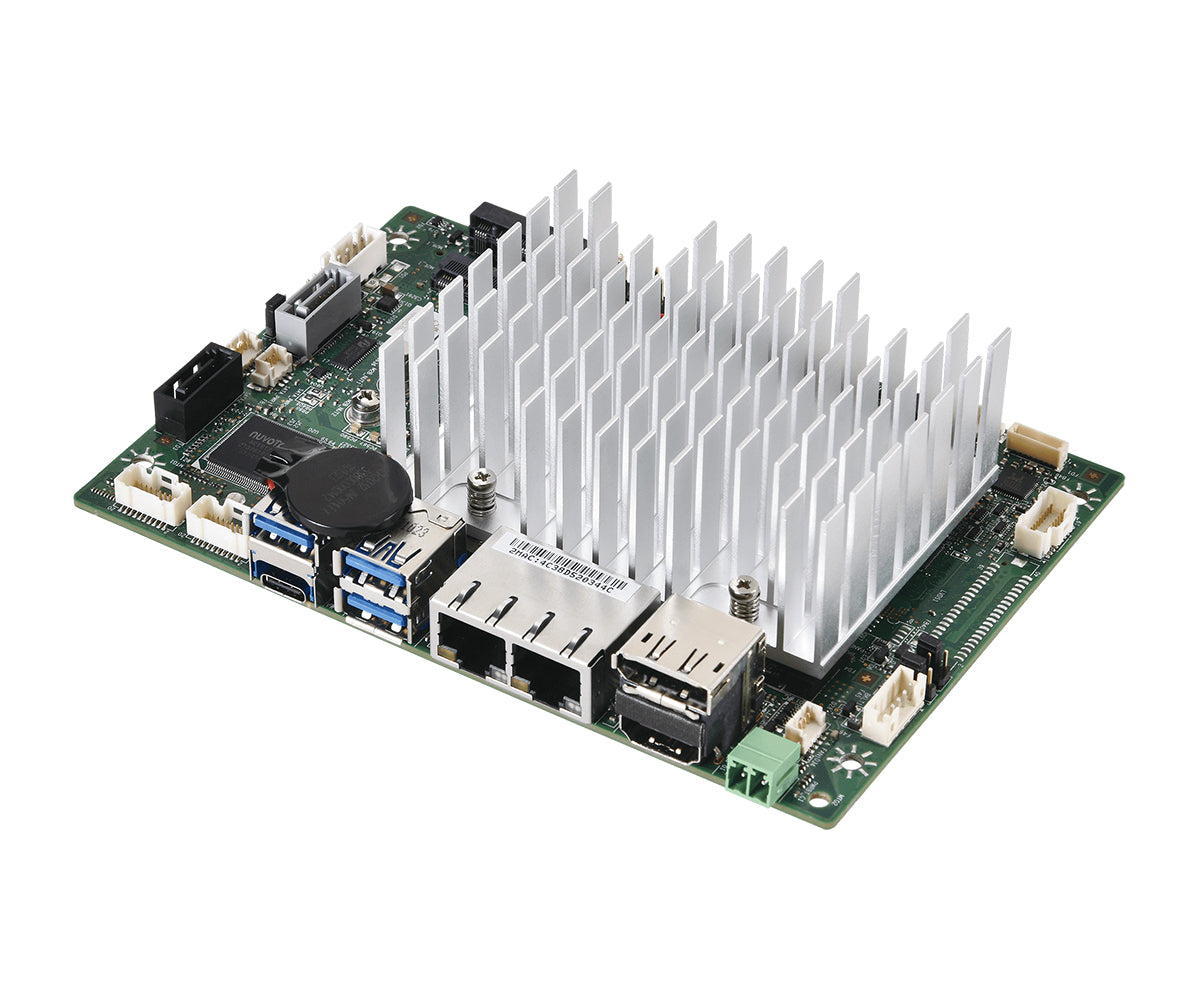

| Rear I/O |
3 x USB 3.2 (Gen2)
1 x USB 3.2 (Gen1) Type-C (Support PD15W, 5V/3A, DP Alt mode)
2 x RJ45 2.5GbE LAN
1 x DisplayPort
1 x HDMI
1 x 2-pin Terminal Block Remote Power Switch
|
| Onboard I/O Headers |
2 x USB 2.0 header
1 x LVDS
1 x Backlight Connector
1 x Speaker header with amplifier
1 x Audio header (Front Panel Mic in and Line Out)
3 x RS232 header
1 x RS232/422/485 header
1 x MiAPI header (Programmable, Support 10x GPIO, 1 x SMBUS, 1 x UART, 1 x Watchdog)
1 x 4-pin CPU Fan header
1 x AT/ATX Mode Select Jumper
1 x CMOS jumper
1 x Panel Power Select header
1 x Backlight Power Select header
1 x Buzzer
|
| OS Support |
Windows 10 64-bit
Windows 11 64-bit
Linux (support by request)
|
| Form Factor |
3.5" SBC
4" x 5.8" (in inches)
102 x 147mm
|
| Environmental |
Operating Temperature: -25°C to 60°C (-13°F to 140°F) with 0.7m/s Air Flow and Wide Temperature Memory/Storage
Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F)
Operating Humidity: 10% to 95% (non condensing)
|
| Compliance |
CE / FCC Class B
|
| Warranty |
1-Year Manufacturer's Limited Warranty
|
