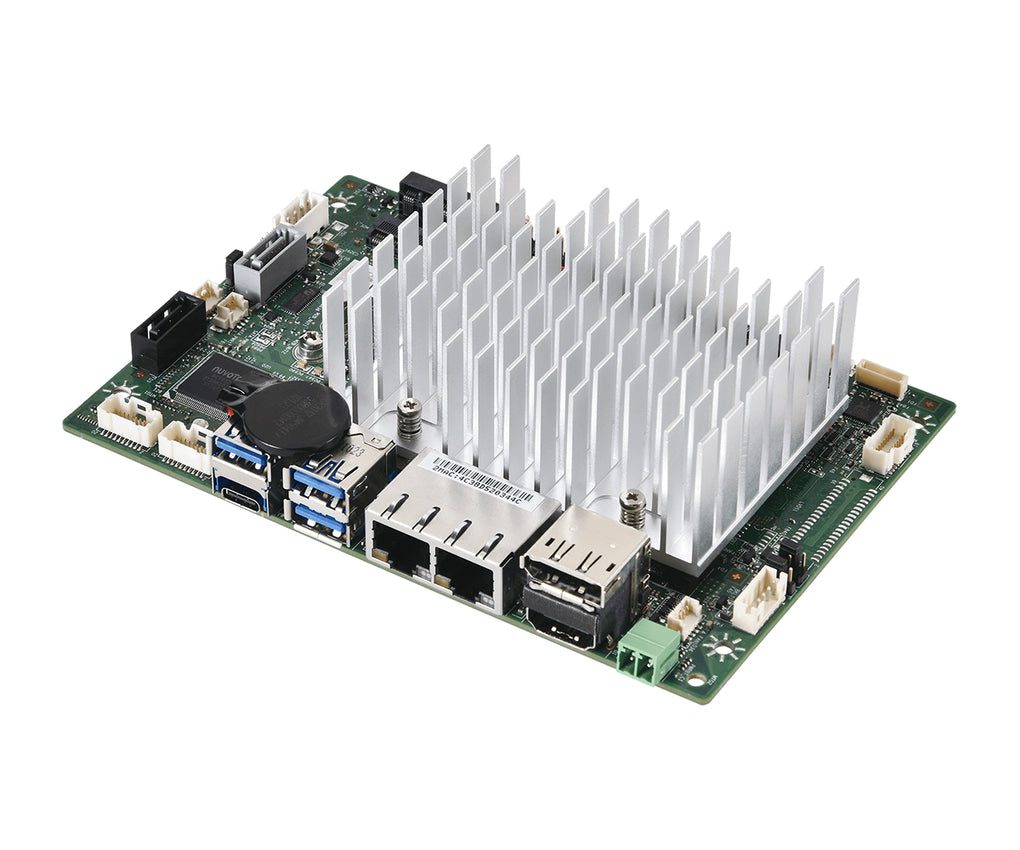

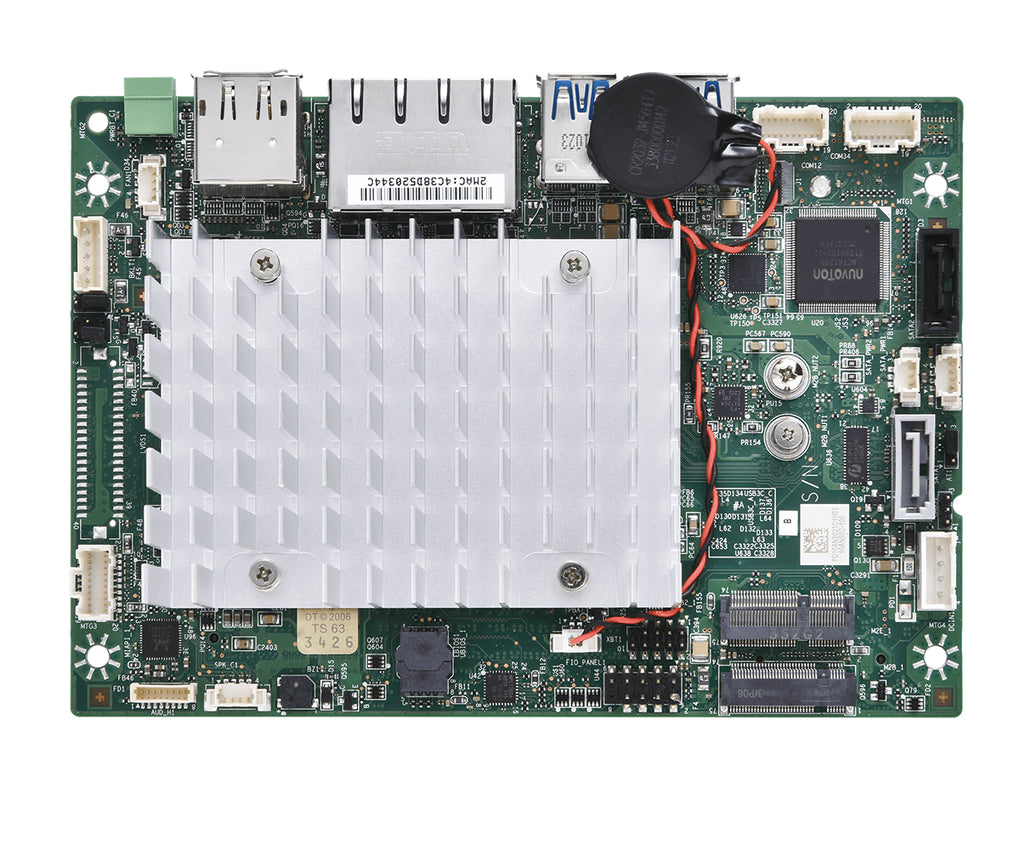

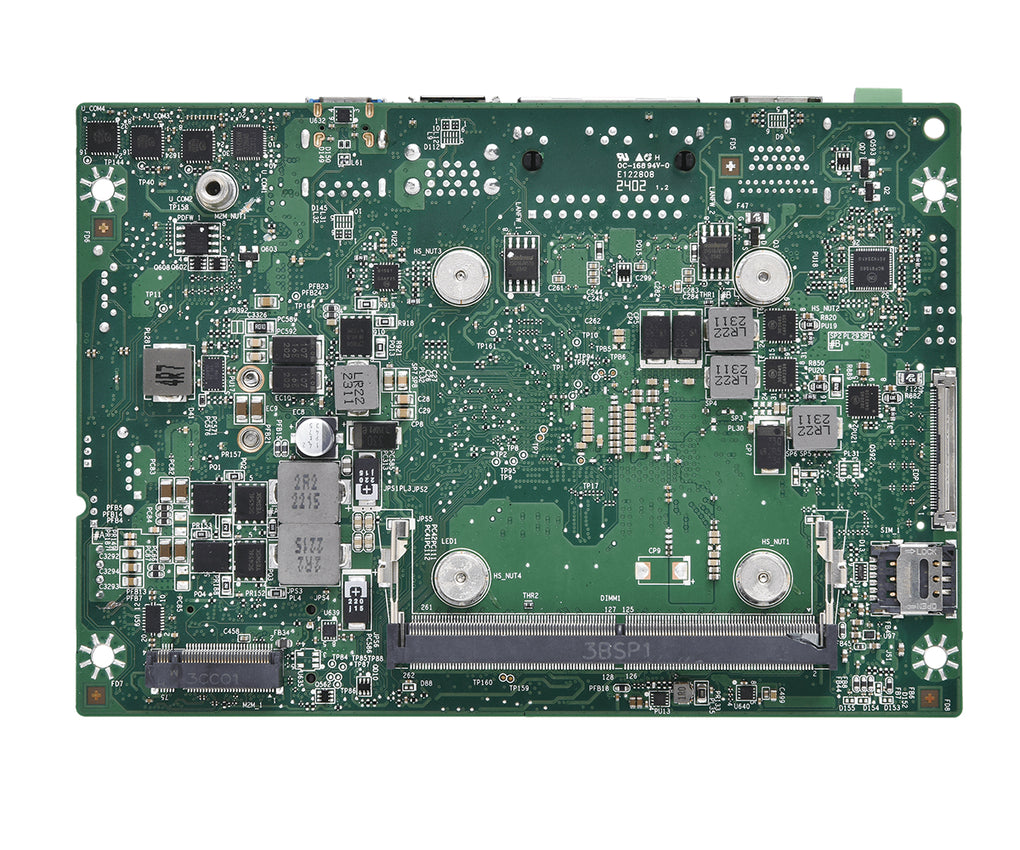

Manufacturer	Mitac
Part Number	PD10ANS-N305
Model Name	PD10ANS
CPU	Intel i3-N305 Processor 3.80 GHz  8 Cores / 8 Threads 15W TDP, 6 MB Intel Smart Cache
Chipset	SoC Nuvoton NPCT760AABYX TPM2.0
Memory	1 x DDR5 SODIMM slot Maximum 16GB Capacity 4800 MHz
Video	Intel UHD Graphics 1.25 GHz 32 Execution Units HDMI Max Resolution: 3840x2160@30Hz DisplayPort Max Resolution: 4096x2160@60Hz LVDS Max Resolution: 1920x1200@60Hz eDP (Option) Max Resolution: 5120@3200@60Hz Supports Triple Displays
Audio	Realtek ALC256
Storage Technology	2 x SATA Connectors 1 x M.2 2280 slot (M Key, PCIe x1/SATA) 1 x M.2 2242/3042/3052 (B Key, USB2.0/PCIe x1/SATA) Note: One SATA Connector Multiplexed with M.2 B Key SATA
Connectivity	2 x Intel I226-V 2.5GbE LAN
Expansion Slots	1 x M.2 2242/3042/3052 slot (B Key, USB 2.0/PCIe x1/SATA) 1 x M.2 2230 slot (E Key, PCIe x1/USB 2.0)
Power	8-26V Wide DC Input 4-pin Power header (2.5mm pitch)

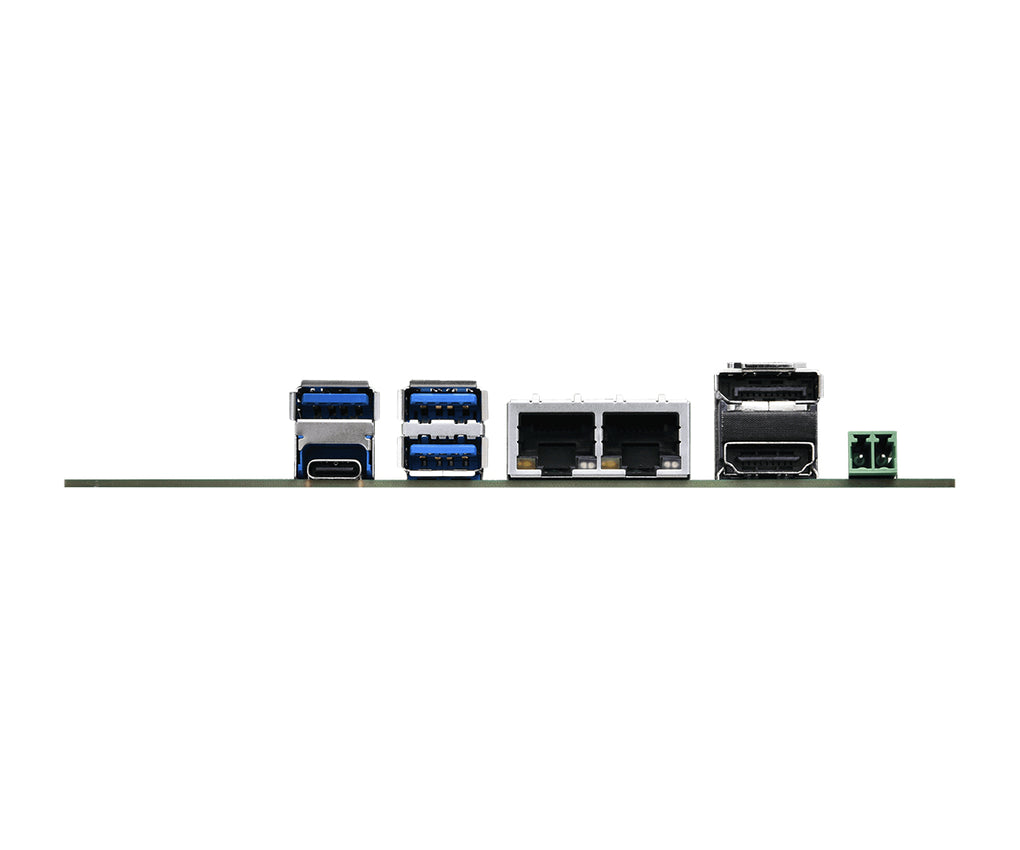

Rear I/O	3 x USB 3.2 (Gen2) 1 x USB 3.2 (Gen1) Type-C (Support PD15W, 5V/3A, DP Alt mode) 2 x RJ45 2.5GbE LAN 1 x DisplayPort 1 x HDMI 1 x 2-pin Terminal Block Remote Power Switch
Onboard I/O Headers	2 x USB 2.0 header 1 x LVDS 1 x Backlight Connector 1 x Speaker header with amplifier 1 x Audio header (Front Panel Mic in and Line Out) 3 x RS232 header 1 x RS232/422/485 header 1 x MiAPI header (Programmable, Support 10x GPIO, 1 x SMBUS, 1 x UART, 1 x Watchdog) 1 x 4-pin CPU Fan header 1 x AT/ATX Mode Select Jumper 1 x CMOS jumper 1 x Panel Power Select header 1 x Backlight Power Select header 1 x Buzzer
OS Support	Windows 10 64-bit Windows 11 64-bit Linux (support by request)
Form Factor	3.5" SBC 4" x 5.8" (in inches) 102 x 147mm
Environmental	Operating Temperature: -25°C to 60°C (-13°F to 140°F) with 0.7m/s Air Flow and Wide Temperature Memory/Storage Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 10% to 95% (non condensing)
Compliance	CE / FCC Class B
Warranty	1-Year Manufacturer's Limited Warranty
