Manufacturer	Mitac
Part Number	PD10ANI-N97
Model Name	PD10ANI
CPU	Intel N97 Processor 3.60 GHz 4 Cores 12W TDP, 6 MB Intel Smart Cache
Chipset	SoC
Memory	1 x DDR5 SODIMM slot Maximum 16GB Capacity 4800 MHz
Video	Intel UHD Graphics 1.20 GHz 24 Execution Units HDMI Max Resolution: 4096x2160@30Hz DisplayPort Max Resolution: 4096x2160@60Hz LVDS Max Resolution: 1920x1200@60Hz eDP Max Resolution: 4096x2160@60Hz Supports Triple Displays
Audio	Realtek ALC888S
Storage Technology	1 x SATA Connector (Multiplexed with M.2 M Key) 1 x M.2 3042/3052/2242/2260/2280 slot (B Key, USB 2.0/SATA/PCIe x1)
Connectivity	2 x Intel I226-V 2.5 GbE LAN
Expansion Slots	1 x M.2 3042/3052/2242/2260/2280 slot (B Key, USB 2.0/SATA/PCIe x1) Note: Does not support NVMe 1 x Nano SIM Slot 1 x M.2 2230 slot (E Key, PCIe x1/USB 2.0, CNVi)
Power	8 - 24V Wide Voltage Input (2.5mm ID/5.5mm OD) Alternate 4-Pin ATX Power Connector

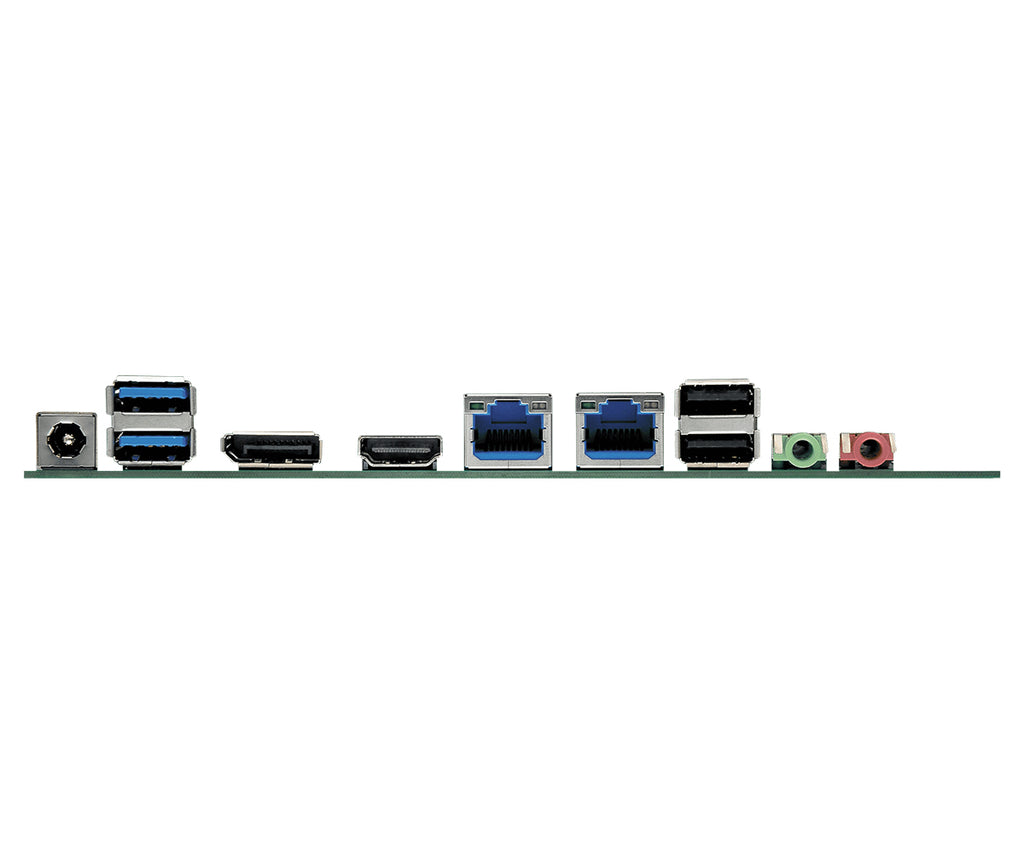

Rear I/O	1 x 8-24V DC-IN 2 x USB 3.2 (Gen2) 1 x DisplayPort 1 x HDMI 2 x RJ45 2.5GbE LAN 2 x USB 2.0 2 x Audio I/O
Onboard I/O Headers	1 x SATA Power header 2 x USB 2.0 header 1 x Backlight Connector 1 x LVDS 1 x eDP (Optional) 1 x Stereo Speaker header 1 x Audio header 3 x RS232 header 1 x MiAPI header 1 x 4-pin CPU Fan header 1 x AT/ATX Mode Select jumper 1 x CMOS jumper 1 x 2x5-pin Chassis Front Panel header 1 x Front Audio header (Mic In and Line out) 1 x Buzzer header 1 x Panel power select header (default 3.3V, option to 5V, 12V)
OS Support	Windows 10 64-bit Windows 11 64-bit Ubuntu 20.04 Linux (support by request)
Form Factor	Thin Mini ITX 6.7" x 6.7" 170 x 170mm
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 10% to 95% (non condensing)
Compliance	CE / FCC Class B
Warranty	1-Year Manufacturer's Limited Warranty
