Manufacturer	Cincoze
Product ID	P2302E-R10
Model Name	P2302E
CPU	Supports Intel Meteor Lake Core Ultra Processors Socket LGA 1851
Chipset	SoC
Memory	2 x DDR5 SODIMM slots Maximum 96GB Capacity 5600 MHz
Video	Intel Graphics (CPU Dependent) CDS Max Resolution: 1920x1080@60Hz DisplayPort Max Resolution: 3840x2160@60Hz HDMI Max Resolution: 3840x2160@30Hz VGA Max Resolution: 1920x1080@60Hz Supports Quad Displays
Audio	Realtek ALC888 HD Audio
Storage Technology	2 x SATA Connectors 1 x M.2 3042/3052 slot (B-Key, PCIe 4.30 x2/USB 3.2 Gen2x1/USB 2.0) 1 x M.2 3042 slot (B-Key, PCIe 3.0 x2) Supports Intel RAID 0/1
Connectivity	2 x Intel I225 2.5GbE LAN
Expansion Slots	1 x PCI-E 3.0 x4 slot (Maximum 111x169mm) 1 x M.2 2230 slot (E Key, PCIe 3.0 x1/USB 2.0) 1 x M.2 3042/3052 slot (B-Key, PCIe 4.30 x2/USB 3.2 Gen2x1/USB 2.0) 1 x M.2 3042 slot (B-Key, PCIe 3.0 x2) 1 x CFM Interface for IGN Module 1 x CFM Interface for PoE Module 1 x CDS Interface for Convertible Display Module

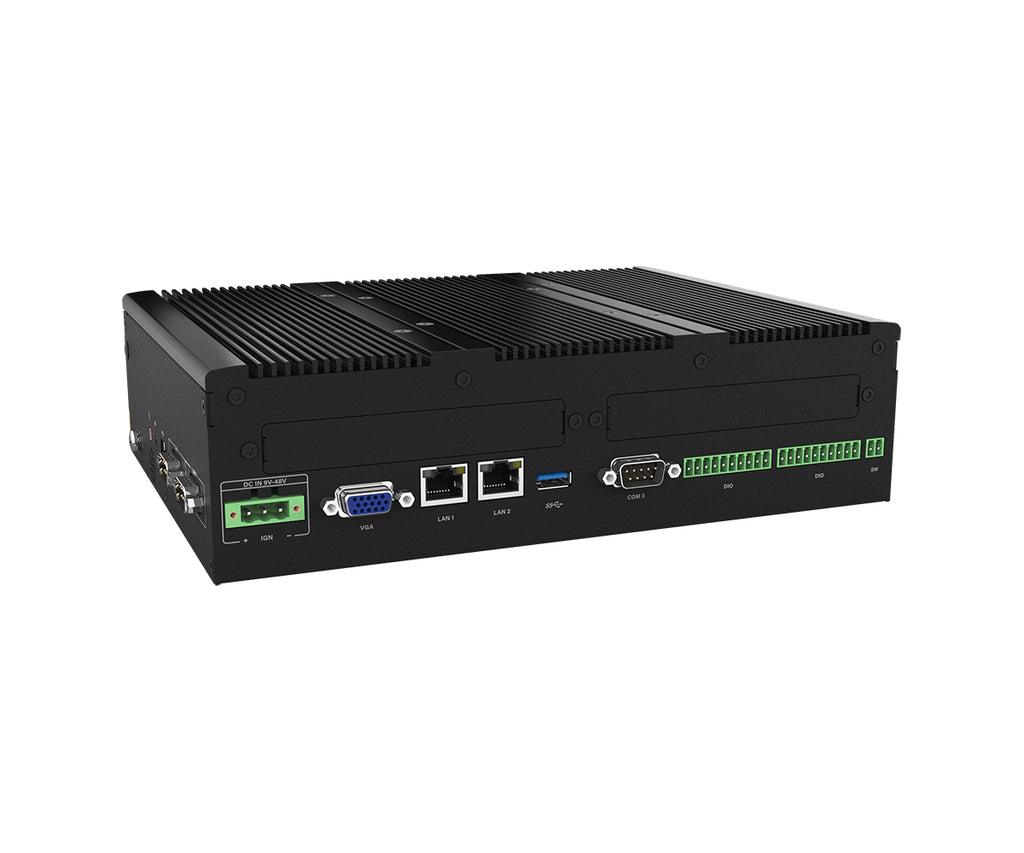

Rear Panel I/O	1 x 9-48V Terminal Block DC-IN 1 x VGA 2 x RJ45 2.5GbE LAN 1 x USB 3.2 (Gen1x1) 1 x COM (RS232/422/485 with Auto Flow Control, Supports 5V/12V) 1 x 20-Pin Terminal Block DIO 16x Isolated Digital I/O (8in/8out) 1 x 2-Pin Terminal Block Remote Switch
Front Panel I/O	2 x Status LED (HDD, Power) 1 x Power Button

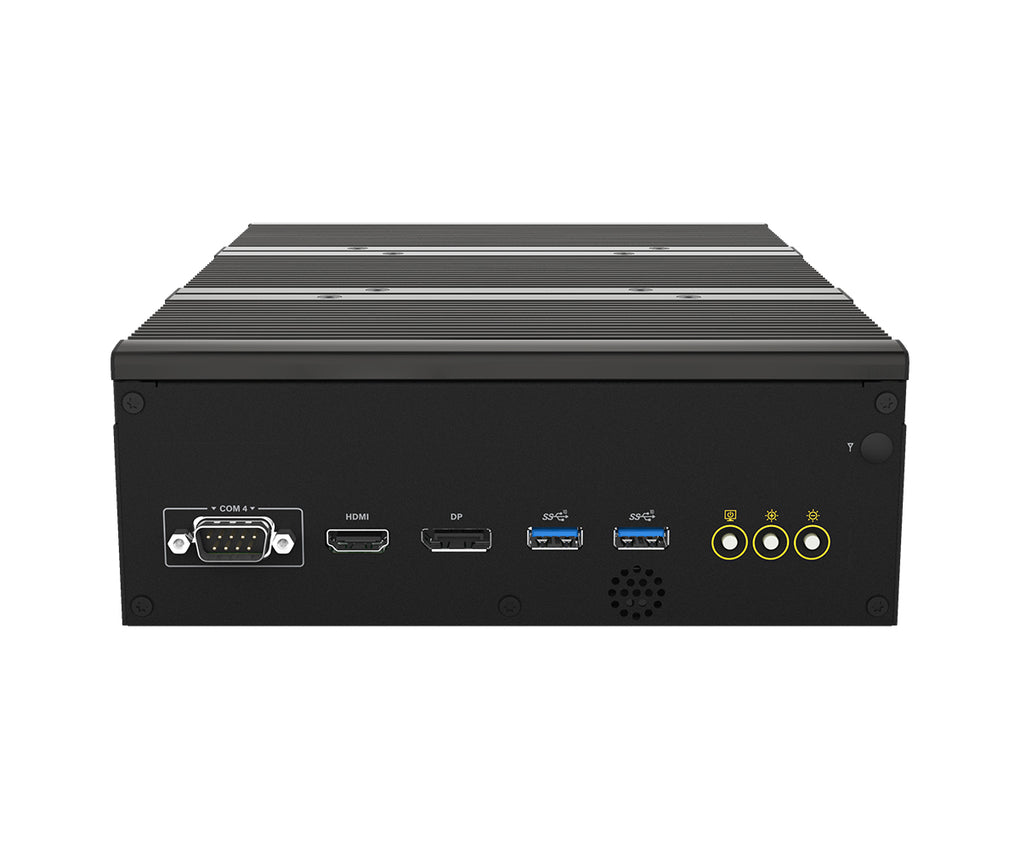

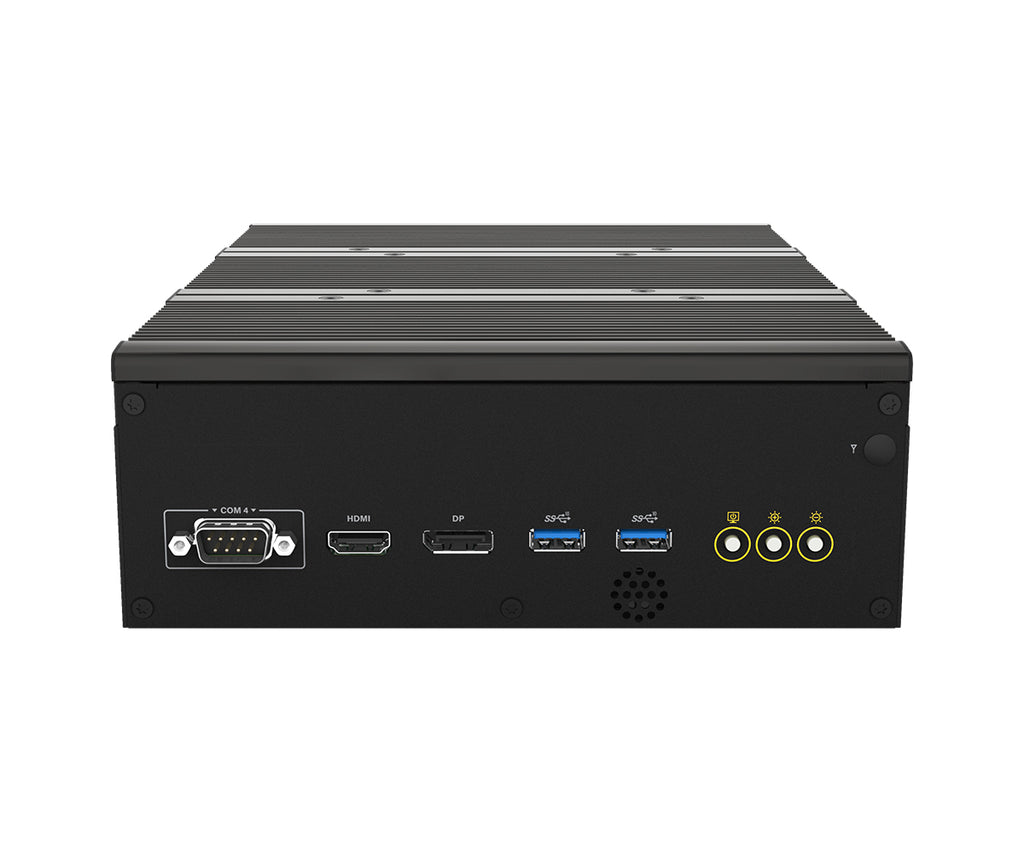

Left Side Panel I/O	1 x COM (RS232/422/485 with Auto Flow Control, Supports 5V/12V) 1 x HDMI 1 x DisplayPort 2 x USB 3.2 (Gen2x2) 1 x Display Power Button 2 x Display Brightness Buttons

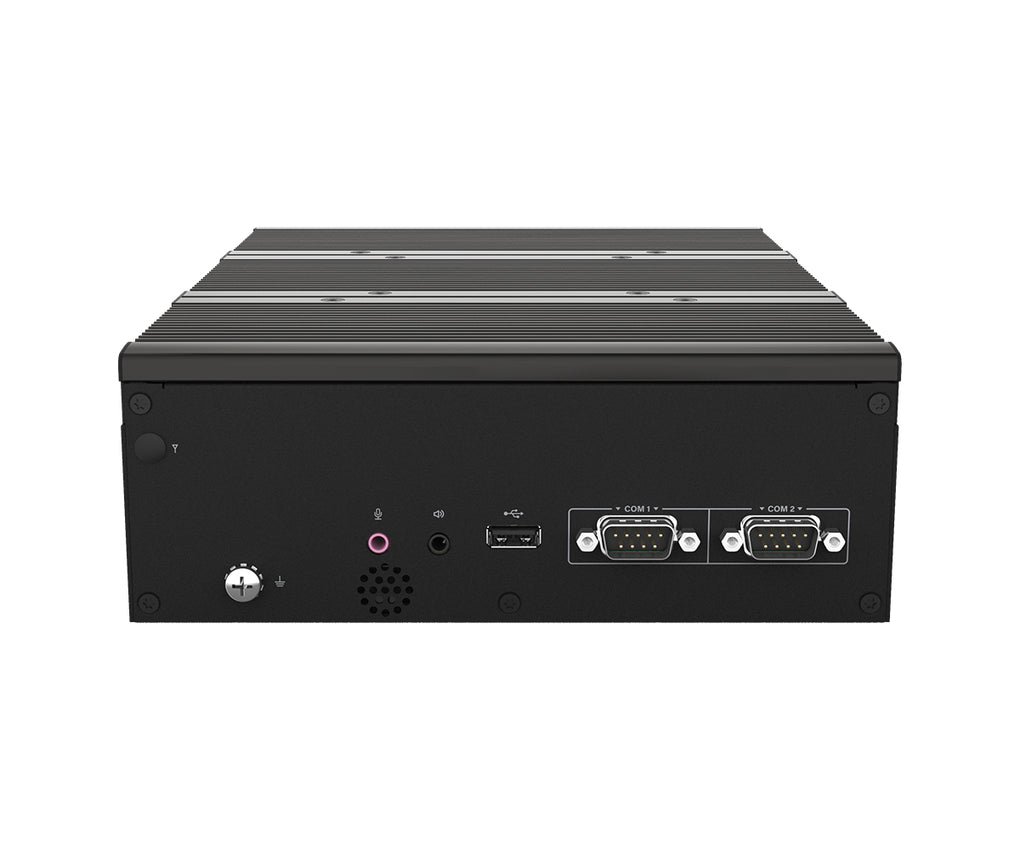

Right Side Panel I/O	1 x GND Screw 2 x Audio I/O 1 x USB 2.0 2 x COM (RS232/422/485 with Auto Flow Control, Supports 5V/12V)
Drive Support	2 x 2.5" SATA Drive Bay
OS Support	Windows 10 Windows 11 Ubuntu Desktop 24.04 LTS
Power Supply	9-48V Terminal Block DC-IN
Case Dimensions	254.5 x 190 x 69mm 10.0" x 7.5" x 2.72" (in inches)
Mounting	Wall VESA CDS DIN Rail
Environmental	Operating Temperature: -40°C to 65°C (-40°F to 149°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Relative Humidity: 95% RH @65°C (non-condensing) Shock: MIL-STD-810H Vibration: MIL-STD-810H
Compliance	CE, UKCA, FCC, ICES-003 Class A
Warranty	2-Year Manufacturer's Limited Warranty
