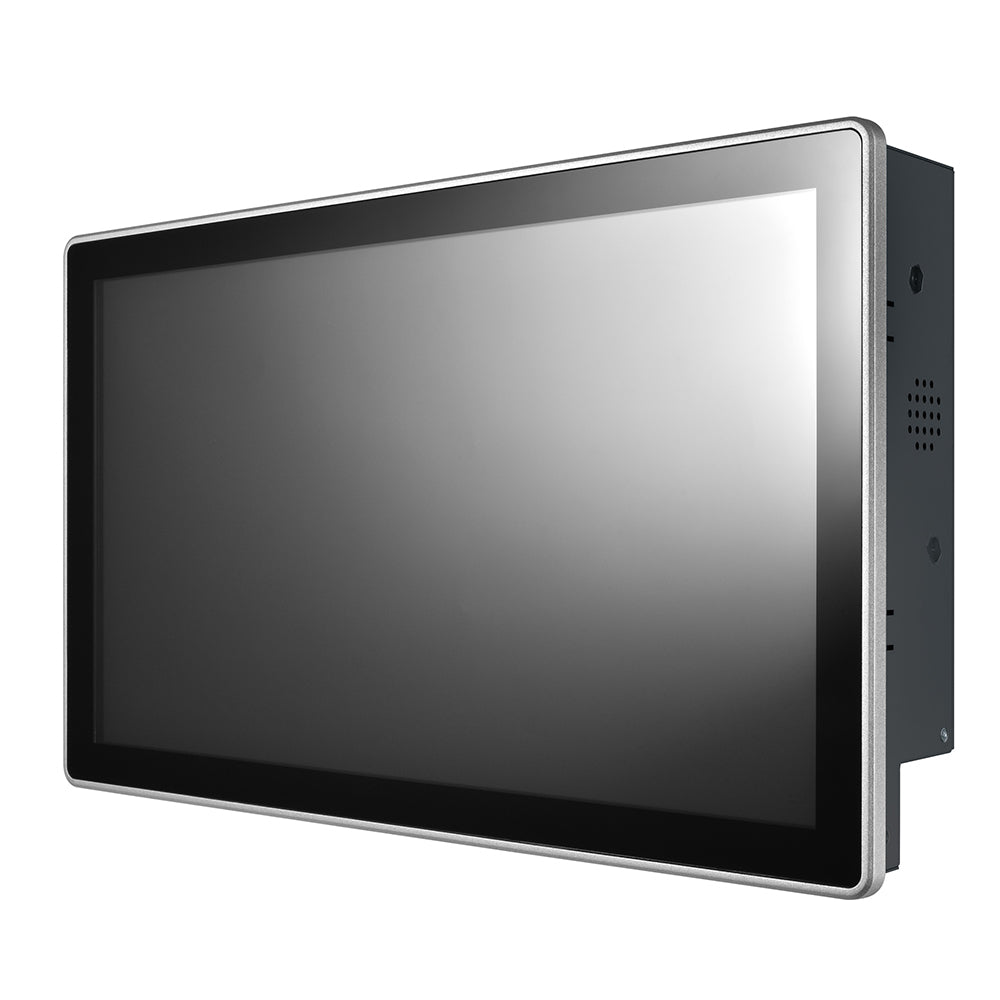

| Manufacturer |
Mitac |
| Model Number |
P156-11TGS |
| Part Number |
P156-11TGS-UP3i7 |
| LCD |
Display Type: 15.6" TFT-LCD
Max Resolution: 1920x1080
Max Colors: 16.2M (8 bit / color)
Luminance: 450 cd/m2
View Angle (H/V): 176°/176°
LED Backlight Lifetime: 50,000 hrs
Front Panel IP65 Compliant
|
| Touch Screen |
Type: P-CAP
Touch Screen: True-flat 10 points / single point
|
| CPU |
Intel Core i7-1185G7E Processor
4 Cores / 8 Threads
1.80 - 4.40 GHz
15W TDP, 12MB Intel Smart Cache
|
| Chipset |
SoC |
| Memory |
1 x DDR4 SODIMM slot
Maximum 32GB Memory
3200 MHz
|
| Video |
Intel Iris Xe Graphics
350MHz - 1.35 GHz
96 Execution Units
LCD Max Resolution: 1920x1080
HDMI Max Resolution: 3840x2160@30Hz
|
| Audio |
2 x 3W Stereo Speaker |
| Storage Technology |
1 x SATA 6Gb/s port
|
| Connectivity |
1 x Intel I219-LM GbE LAN
1 x Intel I225-LM 2.5GbE LAN
|
| Expansion Slots |
1 x M.2 2280/2260/2242/3042/3052 slot (B Key, USB 2.0/PCIe x1/SATA3)
Note: Does not support M Key NVMe SSD
1 x M.2 2230 slot for Wireless (PCIe x1/USB) |
| Bottom Panel I/O |
1 x 3-Pin Phoenix Type Terminal Block 8-24V DC Input
2 x HDMI 1.4
1 x RJ45 GbE LAN
1 x RJ45 2.5G LAN
4 x USB 3.1 (Gen2)
1 x 2-Pin Terminal Block Remote Power On/Off Switch
3 x COM (RS232)
1 x COM (RS232/422/485)
|
| Rear Panel I/O |
1 x Power Button
2 x Status LED
1 x Reset Button
|
| Drive Support |
1 x 2.5" Drive Bay
1 x M.2 2280/2260/2242/3042/3052 slot (B Key, USB 2.0/PCIe x1/SATA3) |
| Power Supply |
3-Pin Terminal Block 8-24V DC-IN
65W 19V Power Adapter
|
| Dimensions |
LCD: 15.6"
235.6 x 386.2 x 83mm
9.28" x 15.20" x 3.27" (in inches)
Weight: 5kg, 11.1lbs |
| Mounting |
VESA 75x75mm/100x100mm
Panel Mount
|
| Environmental |
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Non-operating Temperature: -20°C to 70°C (-4°F to 158°F)
Non-operating Humidty: 10% to 90% (at 40°C non-condensing)
Vibration Resistance: Operating Random Vibration Test 5-500Hz, 0.3 Grms with HDD / 2Grms with SSD
Shock Resistance: Operating 10 G Peak Acceleration (11 ms duration) |
| Compliance |
CE / FCC Class B |
| Warranty |
1-Year Warranty on Parts and Labor |
