| Manufacturer |
Cincoze
|
| Product ID |
P1301-X7425E-R10
|
| Model Name |
P1301
|
| CPU |
Intel Atom x7425E Processor
4 Cores
3.40 GHz
12W TDP, 6MB Cache
|
| Chipset |
SoC
|
| Memory |
1 x DDR5 SODIMM slot
Maximum 16GB Capacity
4800 MHz
|
| Video |
Intel UHD Graphics
1.00 GHz
24 Execution Units
DisplayPort Max Resolution: 3840x2160@60Hz
CDS Connector Max Resolution: 1920x1080@60Hz
VGA Max Resolution: 1920x1200@60Hz
Supports Triple Displays
|
| Audio |
Realtek ALC888 HD Audio
|
| Storage Technology |
1 x SATA Connector
1 x M.2 3042/3052 slot (PCI-E 3.0 x1, USB 3.2 Gen1, SATA)
|
| Connectivity |
2 x Intel I225 2.5GbE LAN
|
| Expansion Slots |
1 x M.2 3042/3052 slot (PCI-E 3.0 x1, USB 3.2 Gen1, SATA)
1 x SIM socket
1 x M.2 2230 slot (PCI-E 3.0 x1, USB 2.0)
1 x CFM Interface for optional IGN Module expansion
1 x CFM Interface for optional PoE Module expansion
|

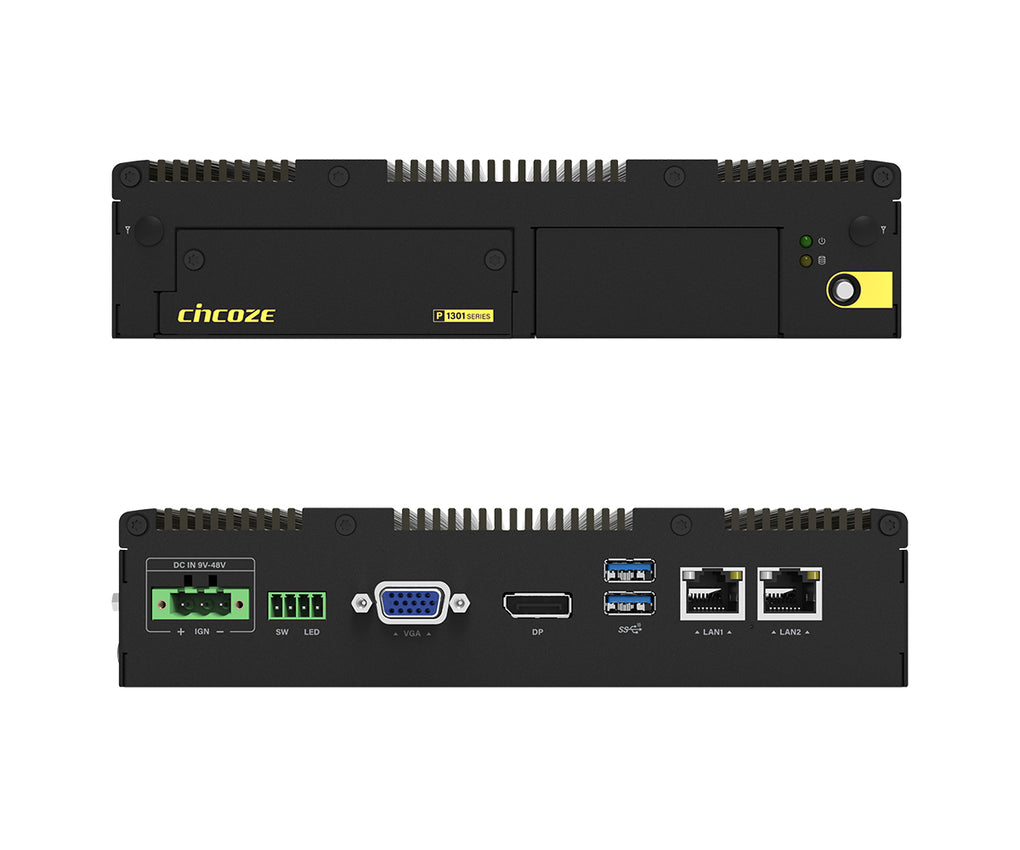

| Rear Panel I/O |
1 x 9-48V 3-Pin Terminal Block DC-IN
1 x 4-Pin Terminal Block Remote Power Switch and LED
1 x VGA
1 x DisplayPort
2 x USB 3.2 (Gen2x1)
2 x RJ45 2.5GbE LAN
|
| Front Panel I/O |
2 x Antenna Cutout Holes
1 x Power LED
1 x HDD LED
1 x Power Button
|

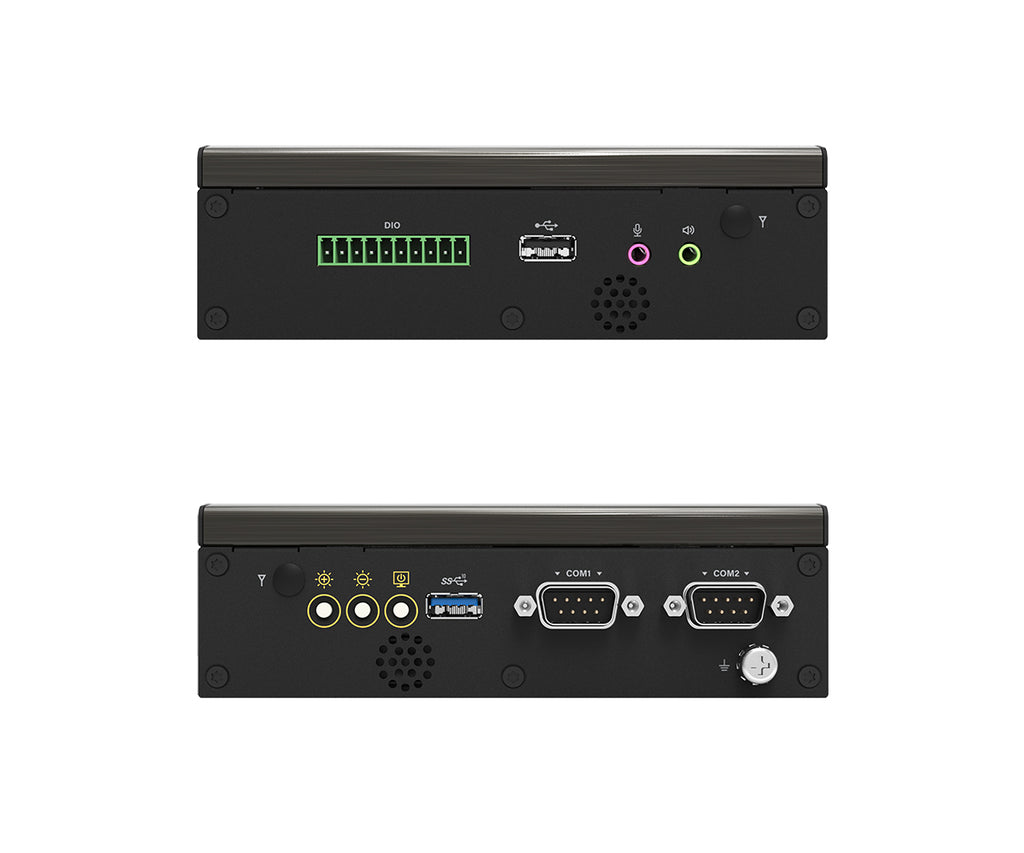

| Left Side Panel I/O |
1 x 10-Pin Terminal Block 8x Isolated DIO (4 in/4 out)
1 x USB 2.0
2 x Audio I/O
1 x Antenna Cutout
|
| Right Side Panel I/O |
1 x Antenna Cutout
3 x CDS Monitor Control (Brightness, Power)
1 x USB 3.2 (Gen2x1)
2 x COM (RS232/422/485 with Auto Flow Control Support 5V/12V)
1 x GND Screw
|
| Drive Support |
1 x SATA Connector
1 x M.2 3042/3052 slot (PCI-E 3.0 x1, USB 3.2 Gen1, SATA)
|
| OS Support |
Windows 10, Windows 11
Ubuntu Desktop 22.04 LTS
|
| Power Supply |
9-48V 3-Pin Terminal Block DC-IN
|
| Case Dimensions |
204.5 x 149 x 46.5mm
8.05" x 5.87" x 1.83" (in inches)
|
| Mounting |
Wallmount
VESA Mount
DIN Rail Mount
CDS Mount
|
| Environmental |
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F)
Non-Operating Humidity: 95% RH @70°C (non-condensing)
Vibration: 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6)
Shock: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
|
| Compliance |
CE, UKCA, FCC, ICES-003 Class A
EN61000-6-4, EN61000-6-2 @ DC-input 24V
UL, cUL, CB, IEC, EN 62368-1
|
| Warranty |
2-Year Manufacturer's Limited Warranty
|
