| Manufacturer |
Cincoze |
| Product ID |
P1201-X6425E-R11 |
| Model Name |
P1201 |
| CPU |
Intel® Atom® x6425E Processor
4 Cores / 4 Threads
2.0-3.0 GHz
12W TDP, 1.5MB Cache
|
| Chipset |
SoC
|
| Memory |
1 x DDR4 SODIMM slot
Maximum 32GB Capacity
3200 MHz
|
| Video |
Intel UHD Graphics
500-750 MHz
32 Execution Units
DisplayPort Max Resolution: 3840x2160@60Hz
CDS Connector Max Resolution: 1920x1080@60Hz
VGA Max Resolution: 1920x1200@60Hz
Supports Triple Displays
|
| Audio |
Realtek ALC888 HD Audio
|
| Storage Technology |
1 x SATA Connector
1 x mSATA |
| Connectivity |
2 x Intel I210 Gigabit |
| Expansion Slots |
1 x Mini-PCIe (shared with mSATA socket)
1 x SIM socket
1 x M.2 2230 slot (Type E for Wireless module)
1 x CFM Interface for optional IGN Module expansion
1 x CFM Interface for optional PoE Module expansion

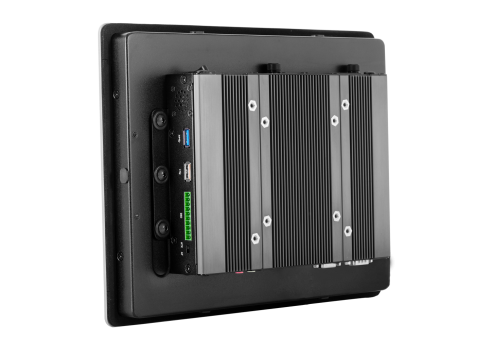

1 x CDS Interface for Convertible Display Module |

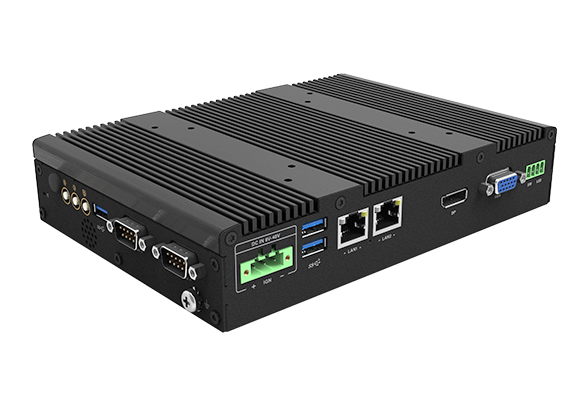

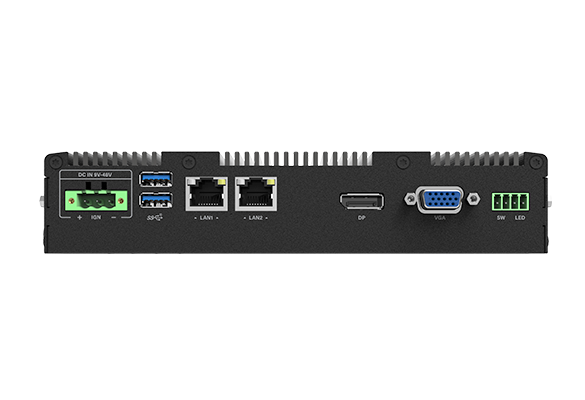

| Rear Panel I/O |
1 x 9-48V 3-Pin Terminal Block DC-IN
1 x 4-Pin Terminal Block Remote Power Switch and LED
1 x VGA
1 x DisplayPort
2 x USB 3.2 (Gen2)
2 x RJ45 1Gb LAN
|

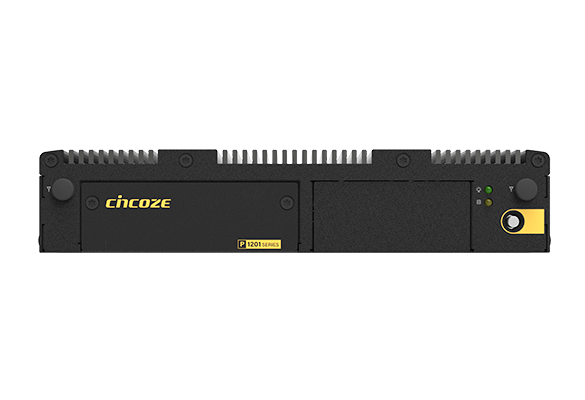

| Front Panel I/O |
2 x Antenna Cutout
1 x Power LED
1 x HDD LED
1 x Power Button
|

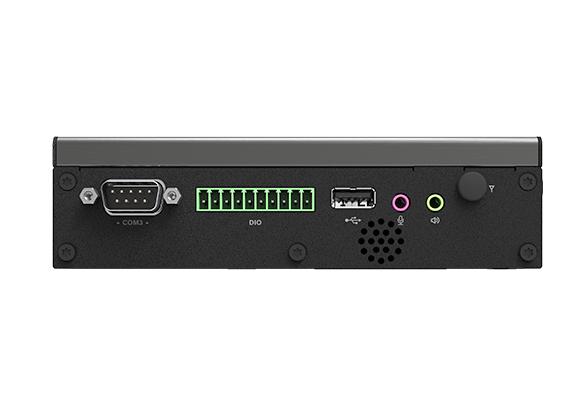

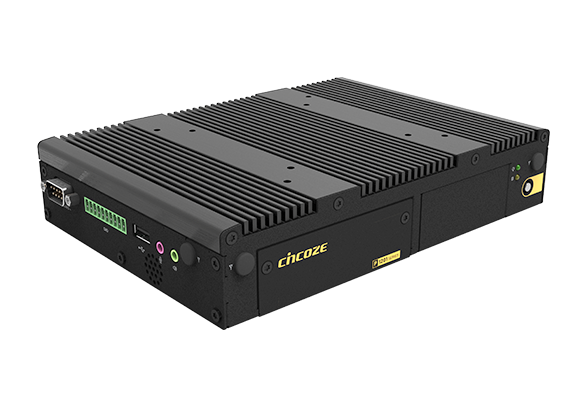

| Left Side Panel I/O |
1 x 10-Pin Terminal Block 8x Isolated DIO (4 in/4 out)
1 x USB 2.0
2 x Audio I/O
1 x Antenna Cutout
|

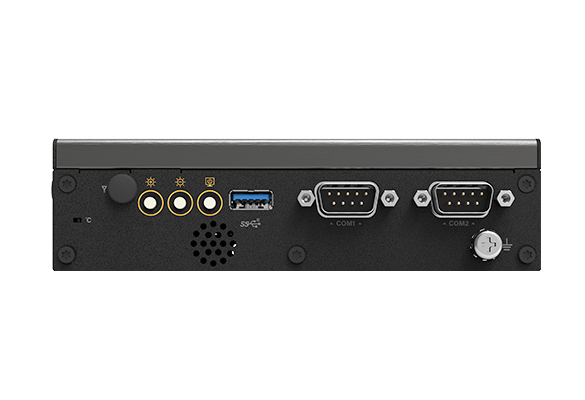

| Right Side Panel I/O |
1 x Antenna Cutout
3 x CDS Monitor Control (Brightness, Power)
1 x USB 3.2 (Gen2)
2 x COM (RS232/422/485 with Auto Flow Control Support 5V/12V)
1 x GND Screw
|
| Drive Support |
1 x 2.5" Front-accessible SATA Drive
1 x mSATA |
| OS Support |
Windows 10, Windows 11
Linux support (by project) |
| Power Supply |
9-48V 3-Pin Terminal Block DC-IN
|
| Case Dimensions |
204.5 x 149 x 41.5mm
8.05" x 5.87" x 1.63" (in inches)
|
| Mounting |
Wallmount
VESA Mount
DIN Rail Mount
CDS Mount
|
| Environmental |
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
With extended temperature peripherals; Ambient with air flow
According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Humidity: 95% RH @70°C (non-condensing)
Vibration: Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6)
Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
Shock: Operating, 50 Grms (w/ SSD, according to IEC60068-2-27)
|
| EMC |
CE, UKCA, FCC, ICES-003 Class A
EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
|
| EMI |
CISPR 32 Conducted & Radiated: Class A
EN/BS EN 55032 Conducted & Radiated: Class A
EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
EN/BS EN61000-3-3 Voltage fluctuations & flicker
FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
|
| EMC |
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
EN/IEC 61000-4-6 CS: 10V
EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
|
| Safety |
UL, cUL, CB, IEC, EN 62368-1
|
| Warranty |
2-Year Manufacturer's Limited Warranty |
