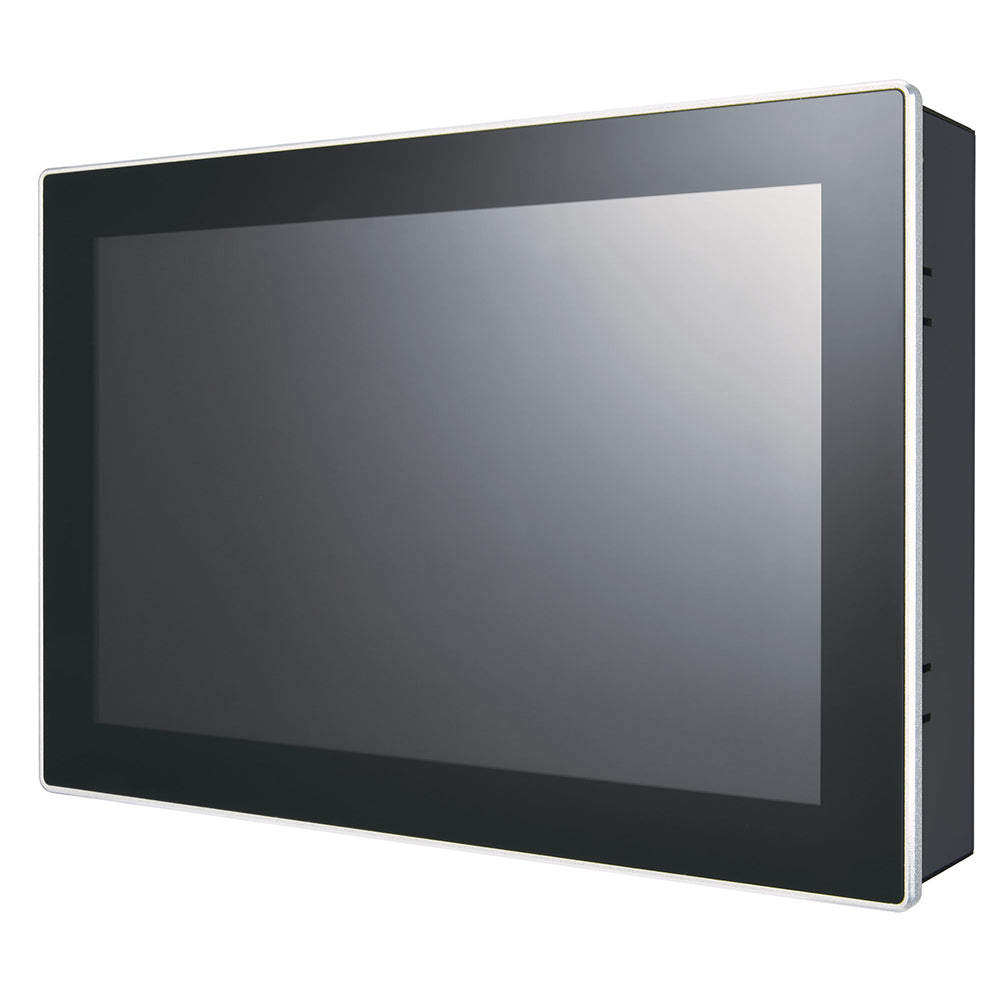

| Manufacturer |
Mitac |
| Model Number |
P100-10AS
|
| Part Number |
P100-10AS-N4200 |
| LCD |
Display Type: 10.1" TFT-LCD
Max Resolution: 1280x800
Max Colors: 16.7M (8 bit / color)
Luminance: 400 cd/m2
View Angle (H/V): 170°/170°
LED Backlight Lifetime: 30,000 hrs
IP65 Compliant |
| Touch Screen |
Type: P-CAP
Touch Screen: True-flat 10 points
|
| CPU |
Intel Pentium N4200 Processor
1.1 - 2.5 GHz
4 Cores / 4 Threads
6W TDP, 2MB L2 Cache
|
| Chipset |
SoC |
| Memory |
1 x DDR3 SODIMM slot
Maximum 8GB Capacity
1866 MHz
Non-ECC, Unbuffered Memory Only |
| Video |
Intel HD Graphics 500
200 - 750 MHz
LCD Max Resolution: 1280x800
VGA Max Resolution: 1920x1200
HDMI Max Resolution: 4096x2160@24Hz
Supports Triple Displays
|
| Audio |
N/A |
| Storage Technology |
1 x SATA 6Gb/s port
|
| Connectivity |
2 x Intel I210-IT GbE LAN
|
| Expansion Slots |
1 x Mini PCI-E slot (full sized, PCIe/USB/SATA)
1 x M.2 2230 slot for Wireless (PCIe/USB) |
| Bottom Panel I/O |
1 x GPIO 8-Bit Terminal Block
1 x 3-Pin Phoenix Type Terminal Block DC-In
2 x COM (RS232/422/485)
1 x HDMI
1 x VGA
2 x RJ45 GbE LAN
4 x USB 3.0
|
| Drive Support |
1 x 2.5" Drive Bay
1 x Mini PCI-E Slot (support mSATA)
|
| Power Supply |
8-24V DC-IN
65W 19V AC/DC Adapter
|
| Dimensions |
LCD: 10.1"
259.9 x 177.7 x 54mm
10.2" x 7.0" x 2.1" (in inches) |
| Mounting |
VESA 75x75mm
Optional Stand
|
| Environmental |
Operating Temperature: -10°C to 50°C (14°F to 122°F)
Non-operating Temperature: -20°C to 60°C (-4°F to 140°F)
Non-operating Humidty: 10% to 95% (at 40°C non-condensing)
Vibration Resistance: Operating Random Vibration Test 5-500Hz, 0.3 Grms with HDD
Shock Resistance: Operating 50 G Peak Acceleration (3 ms duration) |
| Compliance |
CE / FCC Class A |
| Warranty |
1-Year Warranty on Parts and Labor |
