Manufacturer	APLEX Techonlogy
Product ID	NuTAM-921EP
Model Name	NuTAM - 9E Series
Display	21.5" TFT-LCD Standard Luminance: 250 cd/m2 Max Resolution: 1920x1080 Max Color: 16.7M View Angle: 178(H)/178(V) Contrast: 1000:1 Backlight Lifetime: 50,000 hours IP 66 Compliant Front Bezel
Touch Screen	Projected Capacitive Touch
CPU	Intel Core Ultra 5 125U 2 P-Cores / 8 E-Cores / 2 LP E-Cores / 14 Threads LP E-Cores: 700 MHz - 2.1 GHz E-Cores: 800 MHz - 3.6 GHz P-Cores: 1.3 - 4.3 GHz 12-57W TDP, 12MB Intel Smart Cache
Chipset	SoC Onboard TPM 2.0
Memory	1 x DDR5 SODIMM slot Maximum 48GB Capacity 5600 MHz
Video	Intel Graphics 1.85 GHz GPU Peak TOPS (Int8): 7 Xe-Cores: 4 DisplayPort Max Resolution: 7680x4320@60Hz HDMI Max Resolution: 7680x4320@60Hz TFT-LCD Display Max Resolution: 1920x1080
Audio	Intel Audio
Storage Technology	1 x M.2 2280 slot (PCI-E 4.0, M Key) 1 x SATA Connector
Connectivity	1 x Intel I226V/IT 2.5 GbE LAN Support Wake On LAN
Expansion Slots	1 x M.2 2242/3042/3052 slot (B Key, PCIe x1/USB 3.2, USB 2.0) 1 x SIM Slot 1 x M.2 2230 slot (E Key, PCIe x1/USB 2.0)

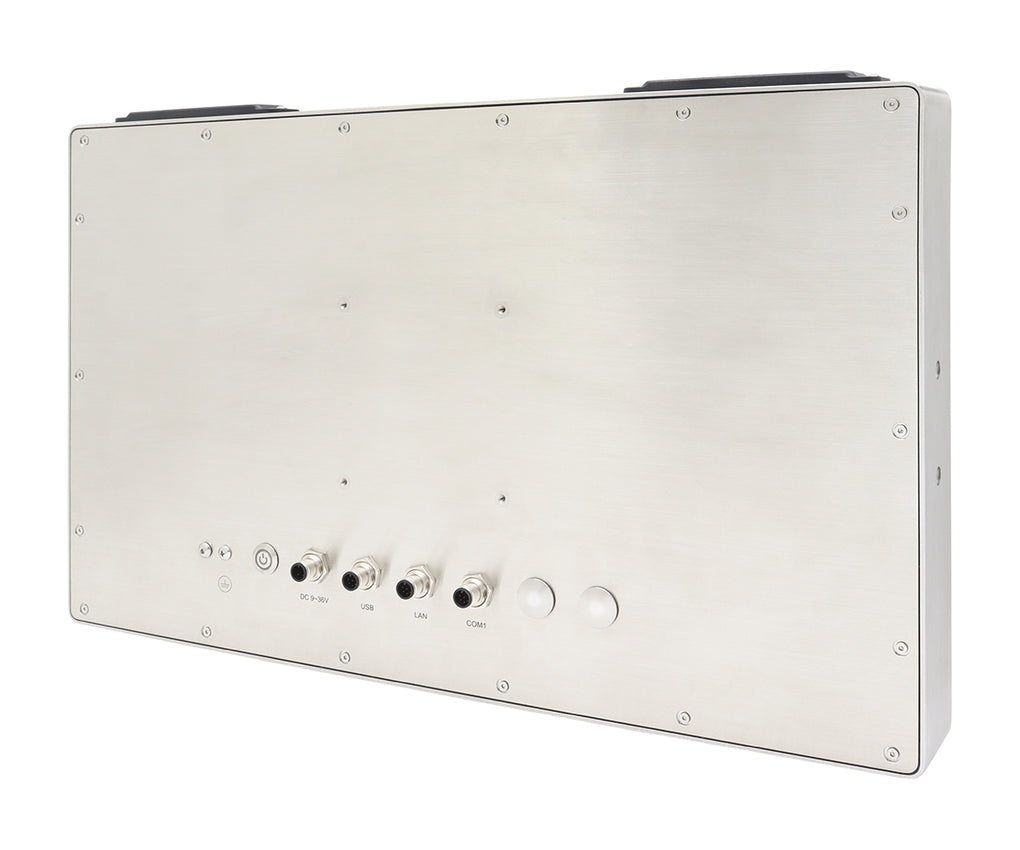

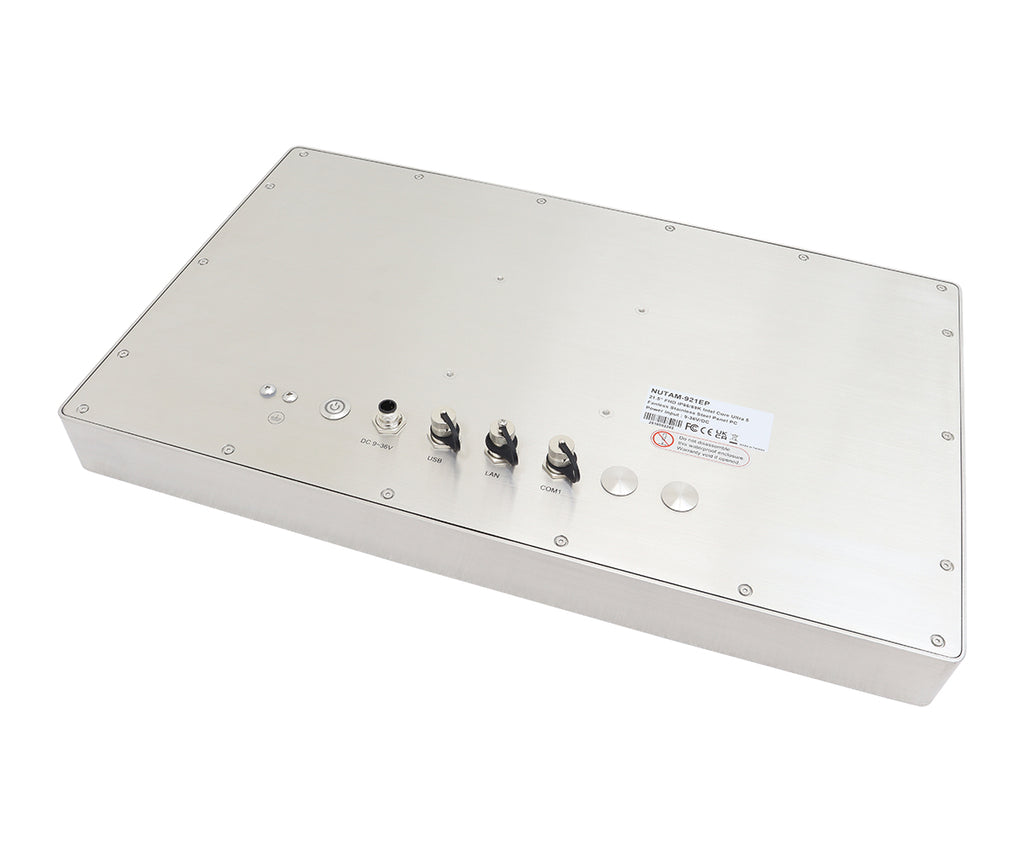

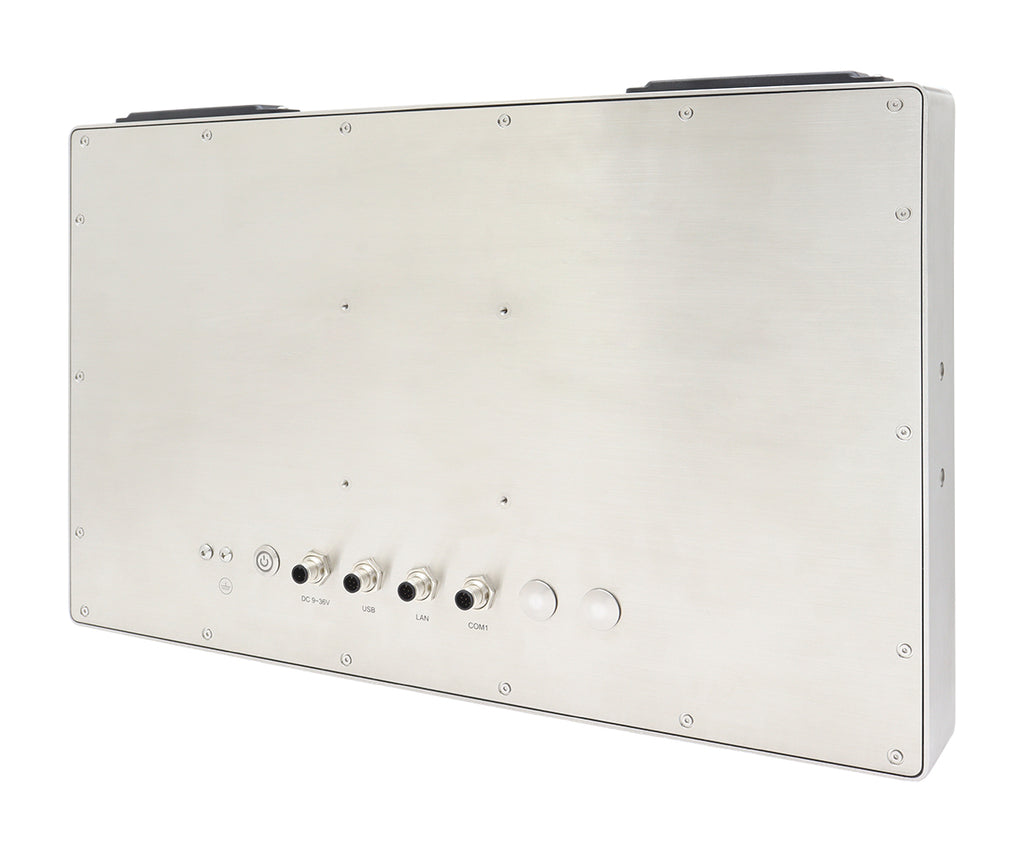

Rear Panel I/O	1 x Power Button 1 x M12 9-36V DC-IN 1 x M12 8-Pin for 2 x USB 2.0 1 x M12 8-Pin for 2.5GbE LAN 1 x M12 8-Pin for COM (RS232/422/485) 2 x M12 Blanks
Drive Support	1 x 2.5" SATA Drive 1 x M.2 2280 slot (PCI-E 4.0, M Key)
OS Support	Windows 10 IoT Enterprise 2021 LTSC or later Windows 11 (21H2) or later Linux 24.04
Power Supply	M12 9-36V DC-IN
Case Dimensions	529.3 x 321 x 49mm 20.9" x 12.6" x 1.9" (in inches)
Mounting	Optional Yoke Mount VESA 100x100
Environmental	Operating Temperature: -20°C to 60°C (-4°F to 140°F) Non-Operating Temperature: -30°C to 70°C (-22°F to 158°F) Humidity: 10% to 95% (non-condensing)
Compliance	CE/FCC, Class A
Warranty	1-Year Warranty on Parts and Labor
