| Manufacturer | APLEX Techonlogy |
| Product ID | NuTAM-821CP |
| Model Name | NuTAM - 8C Series |
| Display | 21.5" TFT-LCD Standard Luminance: 250 cd/m2 Max Resolution: 1920x1080 Max Color: 16.7M View Angle: 178(H)/178(V) Contrast: 1000:1 Backlight Lifetime: 50,000 hours IP 66 Compliant Front Bezel |
| Touch Screen | Projected Capacitive Touch |
| CPU | Intel Atom x7425E Processor 3.4 GHz 4 Cores 12W TDP, 6 MB Cache |
| Chipset | SoC Onboard TPM 2.0 |
| Memory | 1 x DDR5 SODIMM slot Maximum 32GB Capacity 4800 MHz |
| Video | Intel UHD Grahpics 1.00 GHz 24 Execution Units HDMI Max Resolution: 4096x2160@30Hz TFT-LCD Max Resolution: 1920x1080 |
| Audio | Intel Audio |
| Storage Technology | 1 x M.2 2280 slot (PCI-E 3.0 x1, SATA, M Key) 1 x SATA Connector |
| Connectivity | 1 x Intel I226V/IT 2.5 GbE LAN Support Wake On LAN |
| Expansion Slots | 1 x M.2 2242/3042/3052 slot (B Key, PCIe x1/USB 3.2, USB 2.0) 1 x Nano SIM Holder 1 x M.2 2230 slot (E Key, PCIe x1/USB 2.0) |

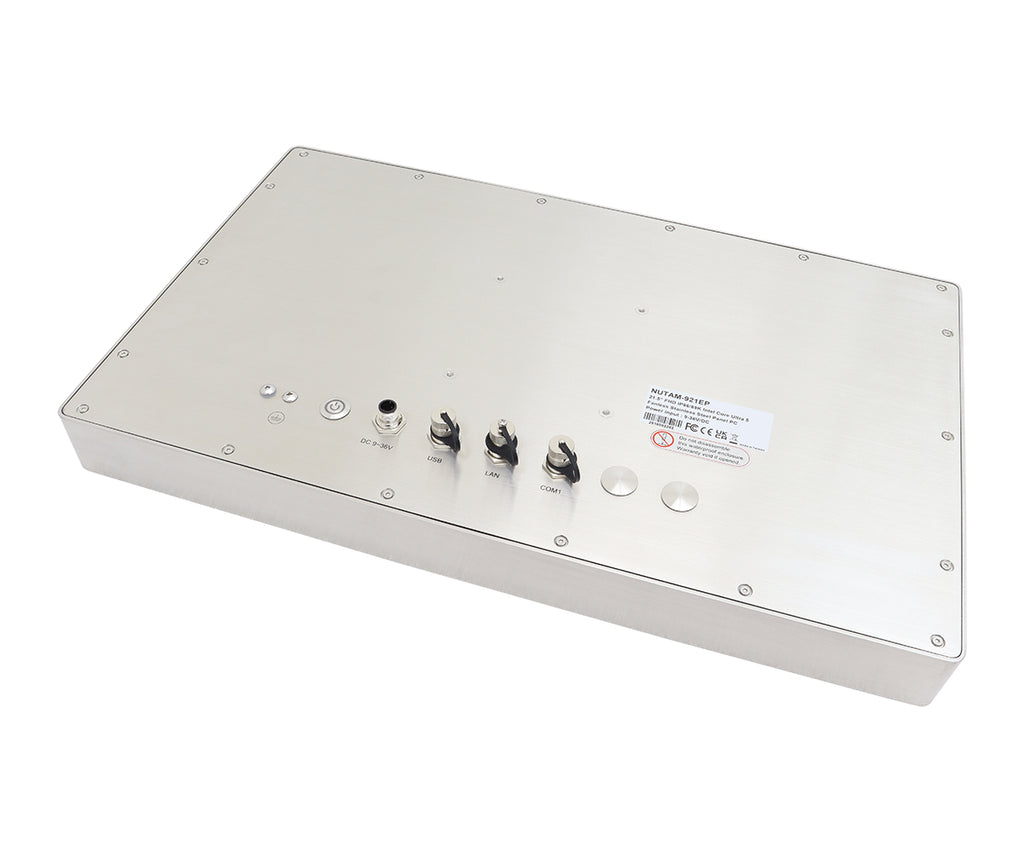

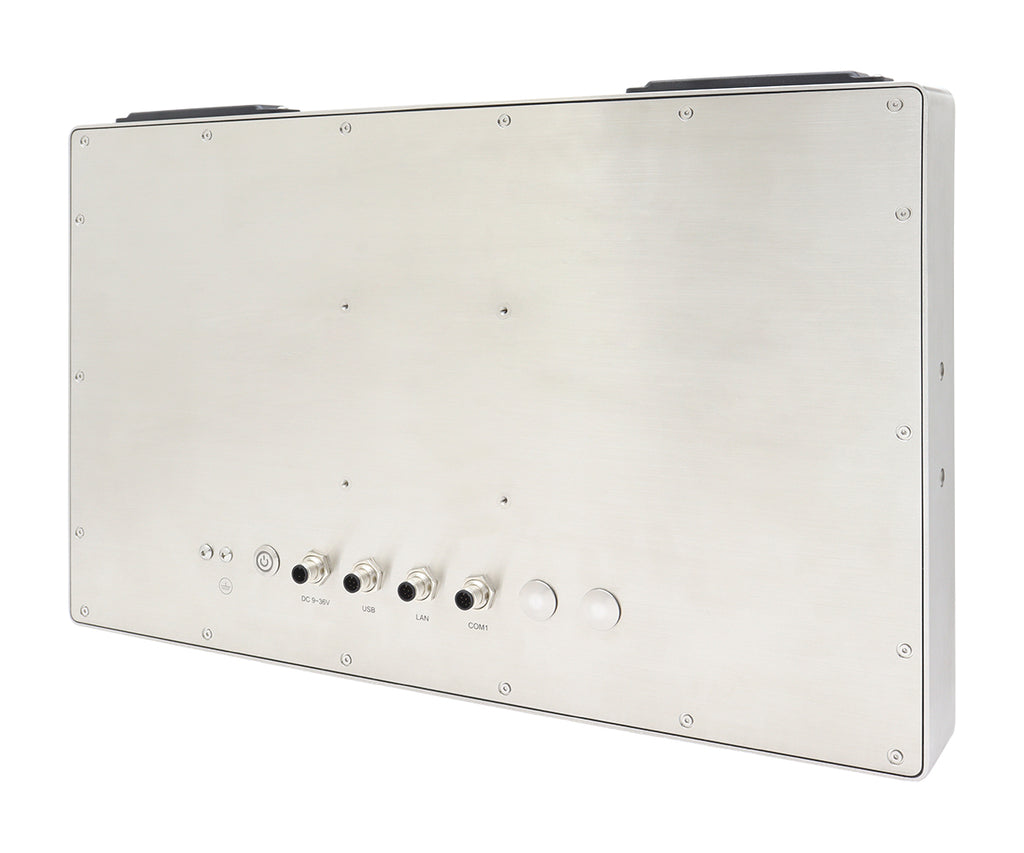

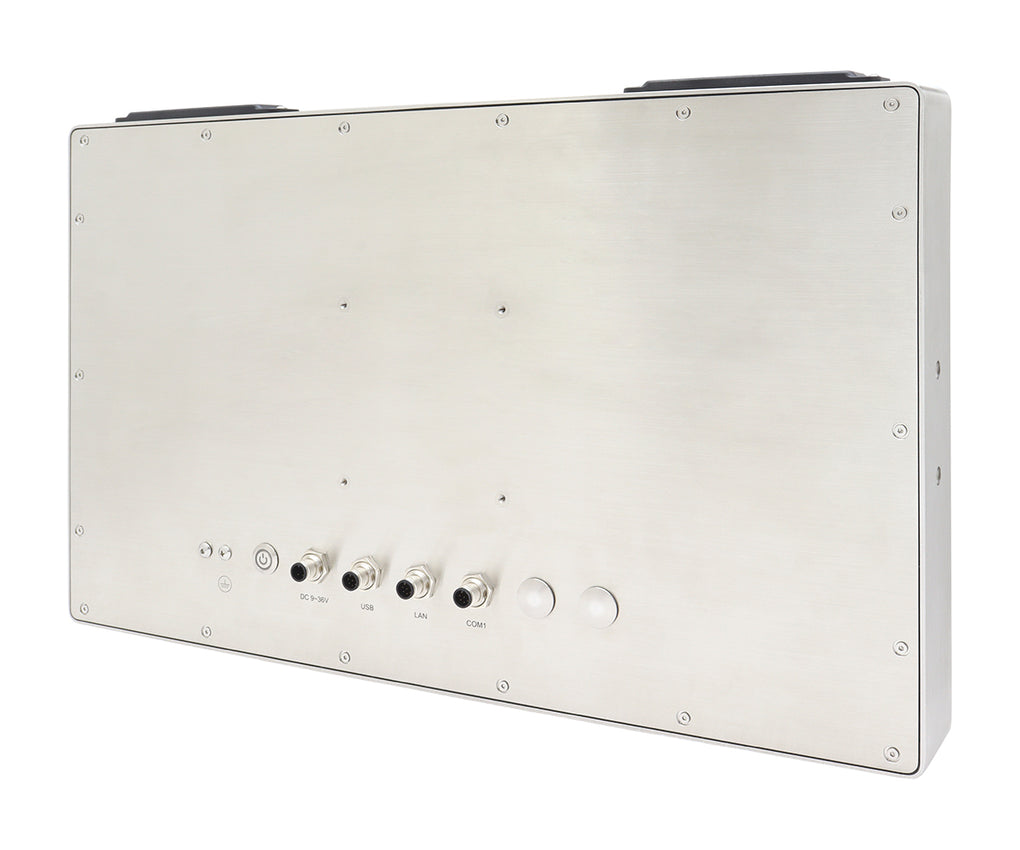

| Rear Panel I/O | 1 x Power Button 1 x M12 9-36V DC-IN 1 x M12 8-Pin for 2 x USB 2.0 1 x M12 8-Pin for 2.5GbE LAN 1 x M12 8-Pin for COM (RS232/422/485) 2 x M12 Blanks |
| Drive Support | 1 x 2.5" SATA Drive 1 x M.2 2280 slot (PCI-E 3.0 x1, SATA, M Key) |
| OS Support | Windows 10 IoT Enterprise 2021 LTSC or later Windows 11 (21H2) or later Linux 24.04 |
| Power Supply | M12 9-36V DC-IN |
| Case Dimensions | 529.3 x 321 x 49mm 20.8" x 12.6" x 1.9" (in inches) |
| Mounting | Optional Yoke Mount VESA 100x100 |
| Environmental | Operating Temperature: -20°C to 60°C (-4°F to 140°F) Non-Operating Temperature: -30°C to 70°C (-22°F to 158°F) Humidity: 10% to 95% (non-condensing) |
| Compliance | CE/FCC, Class A |
| Warranty | 1-Year Warranty on Parts and Labor |
