Manufacturer	APLEX Techonlogy
Product ID	NuTAM-816CP
Model Name	NuTAM - 8C Series

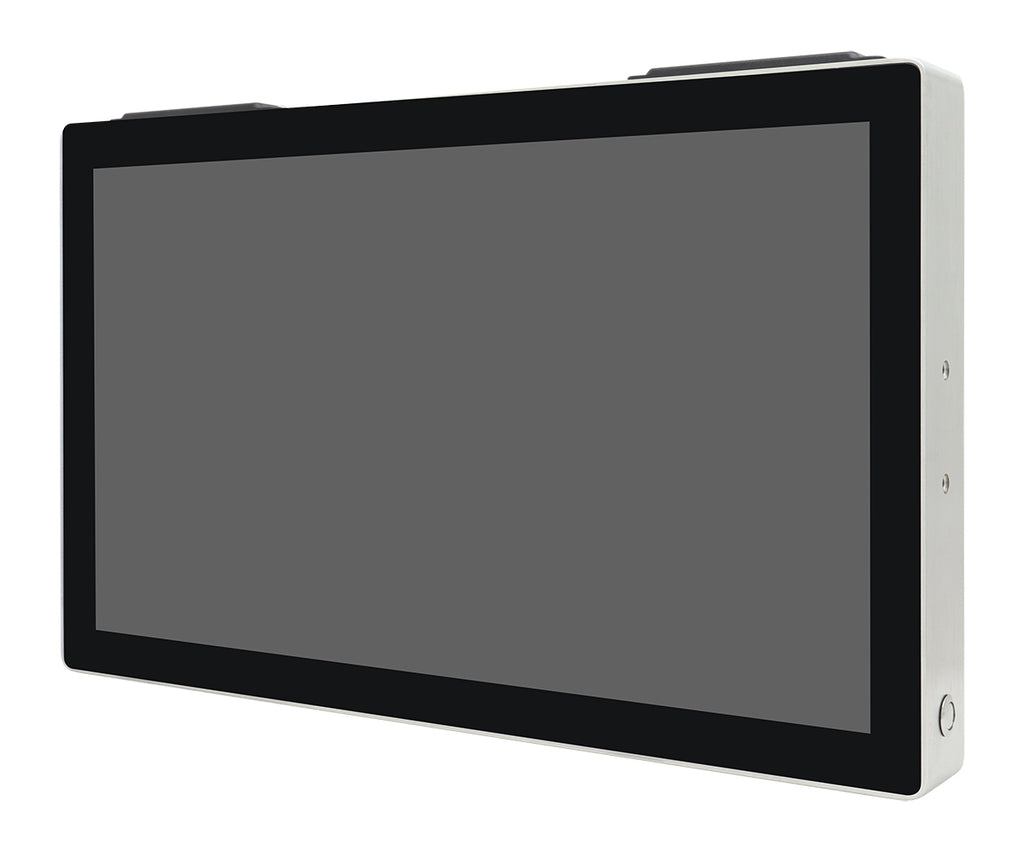

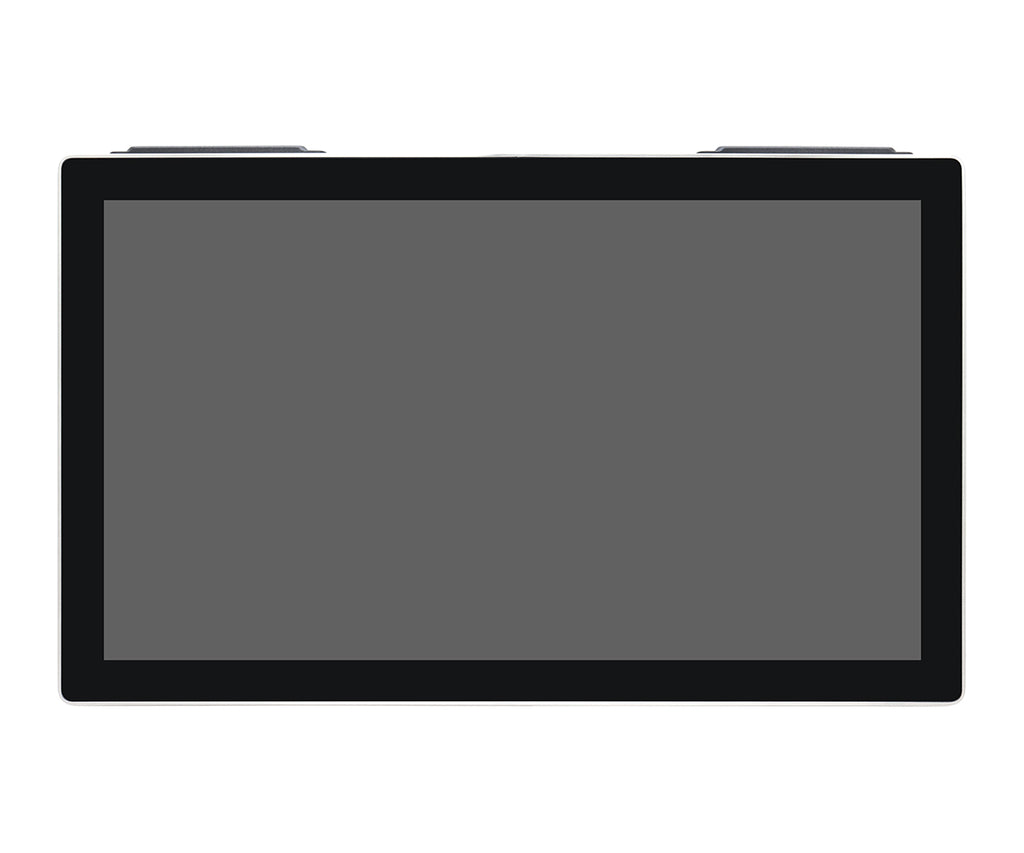

Display	15.6" TFT-LCD Standard Luminance: 350 cd/m2 Max Resolution: 1920x1080 Max Color: 16.2M View Angle: 170(H)/170(V) Contrast: 800:1 Backlight Lifetime: 30,000 hours IP 66 Compliant Front Bezel
Touch Screen	Projected Capacitive Touch
CPU	Intel Atom x7425E Processor 3.4 GHz 4 Cores 12W TDP, 6 MB Cache
Chipset	SoC Onboard TPM 2.0
Memory	1 x DDR5 SODIMM slot Maximum 32GB Capacity 4800 MHz
Video	Intel UHD Grahpics 1.00 GHz 24 Execution Units HDMI Max Resolution: 4096x2160@30Hz TFT-LCD Max Resolution: 1920x1080
Audio	Intel Audio
Storage Technology	1 x M.2 2280 slot (PCI-E 3.0 x1, SATA, M Key) 1 x SATA Connector
Connectivity	1 x Intel I226V/IT 2.5 GbE LAN Support Wake On LAN
Expansion Slots	1 x M.2 2242/3042/3052 slot (B Key, PCIe x1/USB 3.2, USB 2.0) 1 x Nano SIM Holder 1 x M.2 2230 slot (E Key, PCIe x1/USB 2.0)

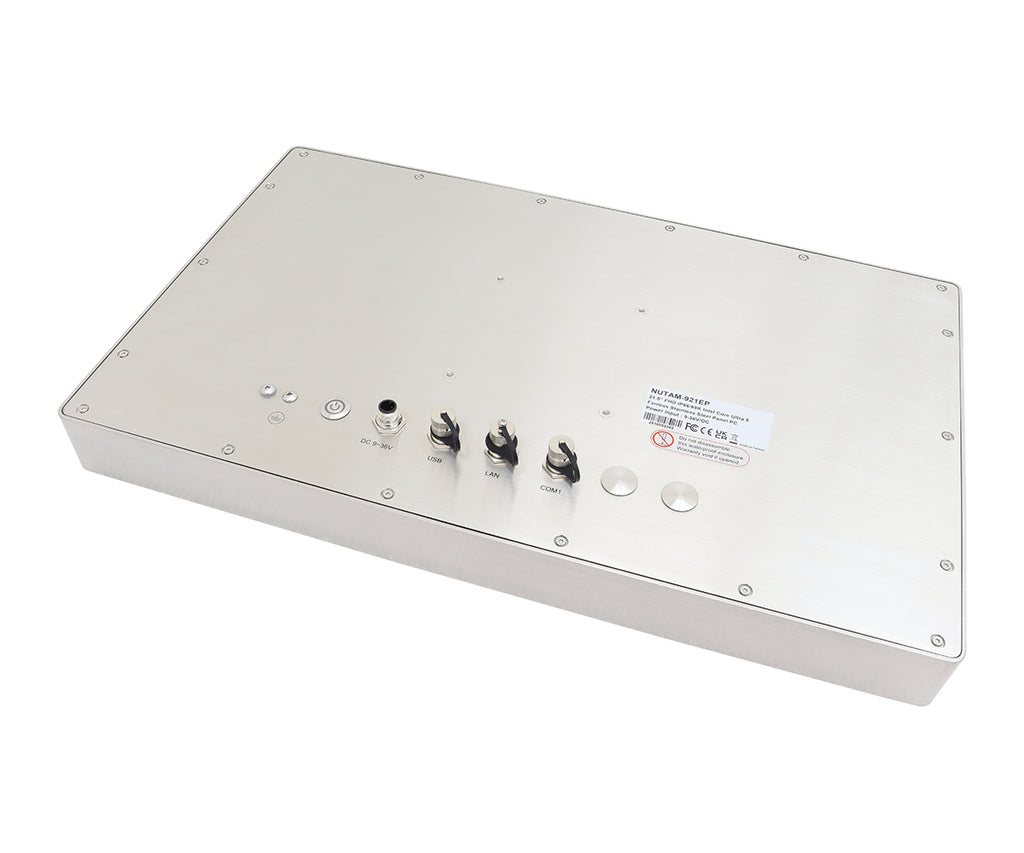

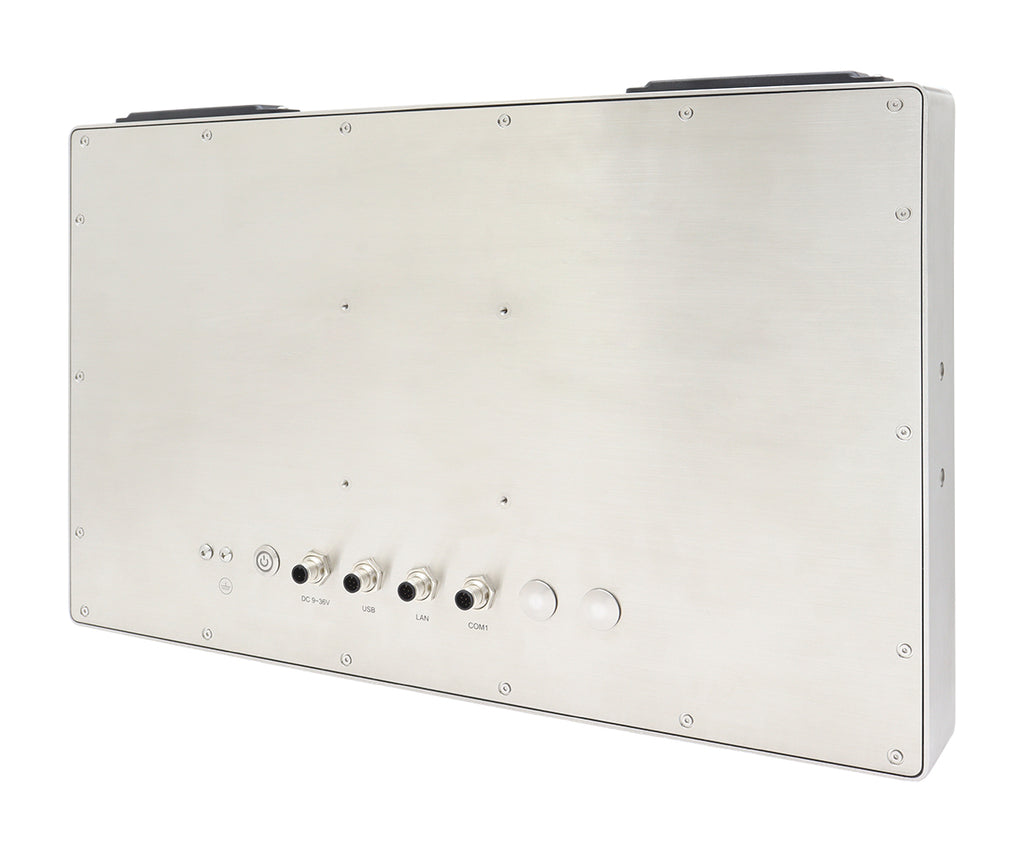

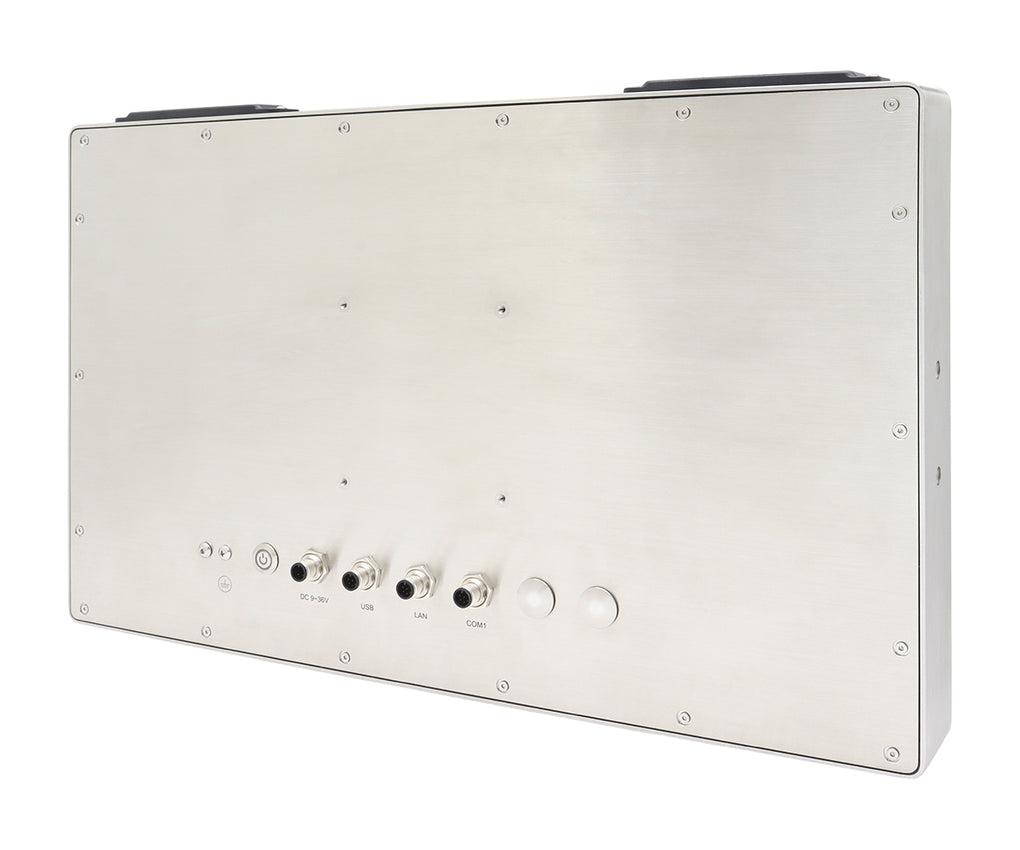

Rear Panel I/O	1 x Power Button 1 x M12 9-36V DC-IN 1 x M12 8-Pin for 2 x USB 2.0 1 x M12 8-Pin for 2.5GbE LAN 1 x M12 8-Pin for COM (RS232/422/485) 2 x M12 Blanks
Drive Support	1 x 2.5" SATA Drive 1 x M.2 2280 slot (PCI-E 3.0 x1, SATA, M Key)
OS Support	Windows 10 IoT Enterprise 2021 LTSC or later Windows 11 (21H2) or later Linux 24.04
Power Supply	M12 9-36V DC-IN
Case Dimensions	396.8 x 246.2 x 49mm 15.6" x 9.7" x 1.9" (in inches)
Mounting	Optional Yoke Mount VESA 100x100
Environmental	Operating Temperature: -20°C to 60°C (-4°F to 140°F) Non-Operating Temperature: -30°C to 70°C (-22°F to 158°F) Humidity: 10% to 95% (non-condensing)
Compliance	CE/FCC, Class A
Warranty	1-Year Warranty on Parts and Labor
