| Manufacturer | ASUS |
| Product ID | |
| Model Name | NUC16GDK |
| CPU |
Intel Core Ultra x9 388H 4 P-Cores / 8 E-Cores / 4 Low Power E-Cores / 16 Threads Low Power E-Core Frequency: 1.6 - 3.7 GHz E-Core Frequency: 1.6 - 4.0 GHz P-Core Frequency: 2.1 - 5.1 GHz 15-80W TDP, 18 MB Intel Smart Cache |
| Chipset |
SoC Intel fTPM 2.0 |
| Memory |
2 x DDR5 SODIMM slots Maximum 96GB Capacity |
| Video |
Intel Arc B390 Graphics 2.5 GHz 122 GPU Peak TOPS (Int8) 12 Xe-Cores Supports Quad Displays |
| Audio |
Digital Audio on HDMI and DP 7.1 Multi Channel |
| Storage Technology |
1 x M.2 2280 slots (PCI-E 5.0 x4) 1 x M.2 2280 slots (PCI-E 4.0 x4) |
| Connectivity |
2 x Intel 2.5G LAN Intel WIFI 7 Bluetooth 6.0 |
| Expansion Slots |
1 x Expansion I/O Accessory |

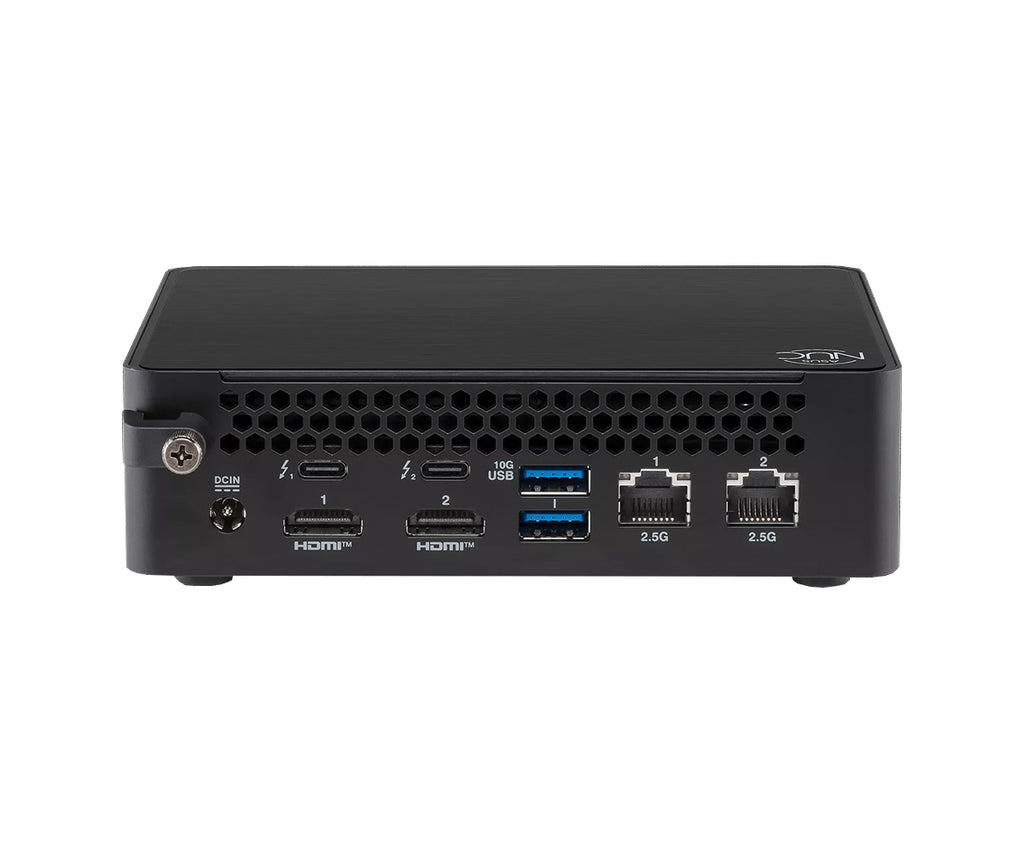

| Rear Panel I/O |
1 x DC-IN 2 x Thunderbolt 4 2 x HDMI or DP 2 x USB 3.2 (Gen2) 2 x RJ45 2.5G LAN |

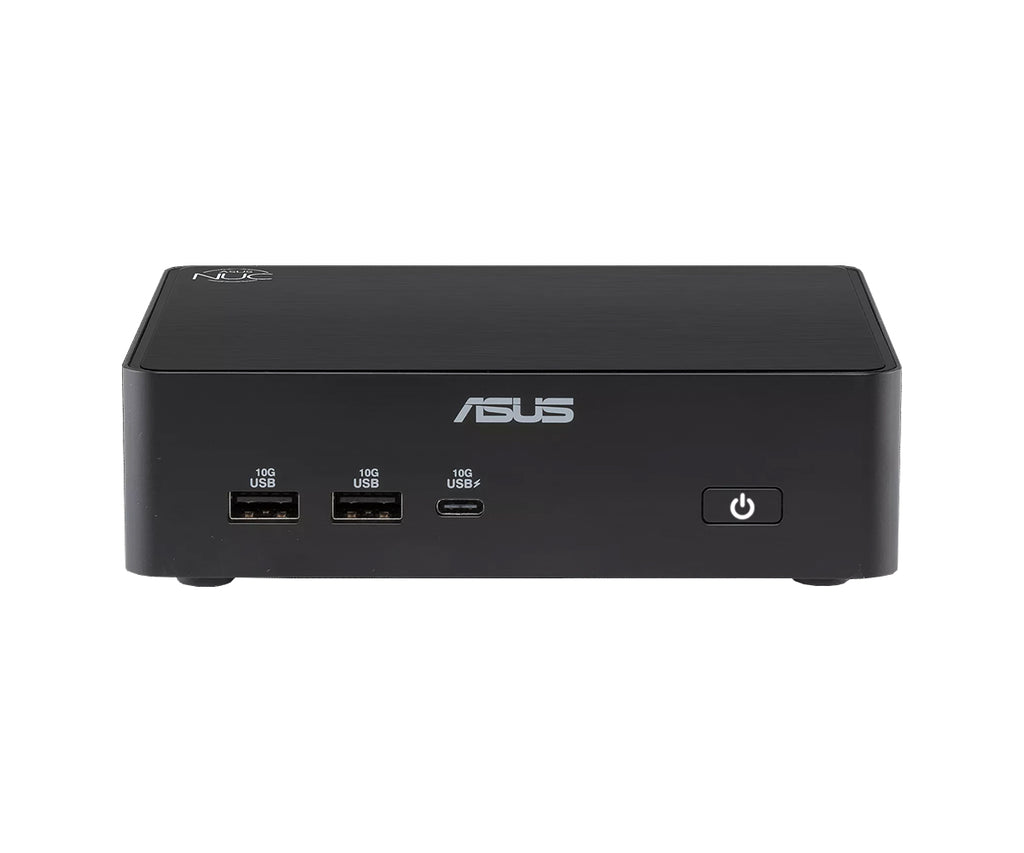

| Front Panel I/O |
2 x USB 3.2 (Gen2) 1 x USB 3.2 (Gen2x1) Type-C 1 x Power Button with LED |
| Drive Support |
1 x M.2 2280 slots (PCI-E 5.0 x4) 1 x M.2 2280 slots (PCI-E 4.0 x4) |
| OS Support |
Windows 11 Home Windows 11 Pro Windows 11 IoT Enterprise Ubuntu 24.04 LTS RedHat Enterprise Linux 10.0 |
| Power Supply |
1 x DC-IN 150W AC Adapater |
| Case Dimensions |
5.67" x 4.60" x 1.65" (in inches) 144 x 117 x 42mm |
| Mounting |
VESA Mounting Plate Included |
| Environmental |
Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-Operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Humidity: 0% to 92% (non-condensing) |
| Warranty | 3-Year Warranty on Parts and Labor |
