| Manufacturer | ASRock Industrial |
| Product ID | NUC BOX-N97/D5 |
| CPU | Intel Alder Lake N97 Processor 4 Cores 3.60 GHz 12W TDP, 6MB Intel Smart Cache |
| Chipset | MCP TPM 2.0 onboard IC |
| Memory | 1 x DDR5 SO-DIMM slot (Single Channel) 4800MHz Maximum 32GB Capacity |
| Video | Intel UHD Graphics HDMI Max Resolution: 4096x2160@60Hz DisplayPort Max Resolution: 4096x2160@60Hz Supports Triple Display |
| Audio | Realtek ALC256 HD Audio |
| Storage Technology | 1 x SATA3 6.0Gb/s 1 x M.2: PCI-E 3.0 x1 and SATA |
| Connectivity | 2 x Realtek RTL8125BG 2.5GbE LAN Pre-Installed Wi-Fi 6E 802.11ax + BT 5.2 Module |
| Expansion Slots | 1 x M.2 2230 slot (E Key, PCIe x1, USB 2.0, CNVio/CNVio2 for Wireless) - Populated with Wi-Fi 6E Module |

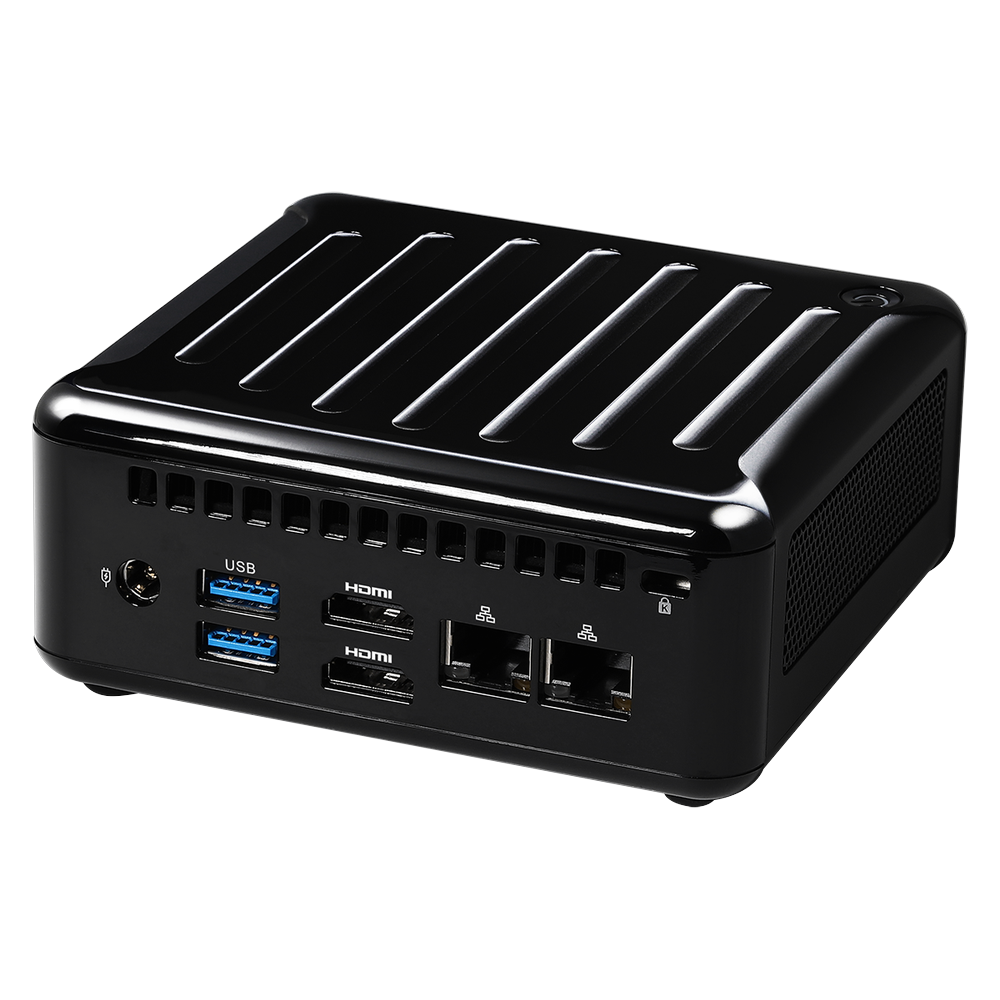

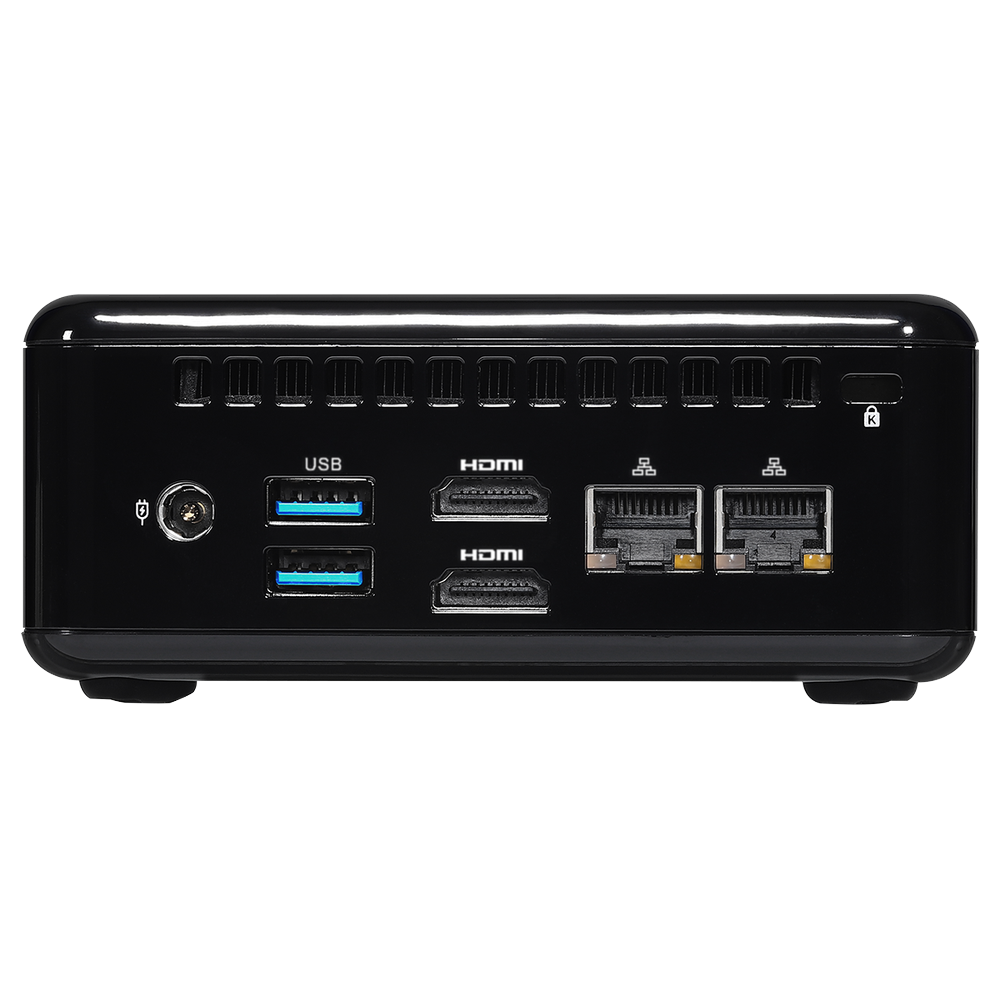

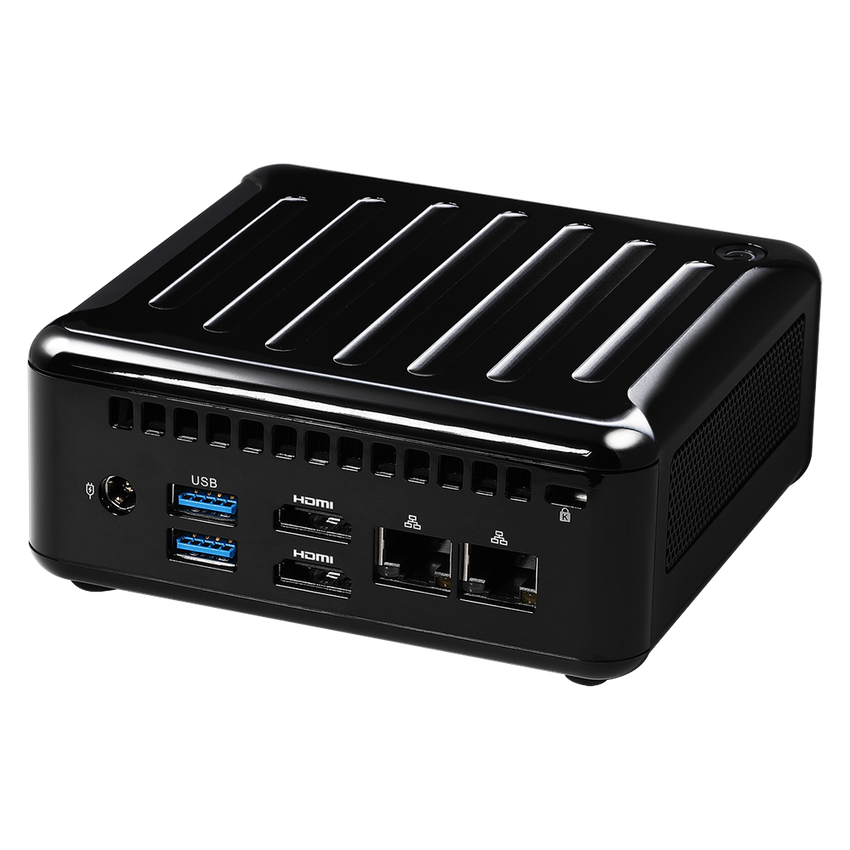

| Rear Panel I/O | 1 x DC-IN Jack 2 x USB 3.2 (Gen2) Type-A 2 x HDMI 2.0b 2 x RJ45 2.5GbE LAN |

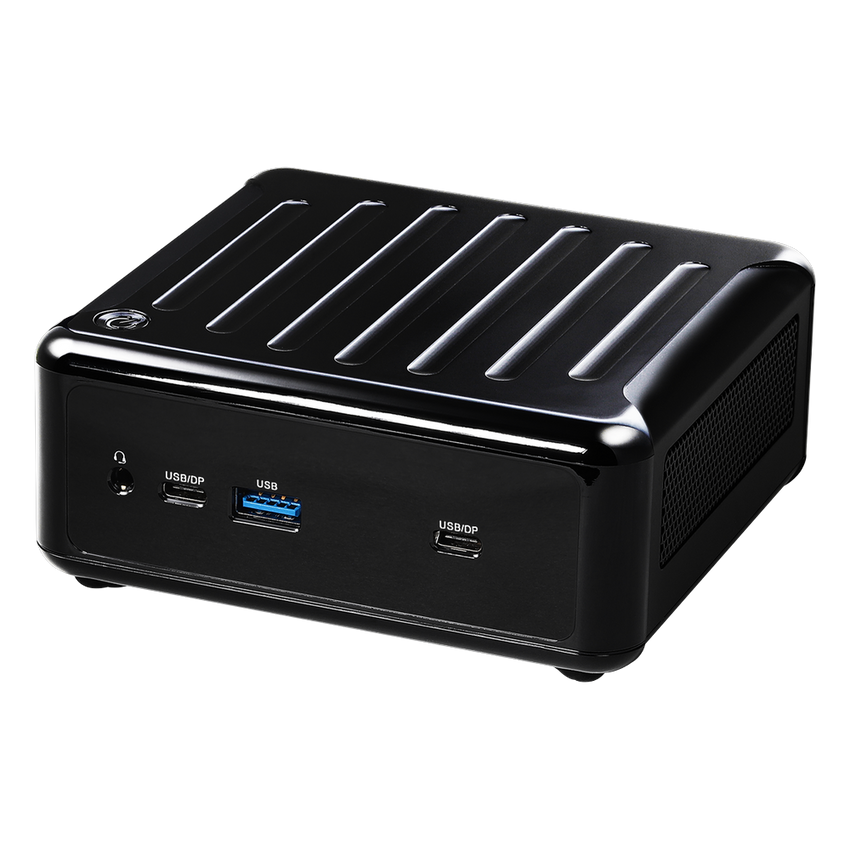

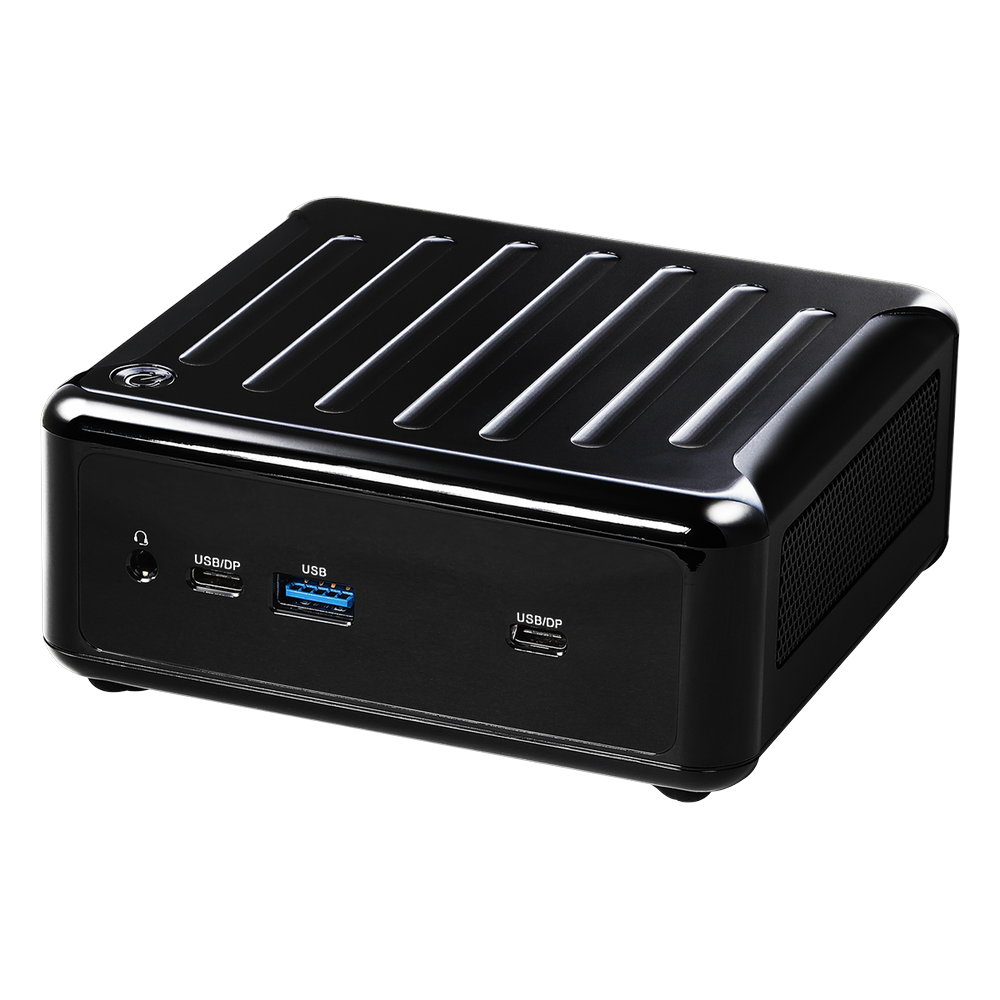

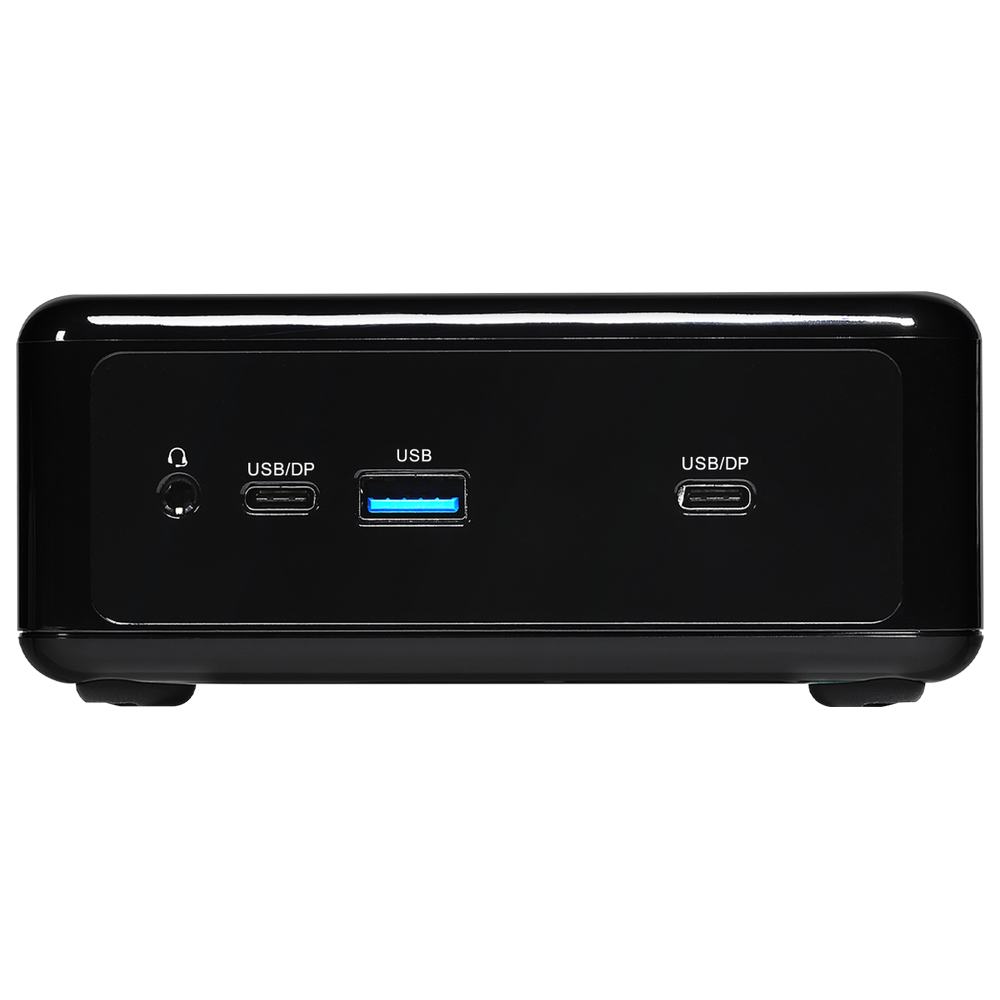

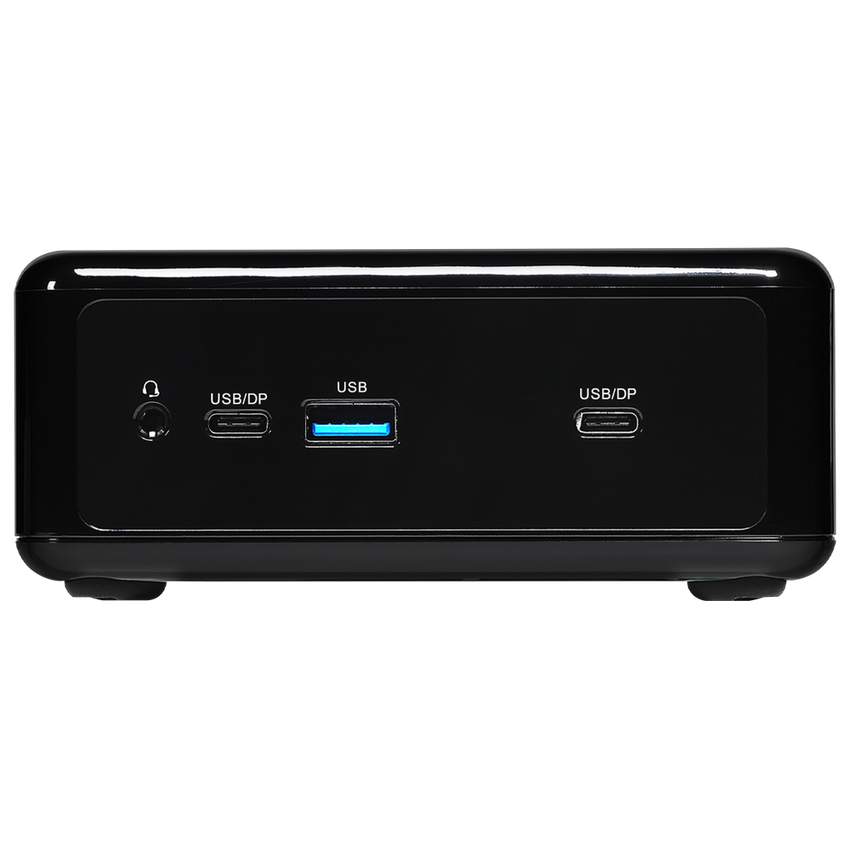

| Front Panel I/O | 1 x Audio Jack (Headphone and Microphone) 2 x USB 3.2 (Gen2) Type-C (Supports DP1.4a display output) 1 x USB 3.2 (Gen2) Type-A Internal: 1 x COM Header (RS-232/422/485) |
| Drive Support | 1 x SATA3.0 (6.0Gb/s) for 2.5" Drive 1 x M.2 2242/2260/2280 slot (M Key, PCI-E 3.0 x1, SATA) Note: 2280 Supported with Bracket |
| OS Support | Windows 11 Windows 10 |
| Power Supply | 9V ~ 24V DC-IN (AT/ATX Supported) 19V/65W Power Adapter Included |
| Case Dimensions | 117.5 x 110.0 x 47.85mm 4.63" x 4.33" x 1.88" (in inches) |
| Mounting | VESA Mount (Bracket Included) |
| Environmental | Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% (non-condensing) Storage Humidity: 5% to 90% (non-condensing) |
| Compliance | CE, FCC |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: NUC BOX-N97/D5
