| Manufacturer | ASRock Industrial |
| Product ID | NUC BOX-125H R2 |
| CPU | Intel Core Ultra 5 processor 125H 4 P-Cores / 8 E-Cores / 18 Threads P-Core Frequency: 1.2 - 4.5 GHz E-Core Frequency: 700 MHz - 3.6 GHz Minimum Assured Power: 20W Processor Base Power: 28W Maximum Turbo Power: 115W 18 MB Intel Smart Cache |
| Chipset | SoC Intel PTT (TPM) |
| Memory | 2 x DDR5 SODIMM slots Maximum 96GB Capacity 5600 MHz Dual Channel |
| Video | Intel Arc Graphics 2.2 GHz Xe-Cores: 7 HDMI 2.1 Max Resolution: 4096x2160@60Hz DisplayPort 2.1 / 1.4a Max Resolution: 4096x2160@60Hz Supports Quad Displays (Included 2 outputs from Type-C) |
| Audio | Realtek ALC256 HD Audio |
| Storage Technology | 1 x SATA3 6Gb/s Connector 1 x M.2 2280/2242: PCI-E 4.0 x4 1 x M.2 2242: PCI-E 4.0 x4 Intel VMD RAID 0/1 (Supported by identical interface) |
| Connectivity | 1 x Intel I226LM 2.5GbE LAN 1 x Intel I226V 2.5GbE LAN WIFI 6E 802.11ax BT 5.3 |
| Expansion Slots | 1 x M.2 2230 slot (Occupied by WIFI) |

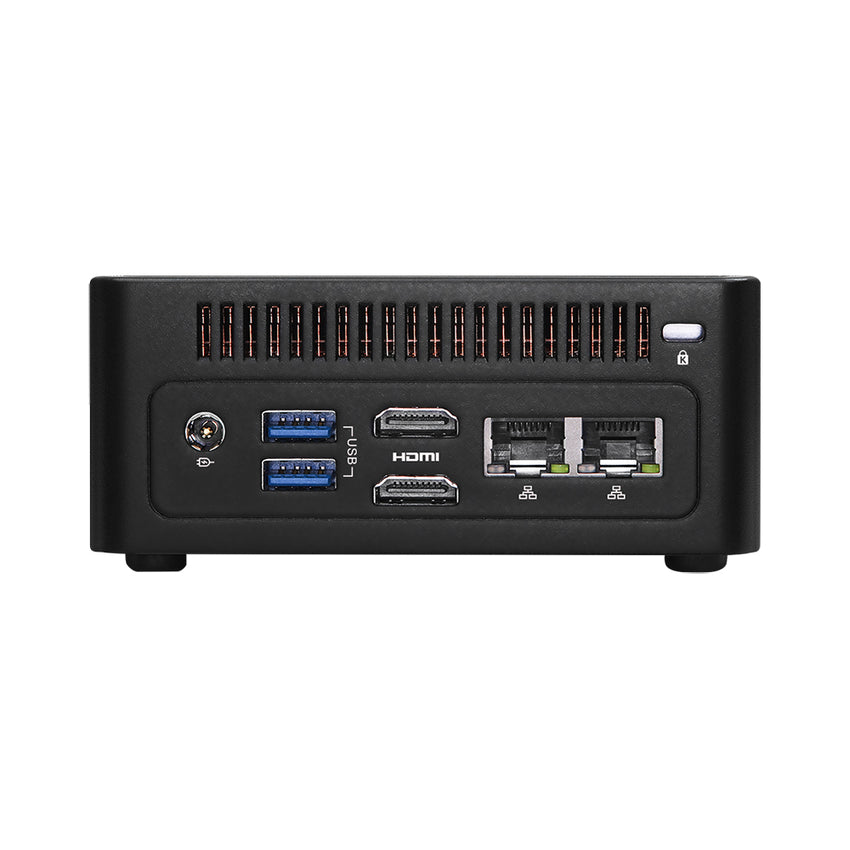

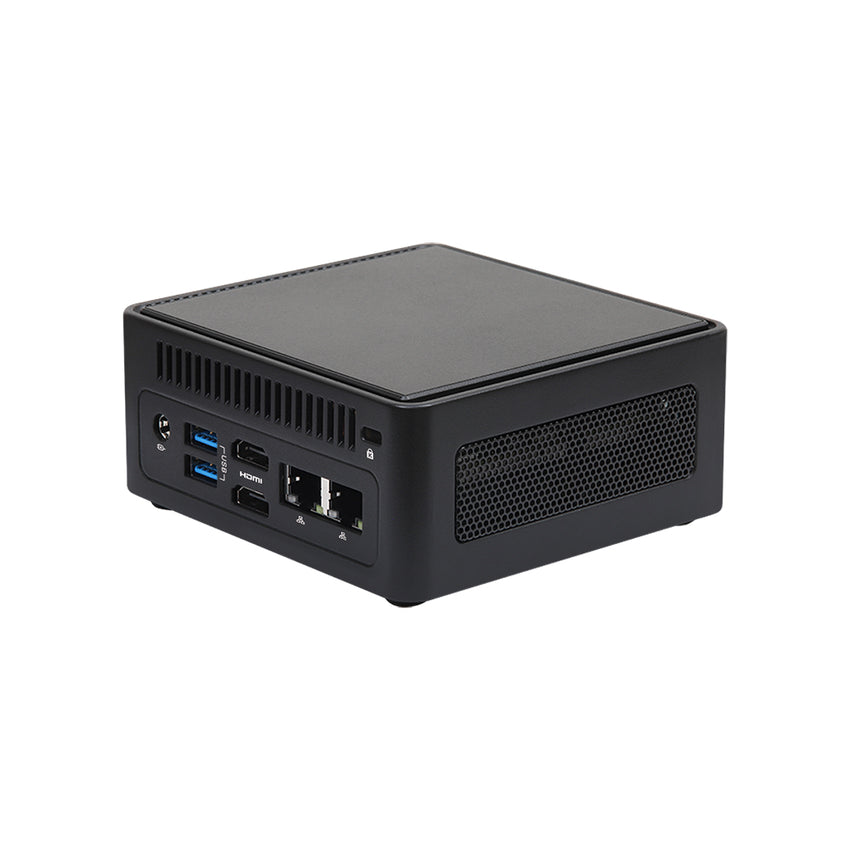

| Rear Panel I/O | 1 x 12-24V DC-IN 2 x USB 3.2 (Gen2) 2 x HDMI 2.1 TMDS 2 x RJ45 2.5GbE LAN |

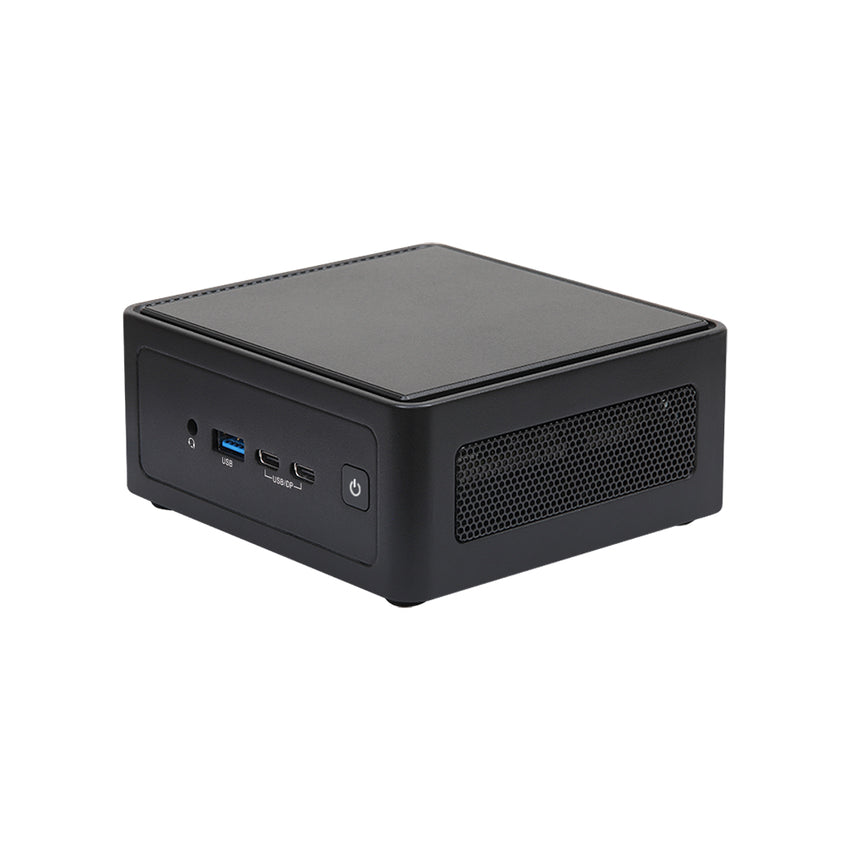

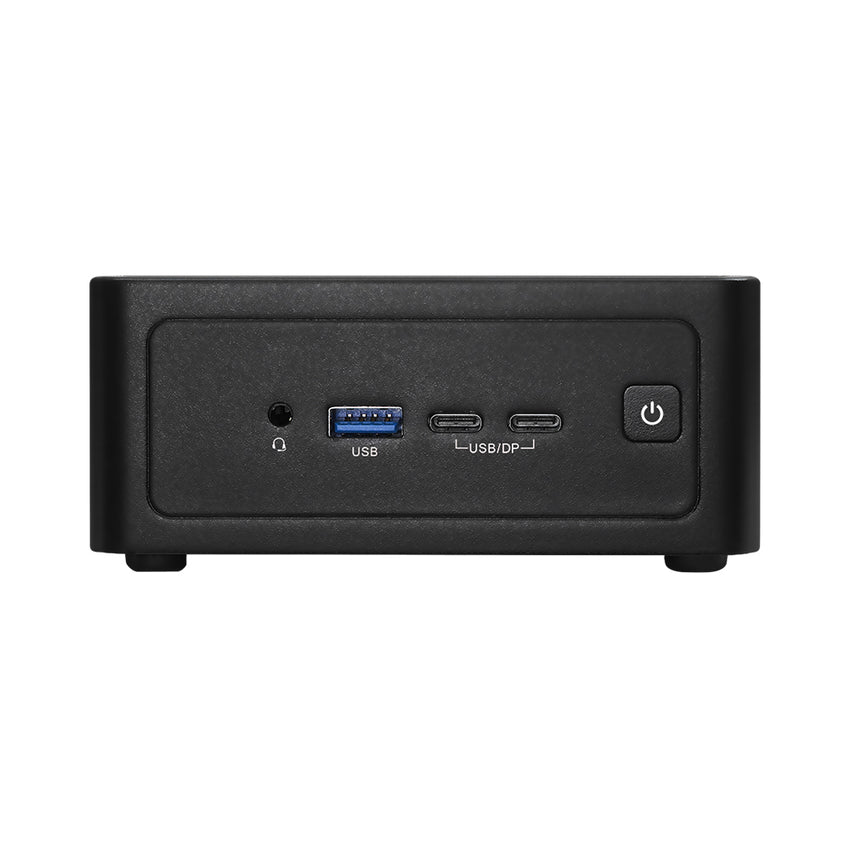

| Front Panel I/O | 1 x Audio I/O 1 x USB 3.2 (Gen2) 1 x USB 4/Thunderbolt 4 Type-C (Supports DP 2.1) 2 x USB 3.2 (Gen2x2) Type-C (Supports DP 1.4a) 1 x Power Button with LED |
| Drive Support | 1 x 2.5" SATA Drive Bay 1 x M.2 2280/2242 slot (PCI-E 4.0 x4, M-Key) 1 x M.2 2242 slot (PCI-E 4.0 x4, M-Key) |
| OS Support | Windows 10 Windows 11 |
| Power Supply | 12-24VDC DC-IN 90W 19V Power Adapter |
| Case Dimensions | 117.5 x 110.0 x 49mm 4.63" x 4.33" x 1.93" (in inches) |
| Mounting | VESA Mount Bracket |
| Environmental | Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% (non-condensing) Non-Operating Humidity: 5% to 90% (non-condensing) |
| Compliance | CE, FCC |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: NUC BOX-125H R2
