Manufacturer	ASRock Industrial

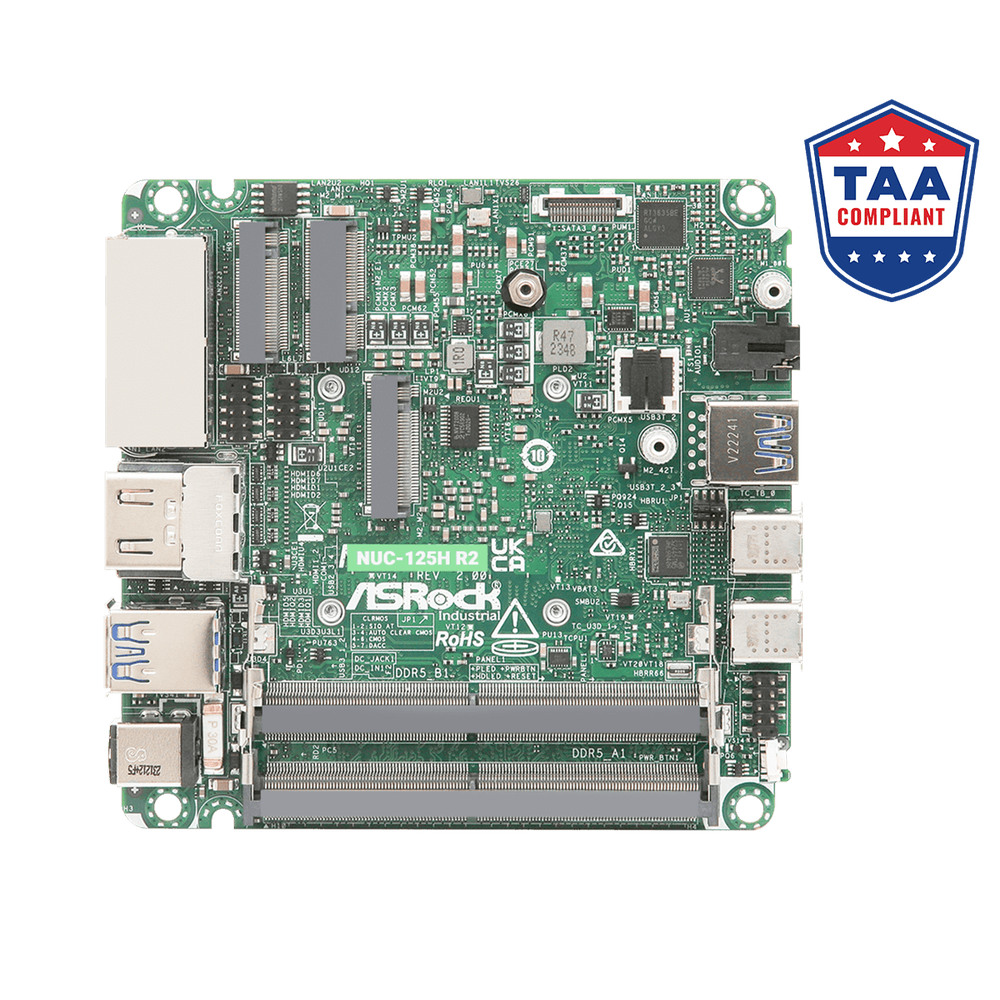

Part Number	NUC-125H R2
CPU	Intel® Core™ Ultra 5 125H Processor (Meteor Lake-H) 4P + 8E Cores Intel® PTT
Chipset	MCP AMI SPI 256 Mbit BIOS
Memory	2 x 262-pin SO-DIMM slots Maximum 96GB Capacity (48GB per DIMM) Dual Channel DDR5 5600 MHz
Video	Intel® Arc™ Graphics 2 x HDMI 2.1 TMDS Max Resolution: 4096x2160@60Hz DisplayPort 2.1 / 1.4a Max Resolution: 4096x2160@60Hz Supports Quad Display (includes 2 outputs from Type-C)
Audio	Realtek ALC256 High Definition Audio 1 x Headphone & Microphone Jack (Front)
Storage Technology	1 x SATA3.0 (6.0 Gb/s) 1 x M.2 Key M 2242 (PCIe Gen4 x4) for SSD 1 x M.2 Key M 2242/2280 (PCIe Gen4 x4) for SSD Intel® VMD RAID 0/1 (PCIe M.2 Key M x2)
Connectivity	LAN1: Intel® I226LM 2.5 Gigabit Ethernet LAN2: Intel® I226V 2.5 Gigabit Ethernet
Expansion Slots	1 x M.2 Key E 2230 (PCIe x1, USB 2.0, CNVi) for Wireless
Security	Intel® PTT Supports Intel® vPro
Power	12V ~ 24V DC-In Jack AT / ATX Supported

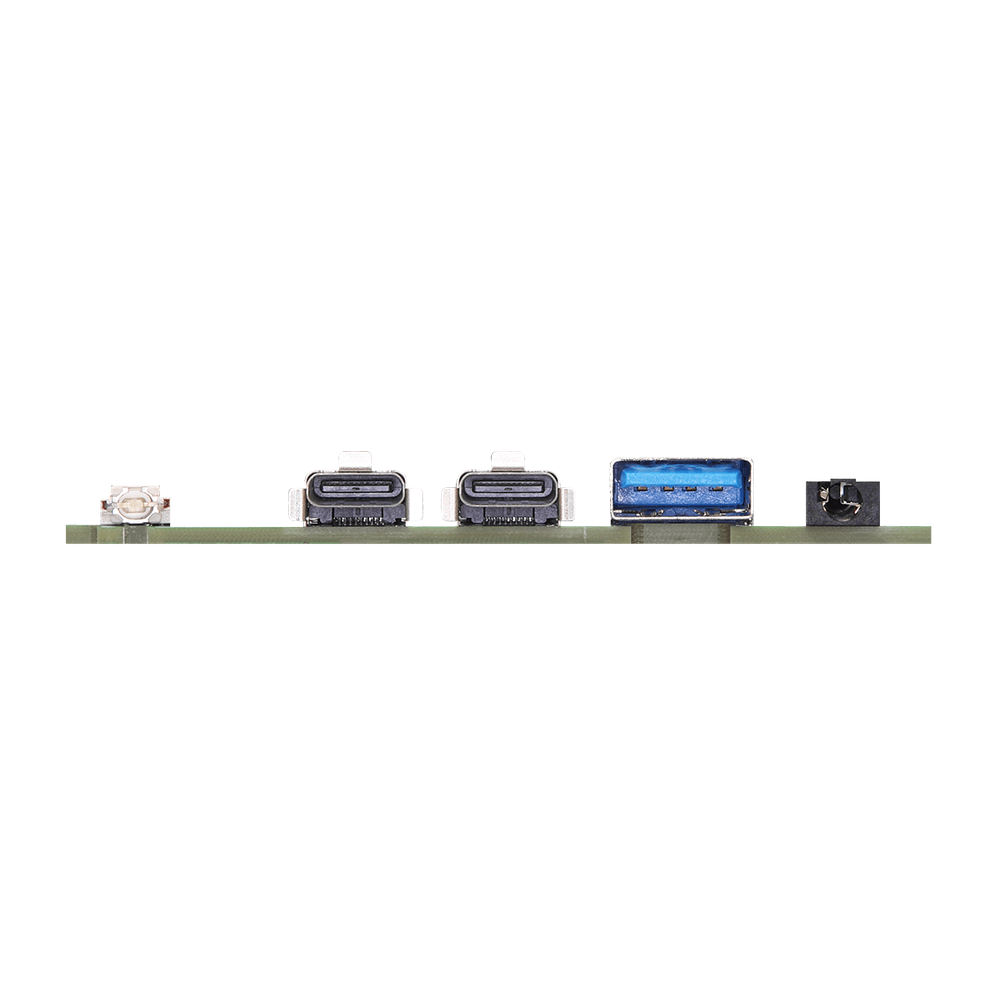

Front I/O	1 x USB 3.2 Gen2 (Type-A) 1 x USB4 / Thunderbolt™ 4 (5V/3A, Supports DP 2.1 display output) 1 x USB 3.2 Gen2 x2 (Type-C, 5V/3A, Supports DP 1.4a display output) 1 x Audio I/O (Headphone & Microphone)

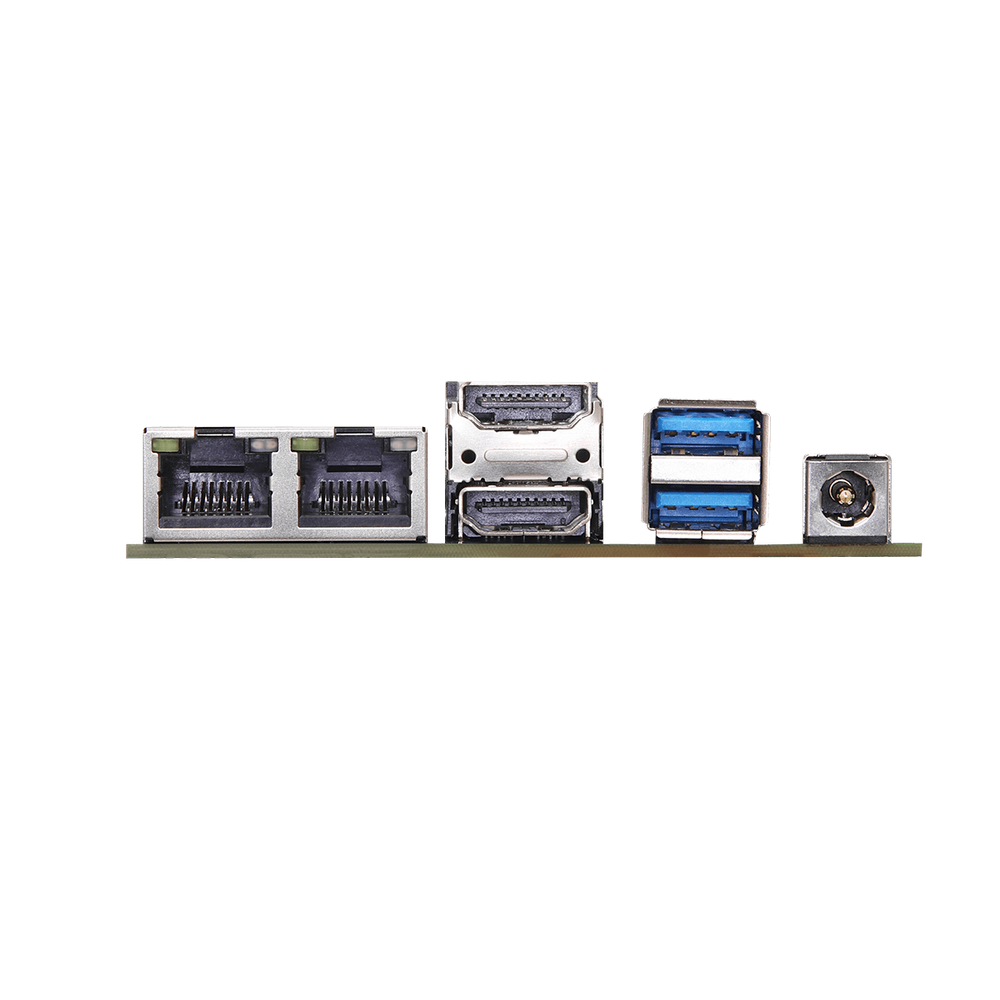

Rear I/O	2 x RJ-45 2.5 Gigabit LAN 2 x USB 3.2 Gen2 (Type-A) 2 x HDMI 2.1 TMDS 1 x DC Jack
Onboard I/O Headers	2 x USB 2.0 (1 x 2.00mm pitch header, supports 2 ports) 1 x COM (RS-232/RS-422/RS-485)
Watchdog Timer	Output: From Super I/O to drag RESETCON# Interval: 256 Segments, 0~255 sec
Form Factor	NUC 4.09" x 4.02" x 1.5" 104 x 102 x 38mm
Environmental	Operating Temperature: -20°C to 70°C (-4°F to 158°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% (non condensing) Storage Humidity: 5% to 90% (non condensing)
Compliance	TAA Compliant
Warranty	1-Year Manufacturer's Limited Warranty
