Product ID |
NML-SM8CTLN4FA |
CPU |
Intel Xeon D-1541 2.7 GHz 8 core / 16 Threads 45W TDP, 12MB Cache |
Chipset |
SoC |
Memory |
4 x 288-pin DDR4 DIMM Supports up to 128GB DDR4 ECC RDIMM Supports up to 64GB DDR4 ECC/non-ECC UDIMM 1866/1600MHz @ 1.2V DIMM Sizes: 32GB, 16GB, 8GB, 4GB |
Video |
Aspeed AST2400 BMC |
Storage Technologies |
6 x SATA3 6Gb/s Ports RAID 0,1,5,10 RSTe M.2 2242/2280 slot (PCIe or SATA MUX) SATA DOM |
Drive Support |
2 x 2.5" Drives 1 x M.2 2242/2280 slot (M Key, PCI-E 3.0 x4 or SATA) |
Connectivity |
2 x Intel i350-AM2 GbE LAN 2 x SoC 10GBase-T LAN 1 x Realtek RTL8211E PHY Dedicated IPMI |
Expansion Slots |
1 x PCI-E x16 (3.0) *Inaccessible |

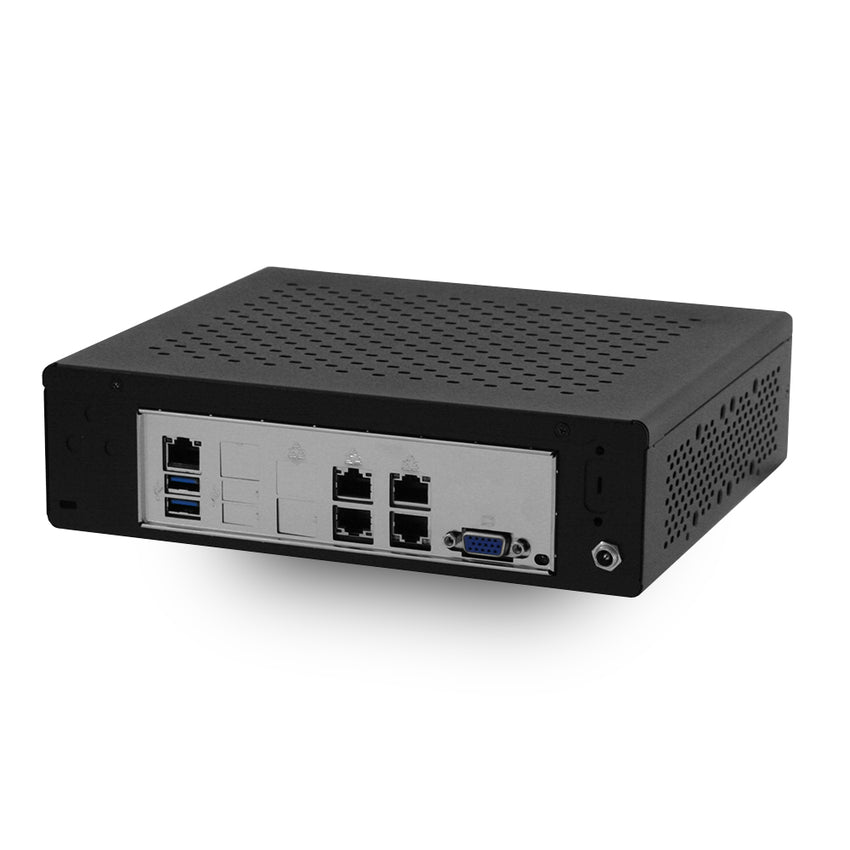

Rear Panel I/O |
1 x RJ45 Dedicated IPMI 2 x USB 3.0 2 x RJ45 GbE LAN 2 x RJ45 10GbE LAN 1 x VGA |

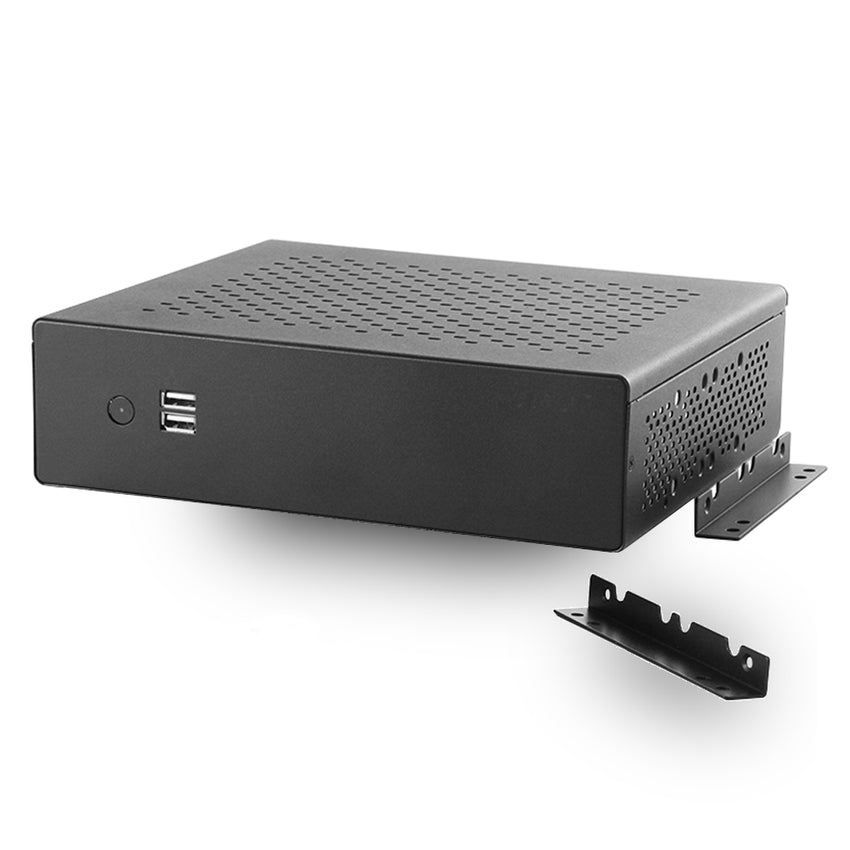

Front Panel I/O |
1 x Power Button with LED 2 x USB 2.0 |
Fan Support |
1 x 40x10mm Fan installed Supports up to 3 additional fans |
Power Supply |
On-Board 12V DC-IN (Internal) 80W 12V Locking Universal AC-DC Adapter (110/220V) |
Case Dimensions |
228.4mm x 194.4mm x 61.8mm 9" x 7.7" x 2.5" |
Mounting |
Wallmount Bracket Optional VESA Mounting Bracket |
Warranty |
1-Year Warranty on Parts and Labor |
