| Product ID | NDL-AR151DM557 |
| CPU | Intel CeleronĀ J1900 2.00 - 2.42GHz Quad Core 4 Cores / 4 Threads 10W TDP, 2MB Cache, 64-bit |
| Chipset | SoC |
| Memory | 2 x 204-pin DDR3 SODIMM Maximum 8GB capacity Dual Channel Support 1333MHz |
| Video | Intel HD Graphics 688 - 854MHz Supports dual display HDMI 1.3a MAX Resolution: 1920 x 1200 VGA MAX Resolution: 1920 x 1200 LVDS MAX Resolution: 1920 x 1200 @ 60Hz (Dual Channel 24-bit) |
| Audio | Realtek ALC662/897 HD Audio |
| Storage | 2 x SATA2 3Gb/s |
| Connectivity | 1 x Realtek RTL8111G GbE |
| Expansion Slots | 1 x Mini PCIe slot (Half Sized, PCIe x1/USB 2.0) 1 x Mini PCIe (Full Sized, PCIe x1/SATA2/USB 2.0) 1 x PCI Express 2.0 x1 slotĀ (Inaccessible) |
| Power | 9 - 19V DC-IN External power jack (2.5/5.5mm) Alternate Internal 2-pin power connector Note: Operate with only 1 DC power source |

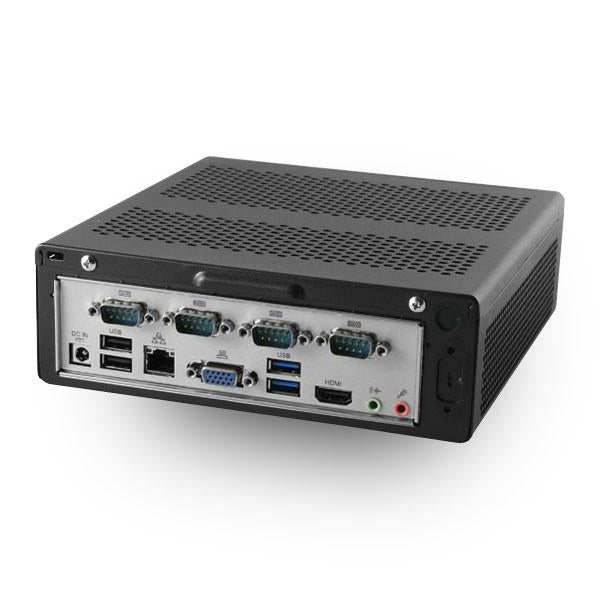

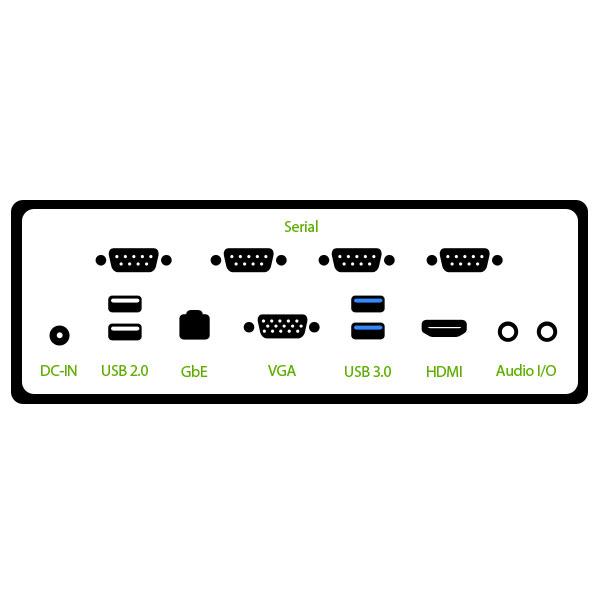

| Rear Panel I/O | 1 x DC-IN 2 x USB 2.0 1 x RJ45 LAN 1 x VGA 2 x USB 3.0 1 x HDMI 2 x Audio I/O 3 x Serial RS-232 1 x Serial RS-232/422/485 |

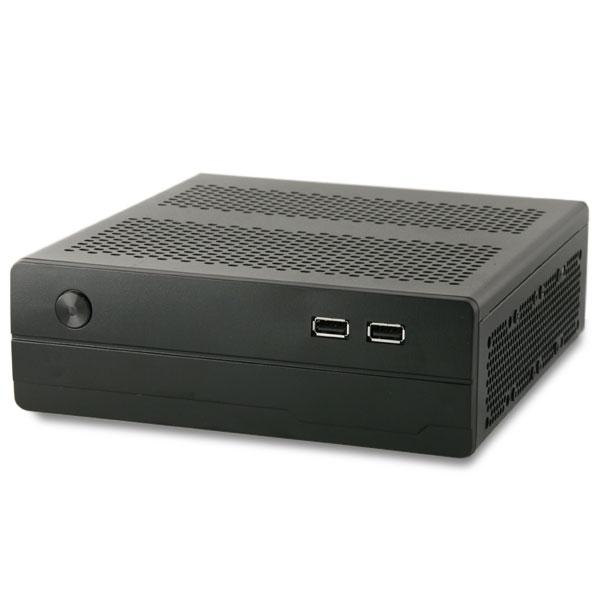

| Front Panel I/O | 2 x USB 2.0 1 x Power Switch w/ LED |
| Drive Support | 1 x mSATA and 1 x 2.5" SATA drive or 2 x 2.5" SATA Drive |
| Power Supply | On-board DC-DC Converter 60W 12V Universal AC-DC Adapter (110-240V) |
| Case Dimensions | 190mm x 196mm x 62mm 7.48" x 7.72" x 2.44" (in inches) |
| Mounting | VESA (100 x 100mm) Wall Mount Brackets |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: NDL-AR151DM557
